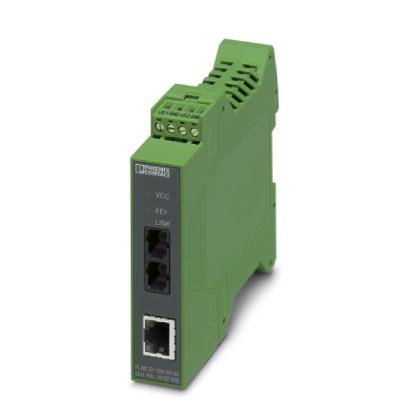

Phoenix Contact Fiber media converter FL MC EF 1300 SM SC FO converter
EAN:
Part number:
Item no:
Product type
Fiber media converter
Mounting type
DIN rail
Enclosure material
PA 6.6-FR
Connection
COMBICON
RJ45
SC-Duplex
Functions (FO)
FO converter
Datasheet (PDF)
Number
Total (€ 415.97 / piece)
€ 415.97
plus VAT.
Technical specifications
- Product type
Fiber media converter
- Mounting type
DIN rail
- Manufacturer
Phoenix Contact
- Enclosure material
PA 6.6-FR
- Connection
COMBICON
RJ45
SC-Duplex
- Functions (FO)
FO converter
- Supply voltage (num.)
24 V DC
- Supply current
100 mA
- Interfaces
Ethernet
- Protection class
IP20
- Factory colour
Green
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+65 °C
- Compatible with
Fibre opics
- Manufacturer part #
2902856
- Content
1 pc(s)
- Connector type
Screw-lock latch
Socket, straight
22.6
99 mm
114.2 mm
Other
DC
TRUE
18-30 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 774462 Phoenix Contact Fiber media converter FL MC EF 1300 SM SC FO converter
User & Safety Instructions
User & Safety Instructions 774462 Phoenix Contact Fiber media converter FL MC EF 1300 SM SC FO converter
Description
FO converter with SC duplex fiber optic connection (1300 nm), for converting 10/100Base-T(X) to single-mode fiberglass (9/125 µm). Auto negotiation and auto MDI(X) function. Comprehensive link diagnostics. DIN-rail mountable, 18 ... 30 V DC supply.
