PIC PMC-1496S Reed switch 1 change-over 150 V DC, 140 V AC 1 A 20 W
EAN:
Part number:
Item no:
Product type
Reed switch
Contact type
1 change-over
Switching voltage (max.)
150 V DC
140 V AC
Switching current (max.)
1 A
Connection
Solder pins
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Highlights & Details
PIC PMC-1496S Reed switch 1 change-over 150 V DC, 140 V AC 1 A 20 W
Our service for you
Technical specifications
- Product type
Reed switch
- Type
PMC-1496S
- Water activity (max.)
20
- Water activity (min.)
15
- Contact type
1 change-over
- Contact material
Rh (Rhodium)
- Switching voltage (max.)
150 V DC
140 V AC
- Switching current (max.)
1 A
- Max. switching capacity
20 W
- Connection
Solder pins
- Enclosure material
Glass
- Max. temperature
+130 °C
- Min. temperature
-40 °C

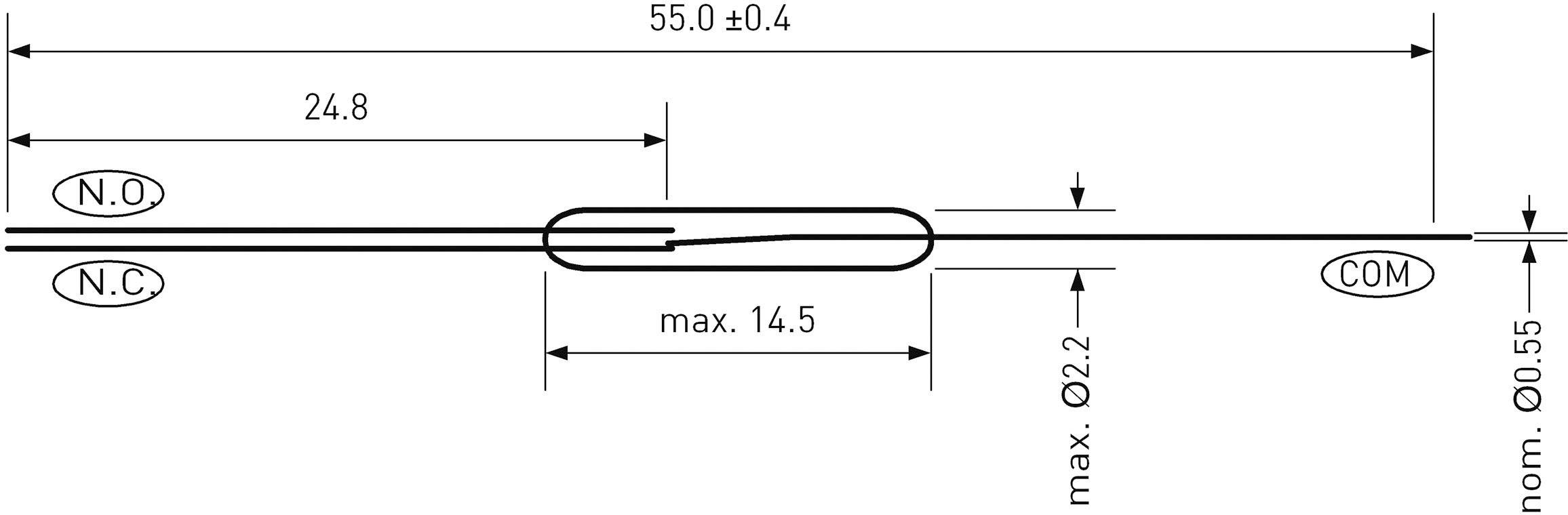

- Dim. (add. text)
Casing
- Length
14.5 mm
- (Ø)
2.2 mm
- Dim
(Ø x L) 2.2 mm x 14.5 mm (Casing)
- RoHS-compliant
Yes
- Water activity
15 - 20
Documents & Downloads
Datasheet
Datasheet 506930 PIC PMC-1496S Reed switch 1 change-over 150 V DC, 140 V AC 1 A 20 W
User & Safety Instructions
User & Safety Instructions 506930 PIC PMC-1496S Reed switch 1 change-over 150 V DC, 140 V AC 1 A 20 W
Information
Information 506930 PIC PMC-1496S Reed switch 1 change-over 150 V DC, 140 V AC 1 A 20 W
Description
Economical standard reed switch with high durability and reliability.
