Name: Picotronic Laser module Dot Red 1 mW DDI 635-1-24 (12x45)-C 3000
Brand: Picotronic
SKU: 1283395
Availability: InStock

A small, cylindrical, black camera with a cable, typically used for surveillance purposes or technical installations.

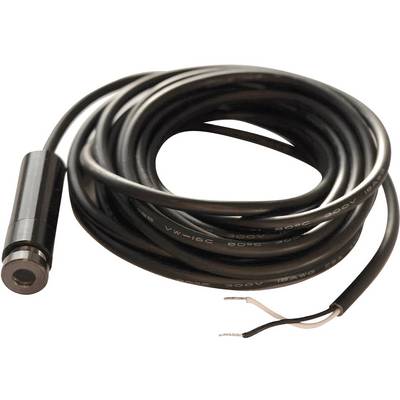

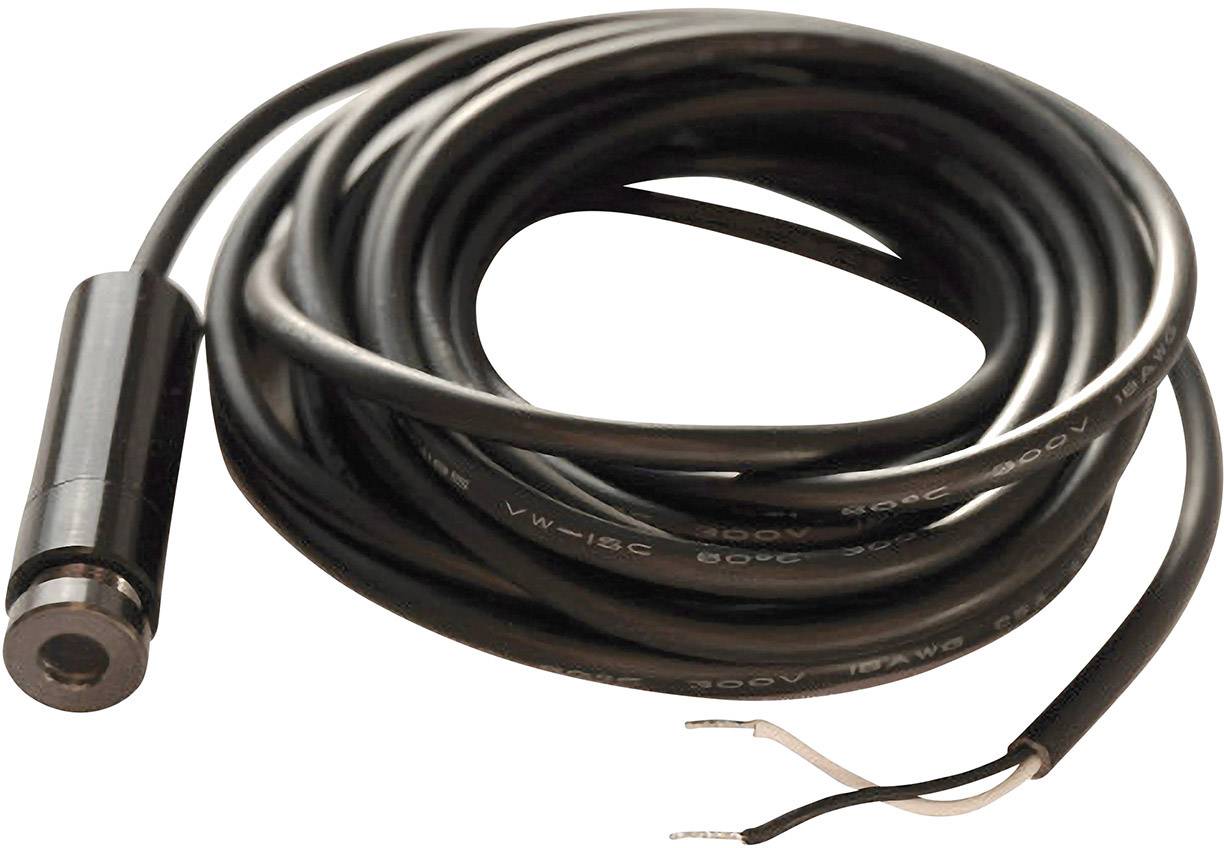

A long, black cable with exposed wires at one end and a cylindrical plug at the other end.

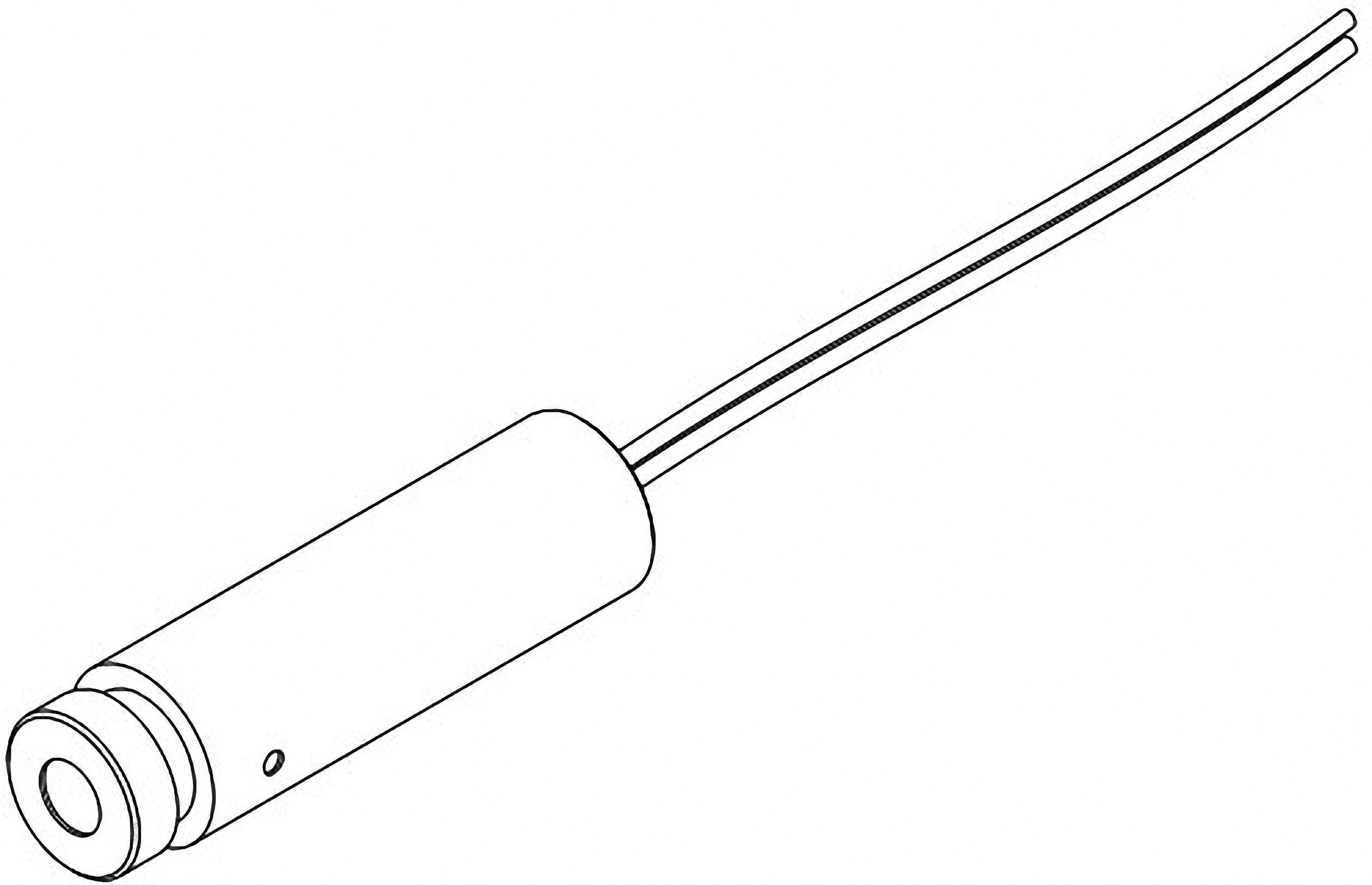

Drawing of a cylindrical component with two protruding wires, resembling an electronic sensor or diode.

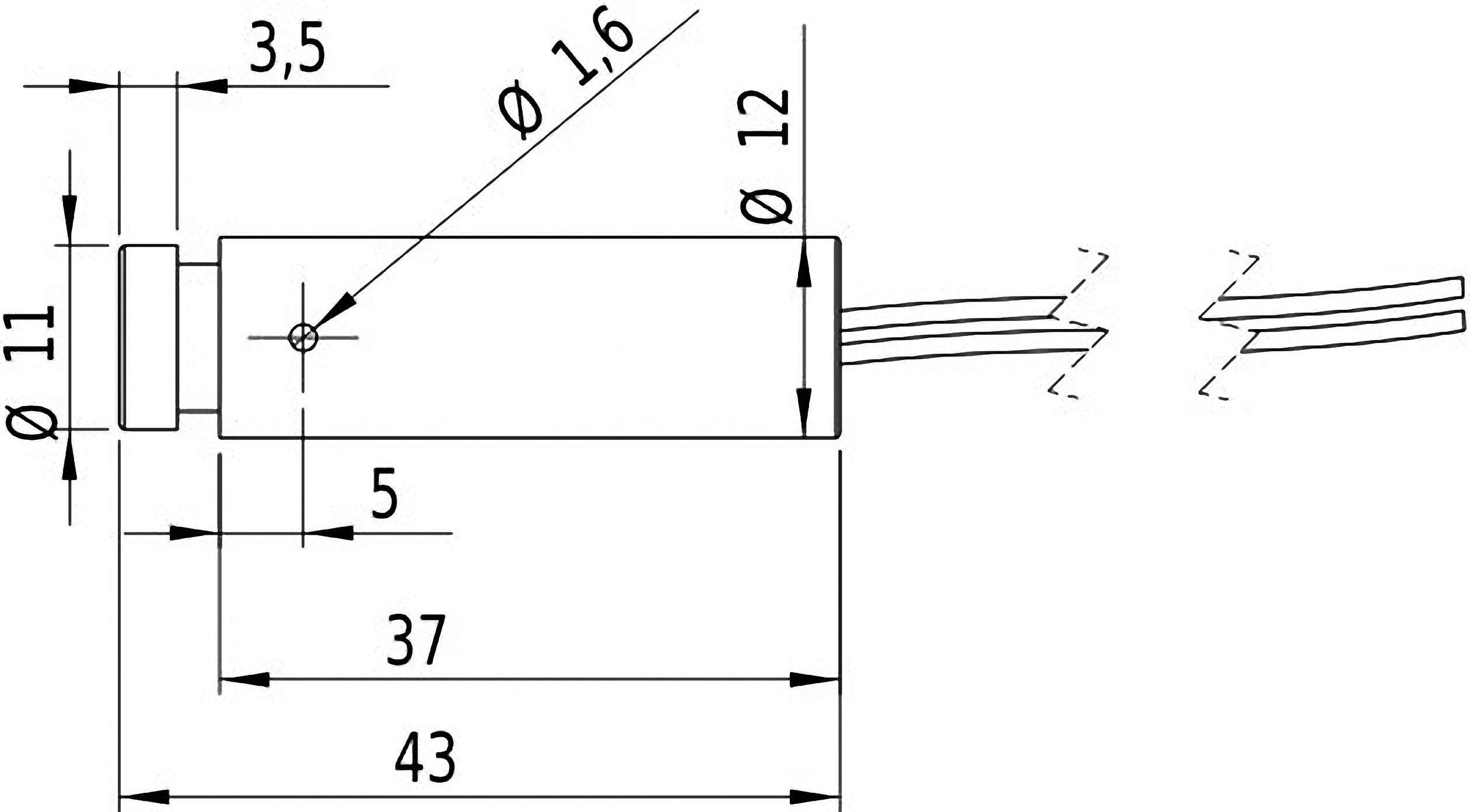

Diagram of a cylindrical electronic component with dimensions: length 43 mm, diameter 11 mm, cable connections on the right.

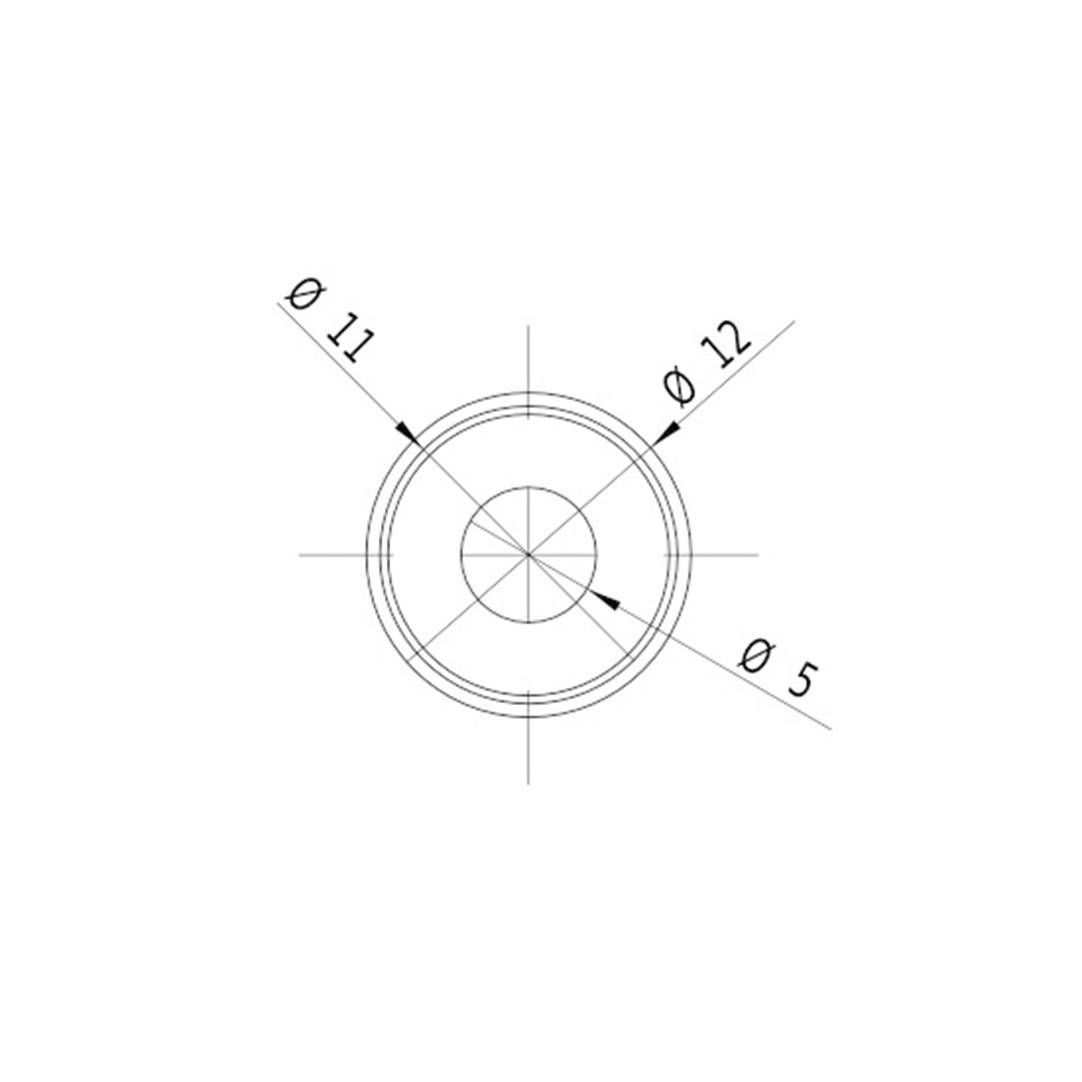

Technical Drawing: A circular object with three diameters, marked as Ø5, Ø11 and Ø12 respectively.

1/5

Product type

Laser module

Emission characteristics

Dot

Wavelength

635 nm

Power

1 mW

(Ø)

12 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

19 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 134.99 / piece)

€ 134.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Insulated point laser, red

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Product type: Laser module

Type: DDI 635-1-24 (12x45)-C 3000

Emission characteristics: Dot

Focus properties: Selectable focus

Factory colour: Red

Wavelength: 635 nm

: 1 mW

(Ø): 12 mm

Length: 45 mm

Laser category: 2

Beam divergence: 0.5 mrad

Clearance: 10 m

Operating voltage: 24 V DC

Operating current: 5 mA

Material: Aluminium

Dim: (Ø x L) 12 mm x 45 mm

Weight: 70 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C
