Name: Picotronic Laser module Dot Red 1 mW DG650-1-5 (7 x 14)
Brand: Picotronic
SKU: 1283413
Availability: InStock

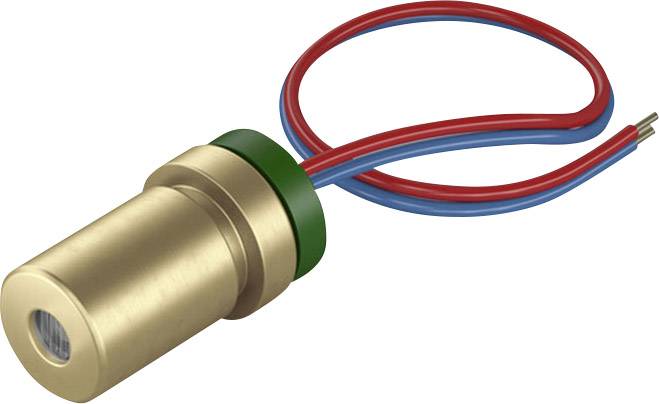

'A cylindrical laser diode module in a gold-coloured metal housing with red and blue connecting cables.'

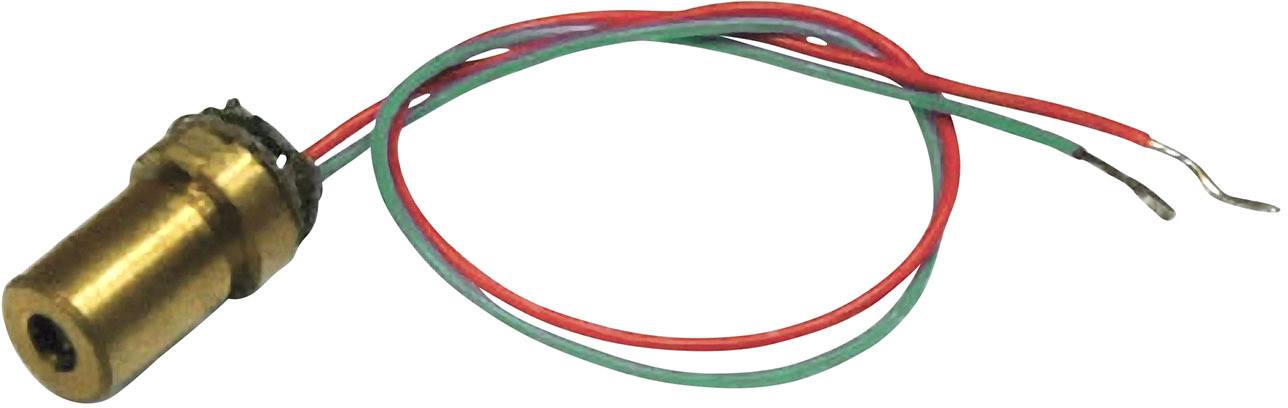

A small laser module with three coloured wires (red, green, blue) for electrical connection, suitable for technical applications.

Technical drawing of a cylindrical component with a diameter of 6 mm and a length of 12.3 mm. Two cables are connected.

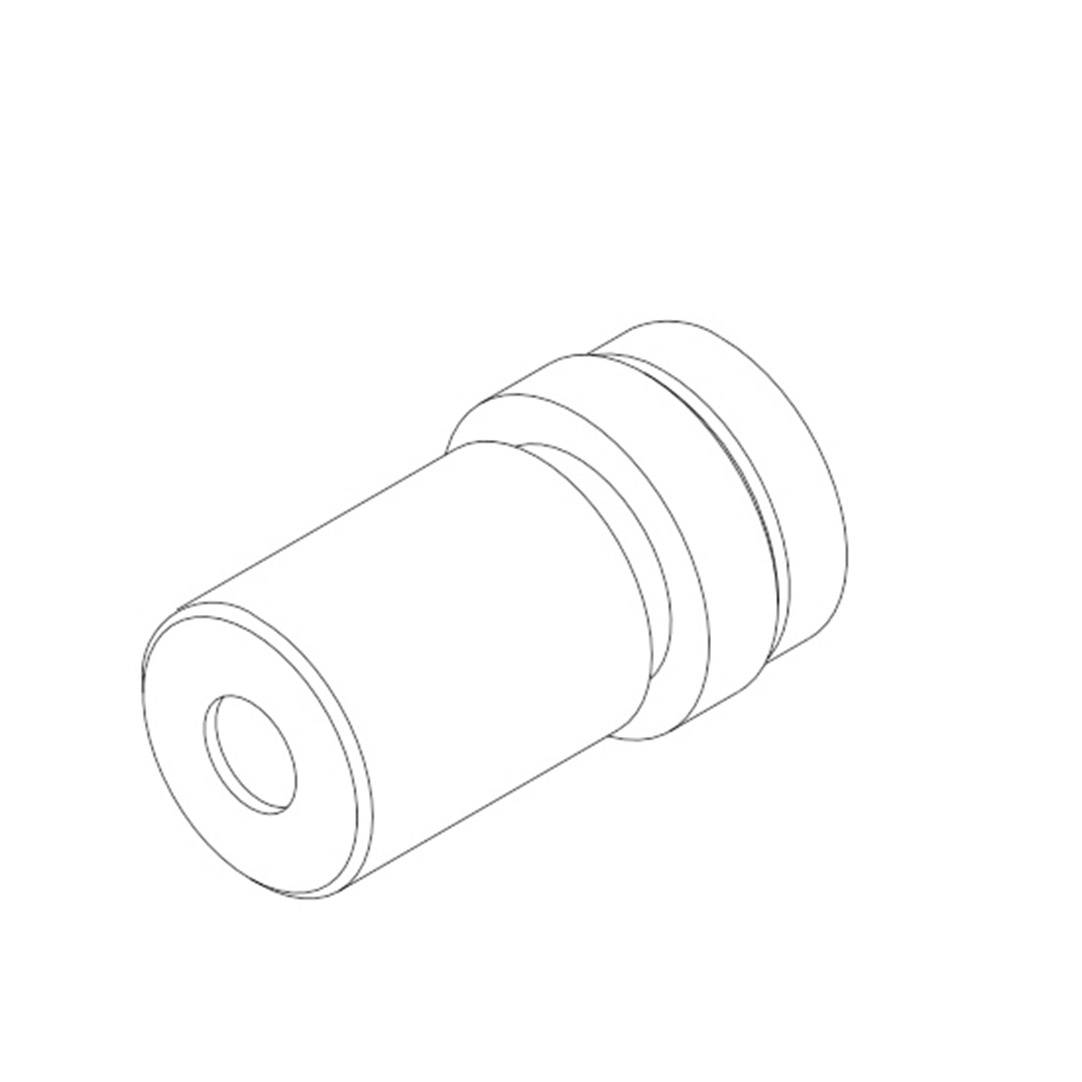

A technical drawing diagram shows a cylindrical adapter with open ends and a narrow ring in the centre.

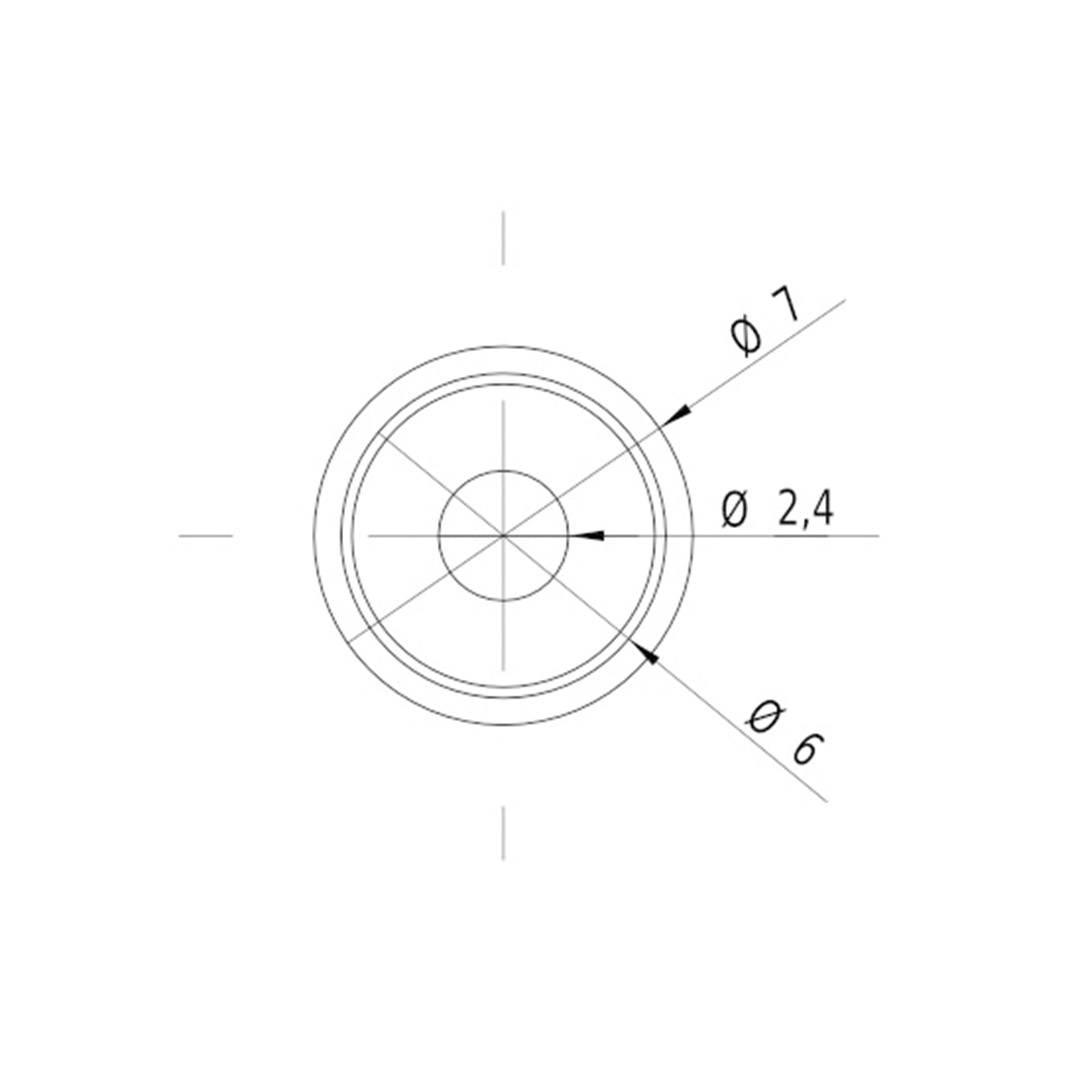

Technical drawing of a circle with three marked diameters: 7, 6 and 2.4. The lines point to the respective diameters.

1/5

Product type

Laser module

Emission characteristics

Dot

Wavelength

650 nm

Power

1 mW

(Ø)

7 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

50 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 30.99 / piece)

€ 30.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Point laser, red

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Product type: Laser module

Type: DG650-1-5 (7 x 14)

Emission characteristics: Dot

Focus properties: 5000 mm fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 1 mW

(Ø): 7 mm

Length: 14 mm

Laser category: 2

Beam divergence: 0.8 mrad

Clearance: 10 m

Operating voltage: 5 V DC

Operating current: 20 mA

Material: Brass

Dim: (Ø x L) 7 mm x 14 mm

Weight: 1.6 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C
