Renkforce 1488533 Ceiling PIR motion detector 360 ° Relay White IP20

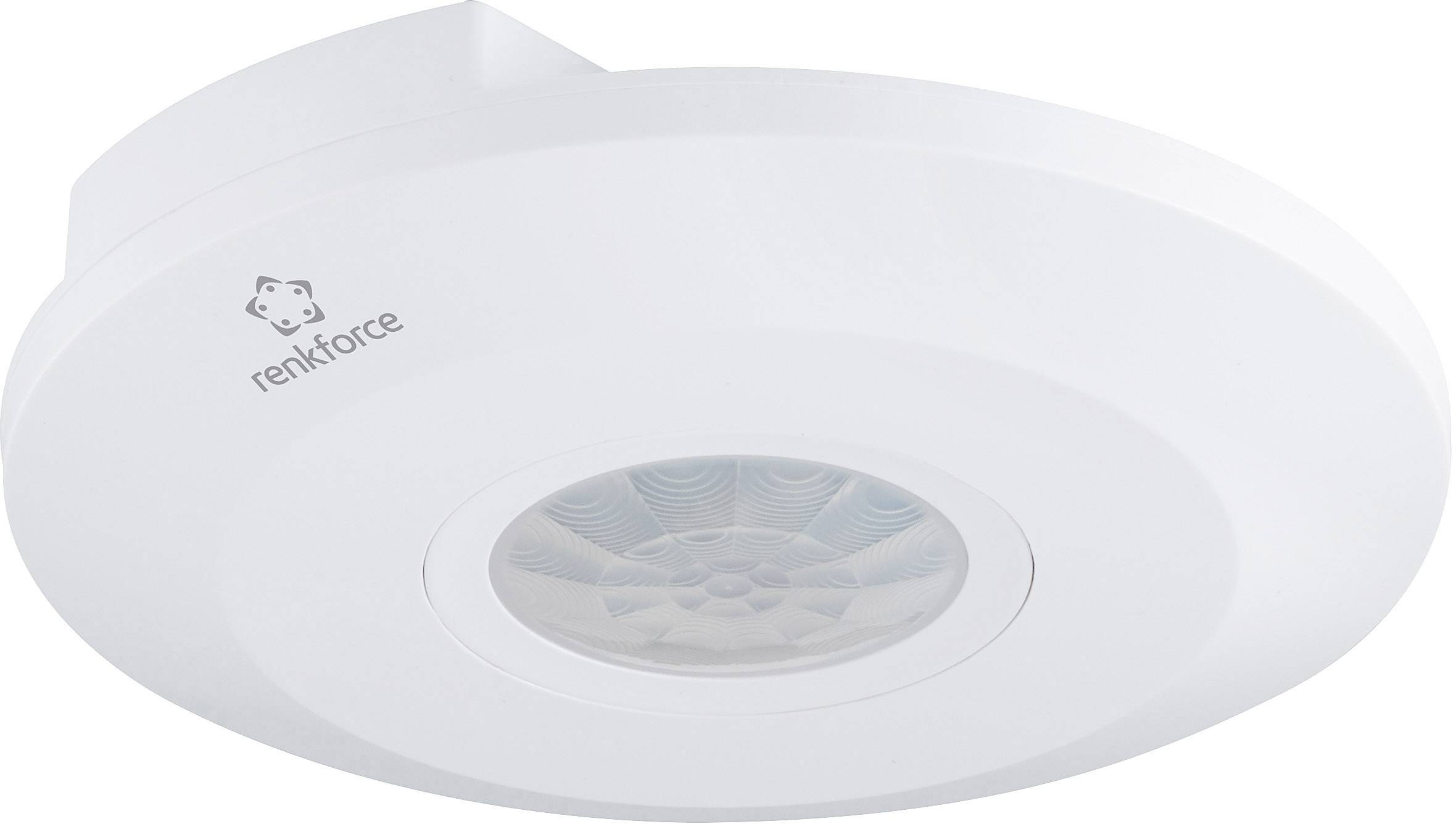

Ceiling-mounted white motion sensor by Renkforce for detecting movement within a room.

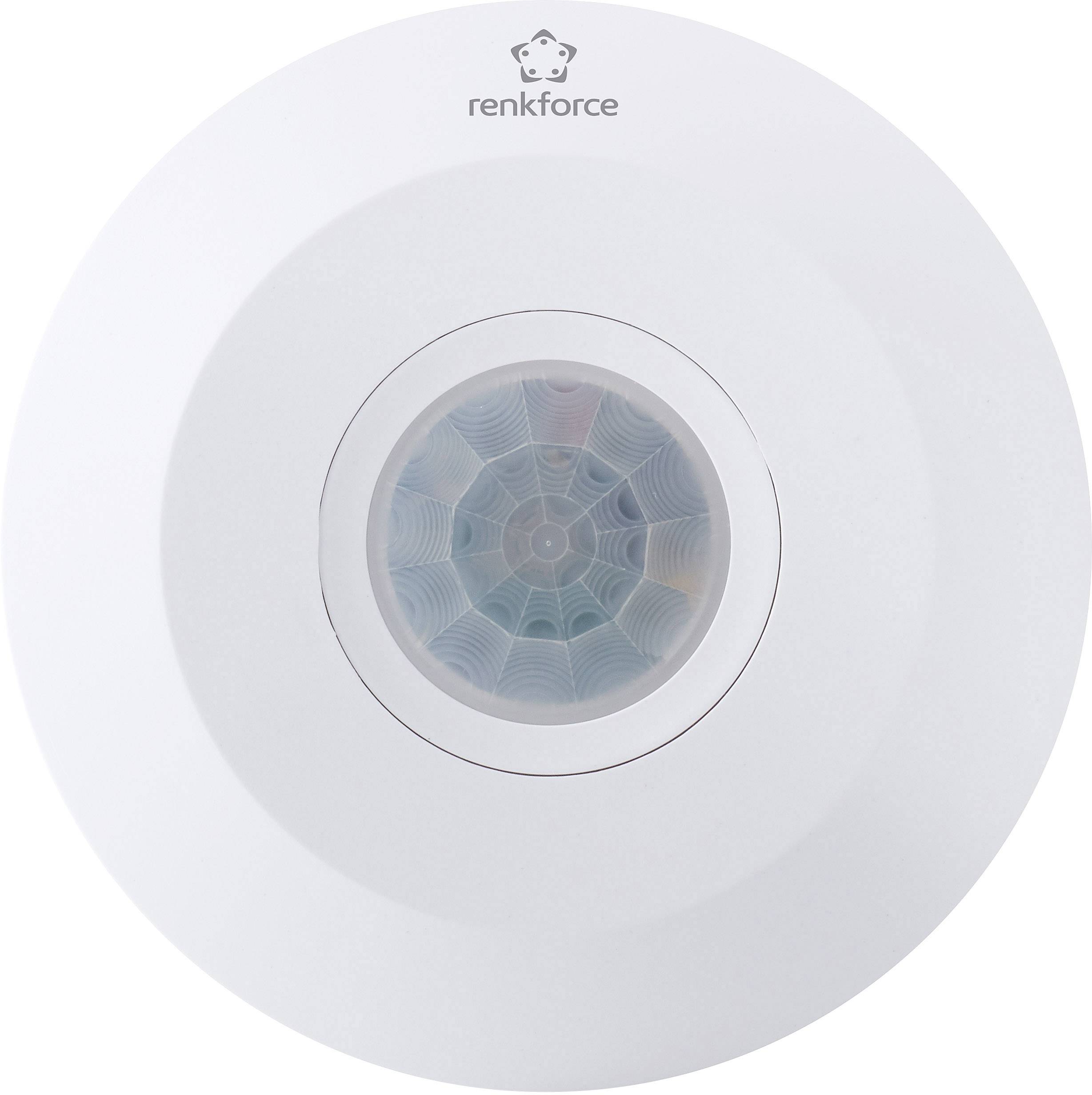

Renkforce round motion sensor, predominantly white, with a central, multi-layered pattern in the sensor area.

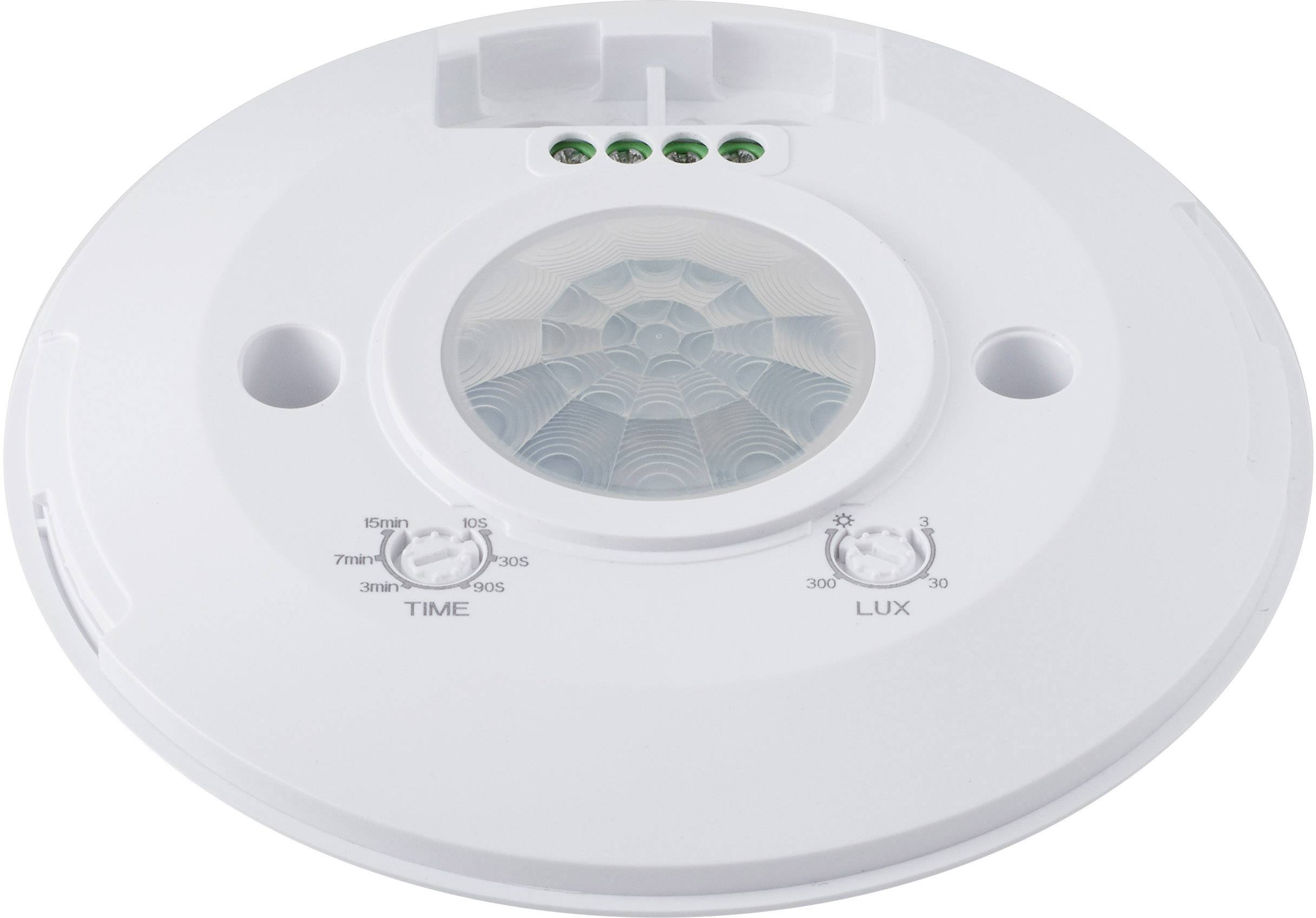

A round motion sensor with LUX and time settings. Four LEDs at the top indicate the operating status. The main colour is white.

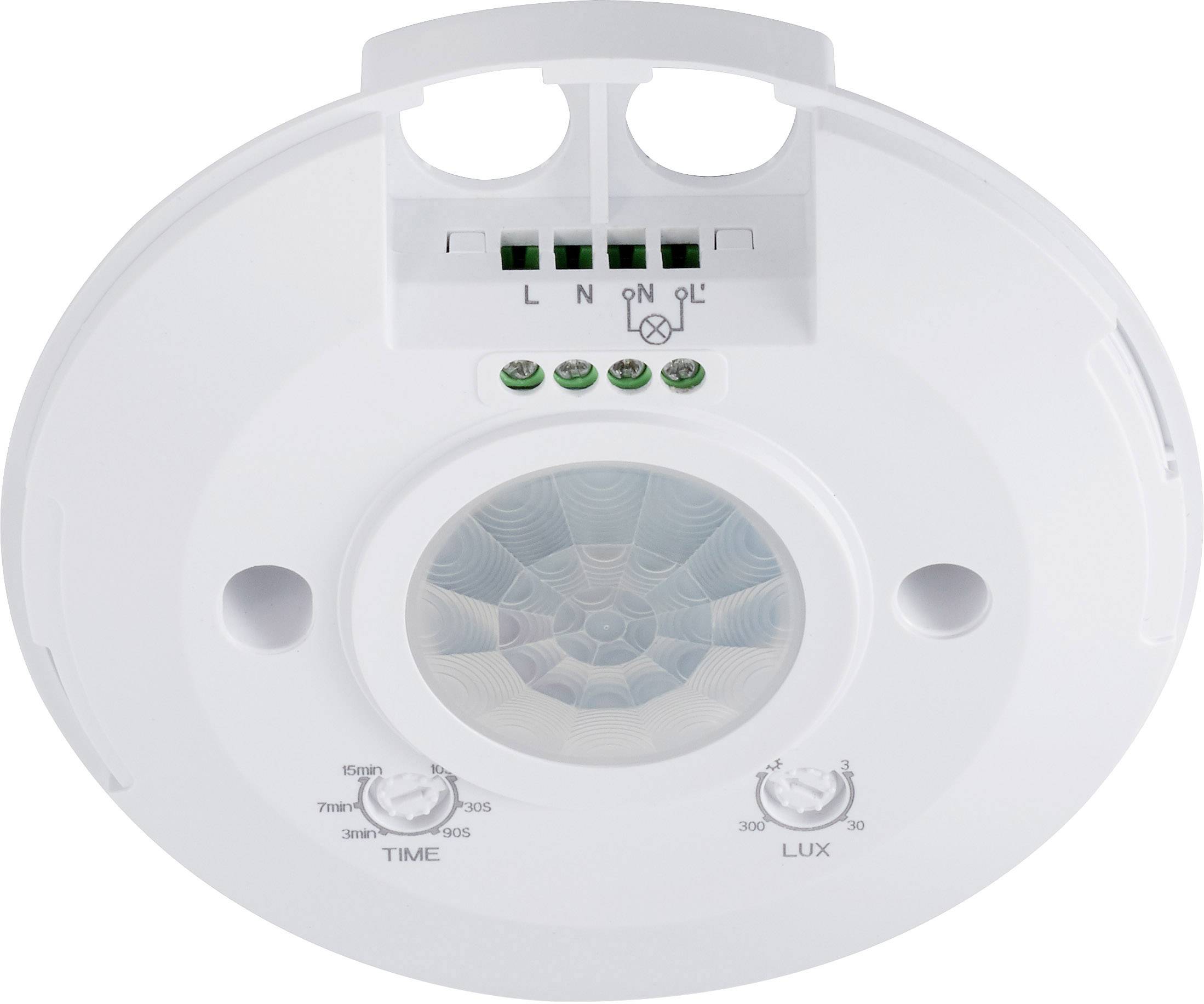

A circular motion sensor with connection terminals and settings for sensitivity (LUX) and time (TIME).
1/4
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
315 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 11.99 / piece)
€ 14.99
-20 %
€ 11.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

360° flash motion detector

  • Range 3 m max.
  • For LED-lamps up to max. 1000 W

Technical specifications

Product type

PIR motion detector

Detection angle

360°

3 m

Used at

Indoors

Mounting type

Ceiling

Operating voltage

230 V

Contact type

Relay

Switching capacity (energy saving bulbs)

1000 W

Switching capacity (light bulbs)

2000 W

Switching capacity (halogen bulbs)

2000 W

Switching capacity (LED)

1000 W

Switching capacity (light tubes)

1000 W

Twilight settings

3–2000 lx

Time settings

10s - 15 min

Factory colour

White

IP20

Operating temperature

-20 °C to +40 °C. °C

Height

24.3 mm

(Ø)

115 mm

Dim

(Ø x H) 115 mm x 24.3 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1488533 Renkforce 1488533 Ceiling PIR motion detector 360 ° Relay White IP20

Description

Thanks to the clever "all-round detection" function means that the lamp connected will always come on without fail. You can adjust the Lighting Time. This motion detector is therefore perfect for corridors and stairwells. At an installation height of 2.4 m, you'll get all-round 360° coverage over a radius of approx. 3 m.

This text is machine translated.
