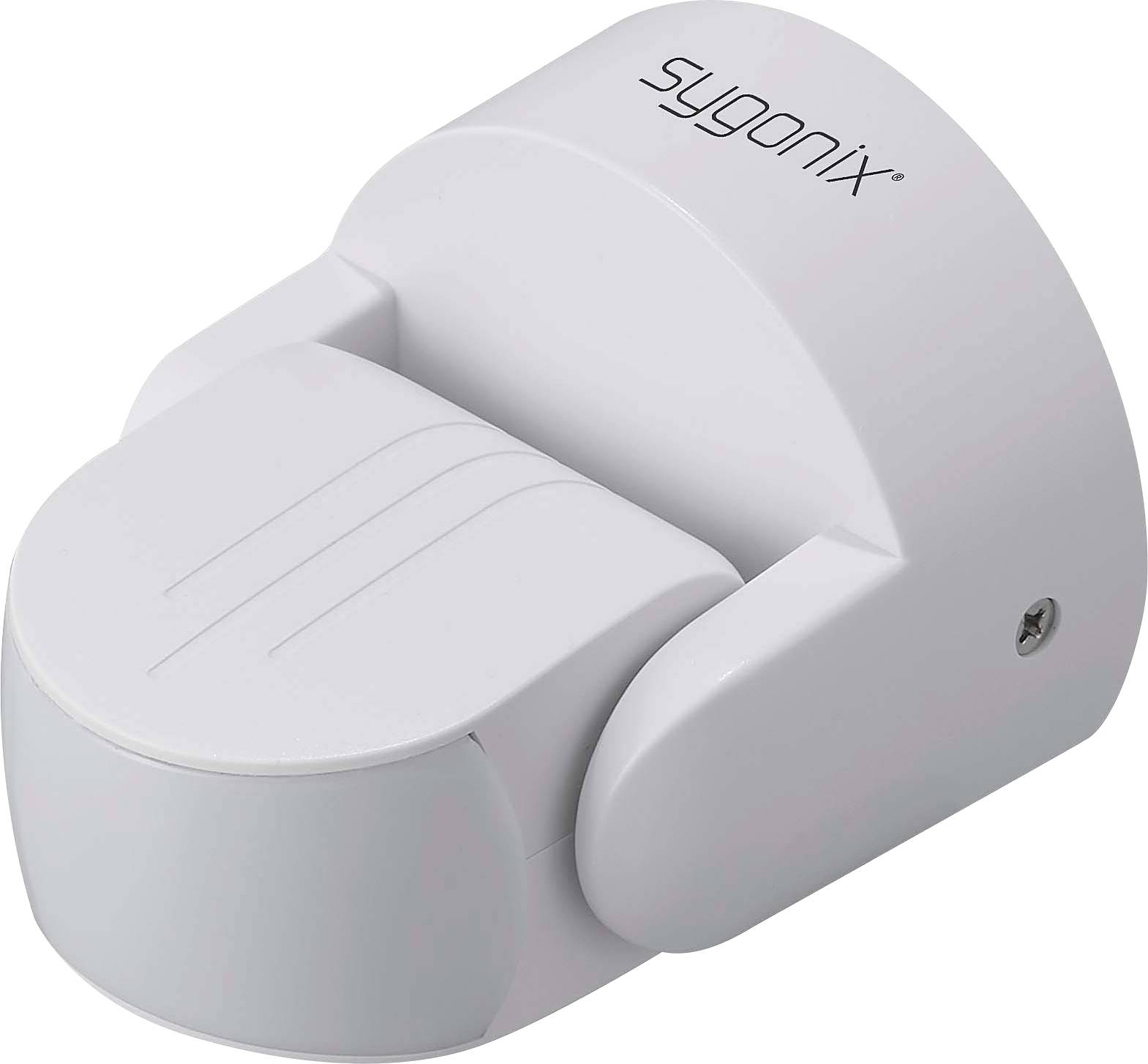

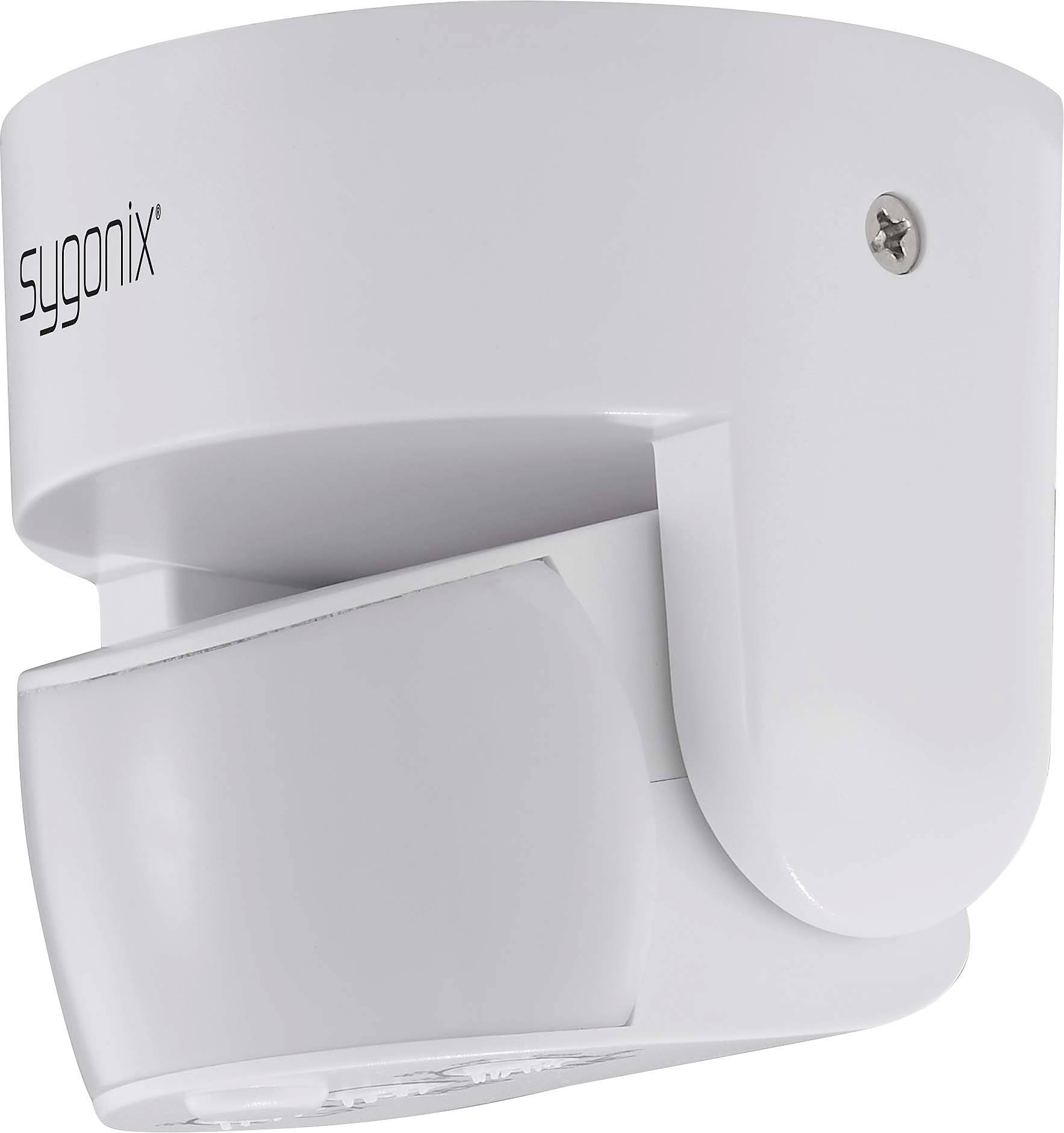

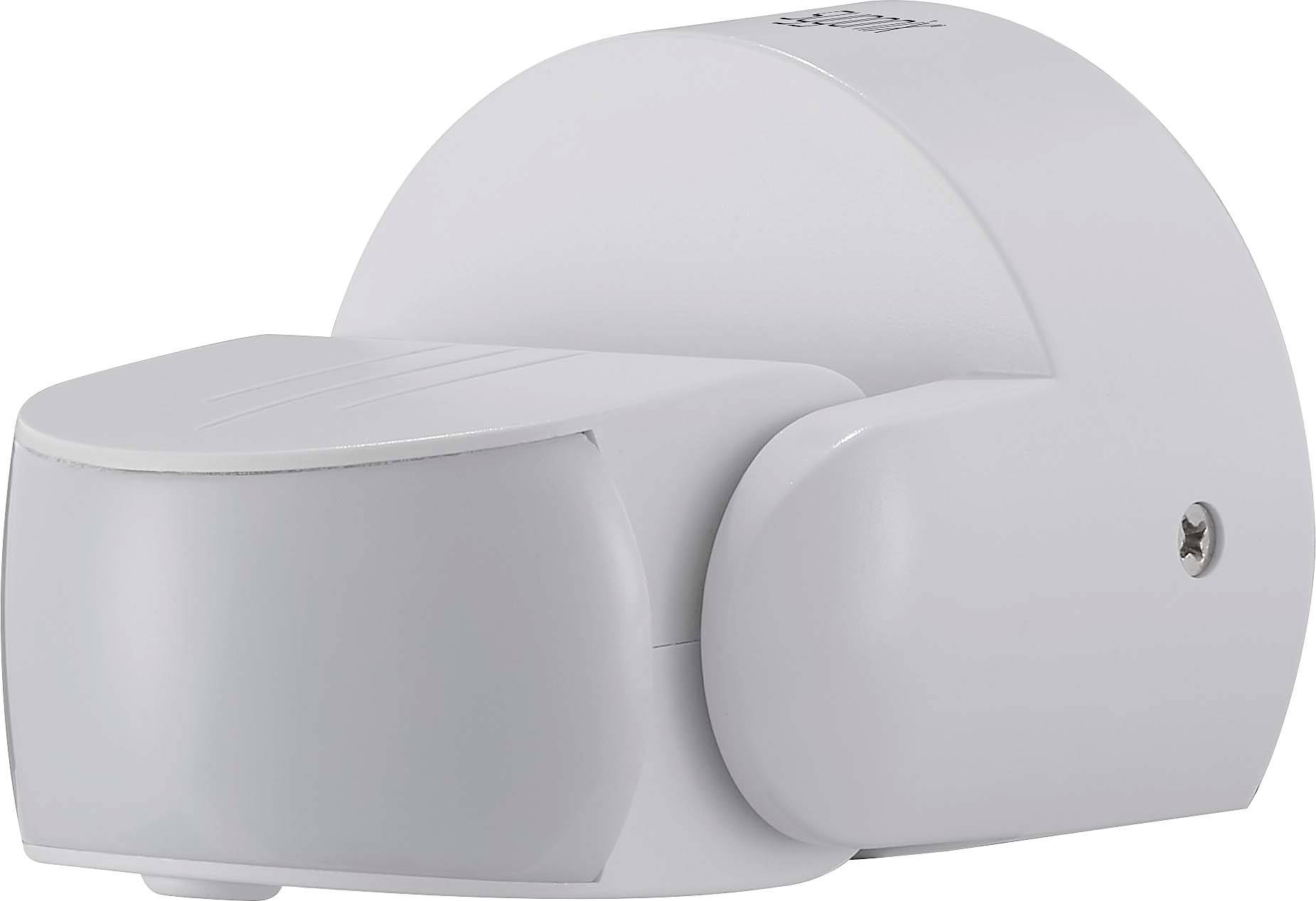

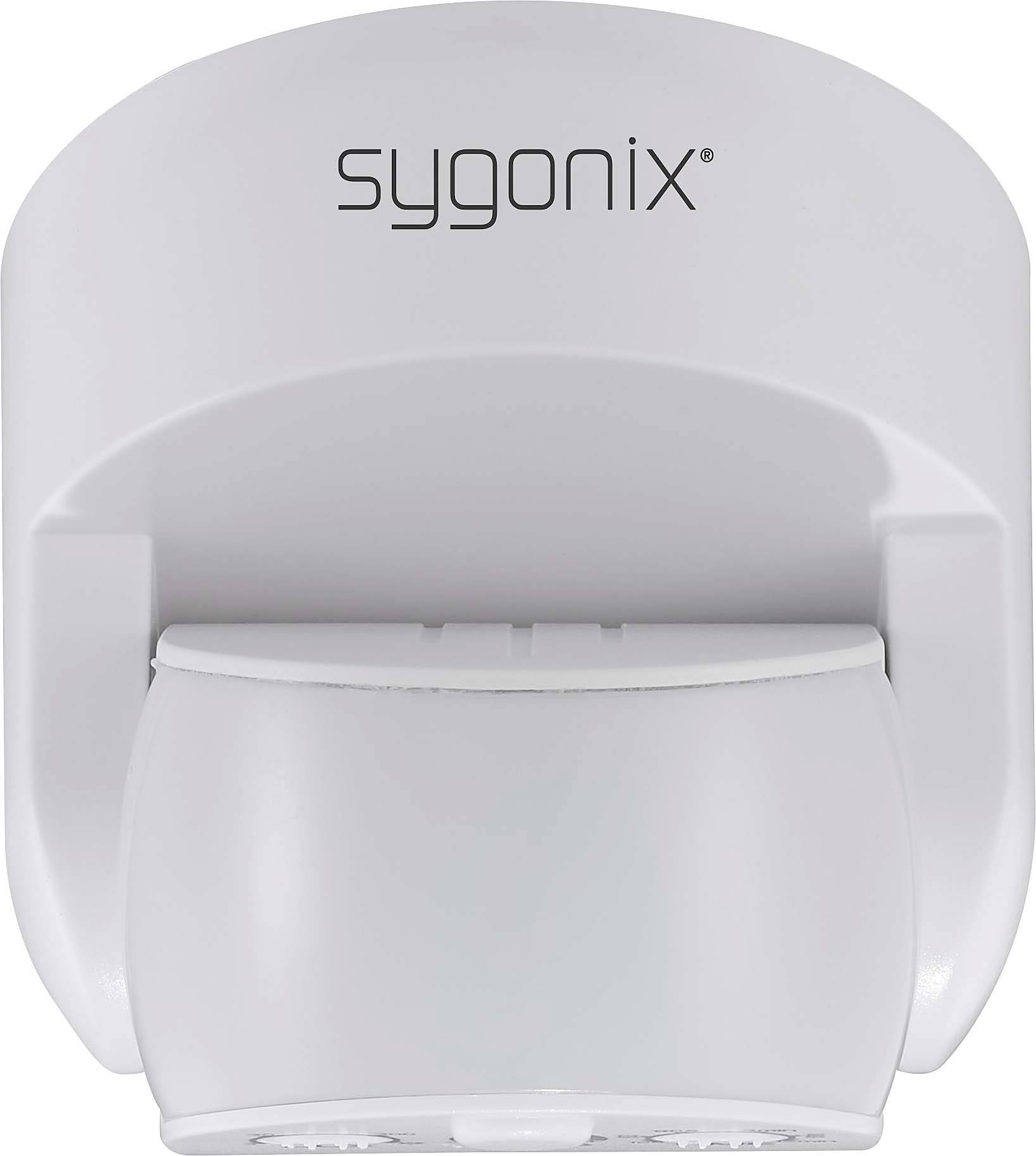

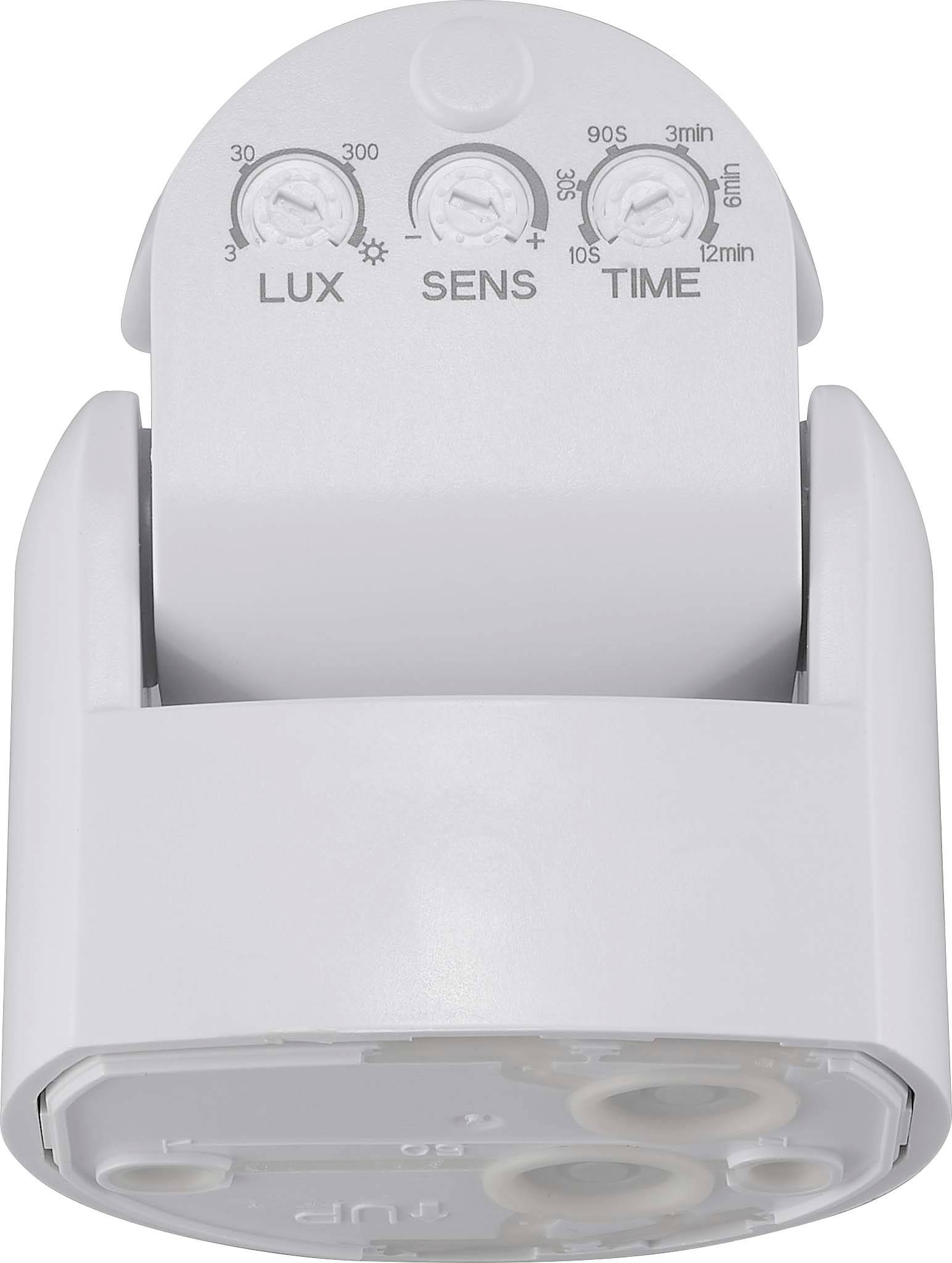

Sygonix SY-6440262 Wall, Ceiling HF motion detector 180 ° Relay White IP65
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
5% = € 0.53
€ 9.55
5
7% = € 0.74
€ 9.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Highlights & Details
High-frequency motion sensor, 180°, IP65
- Microwave motion sensor
- Switches up to 1200W
- Coverage angle: 180º
Technical specifications
- Nominal load: Max. 1200 W (light bulb), max. 500 W (power-saving bulb or LED)

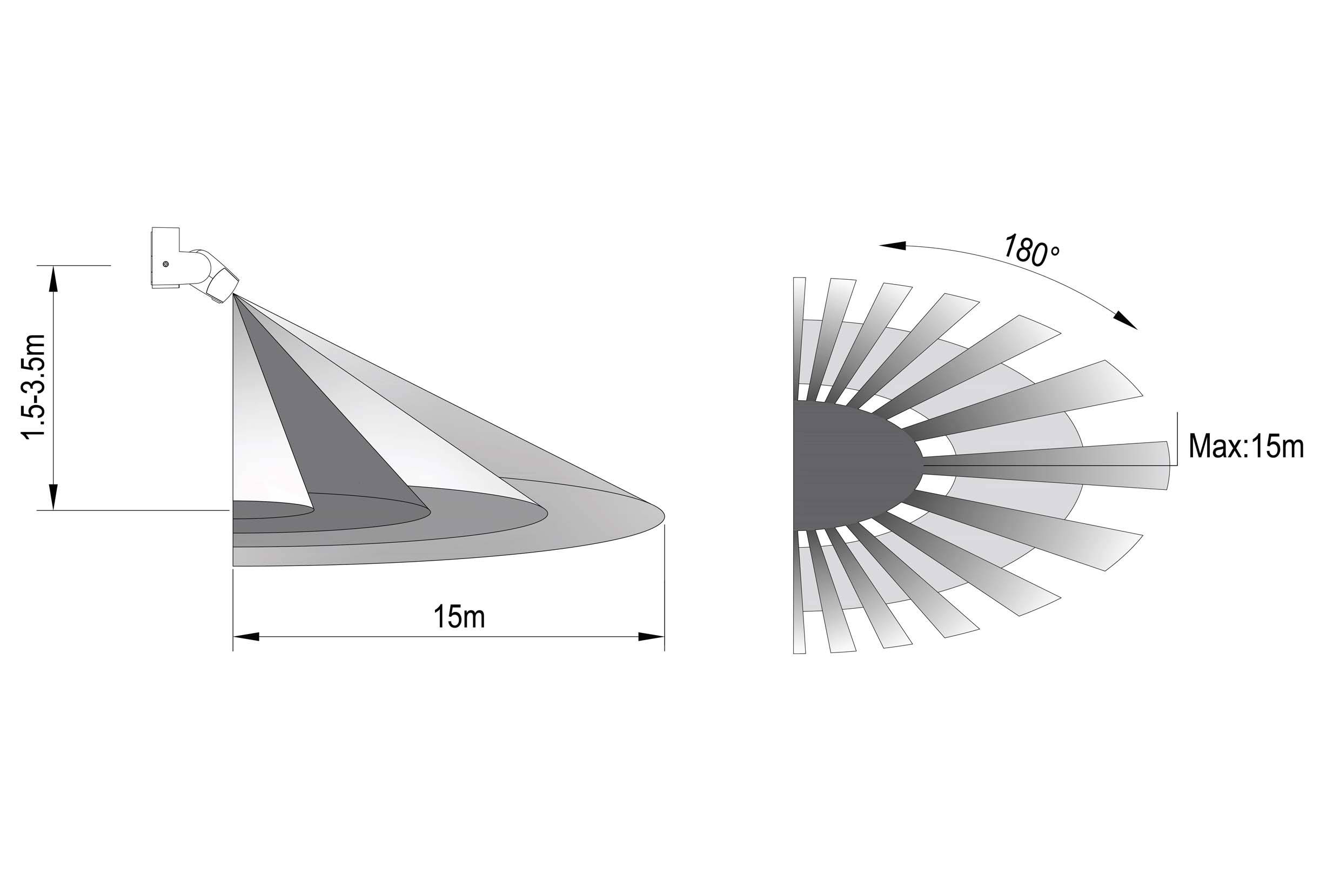

- Detection distance 5 - 15 m, adjustable (<24 °C)
- Time delay: 10 sec ± 3 sec to 12 min ± 1 min.
- Surrounding light <3 to 2000 Lux (adjustable)
- Installation height 1.5 - 3.5 m
- Product type
HF motion detector
- Detection angle
180°
15 m
- Used at
Indoors
Outdoors
- Mounting type
Wall
Ceiling
- Operating voltage
230 V AC
- Contact type
Relay
- Switching capacity (energy saving bulbs)
500 W
- Switching capacity (light bulbs)
1200 W
- Switching capacity (LED)
500 W
- Standby current consumption
0.9 W
- Twilight settings
3 - 2000 lx
- Time settings
10 s - 12 min
- Factory colour
White
IP65
- Length
92 mm
- Width
76 mm
- Height
63 mm
- Dim
(L x W x H) 92 x 76 x 63 mm
- Weight
130 g
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220131 Sygonix SY-6440262 Wall, Ceiling HF motion detector 180 ° Relay White IP65
Warranty Terms
Warranty Terms 3220131 Sygonix SY-6440262 Wall, Ceiling HF motion detector 180 ° Relay White IP65
Description
High frequency motion detector
High-frequency sensors do not react to temperature changes in the surroundings like conventional PIR motion detectors – they detect movements also through glass panes, doors or thin walls and can therefore be installed in a concealed way.
Flexible applications
The motion detector from Sygonix is suitable for incandescent lamps, energy-saving lamps as well as LED light elements and can be set to up to 1200 watts of power consumption depending on the application. Movements are registered at an angle of 180° and up to 15 meters away. Activation is performed almost without delay. Protected according to IP65, the Sygonix HF motion detector can also be mounted outdoors.
Including mounting accessories.
The motion detector is supplied with screws and plugs and operating instructions and is immediately ready for use.
This text is machine translated.
Features
- For incandescent lamps, energy-saving lamps and LED lights
- Detection distance: max. 15m
- IP65

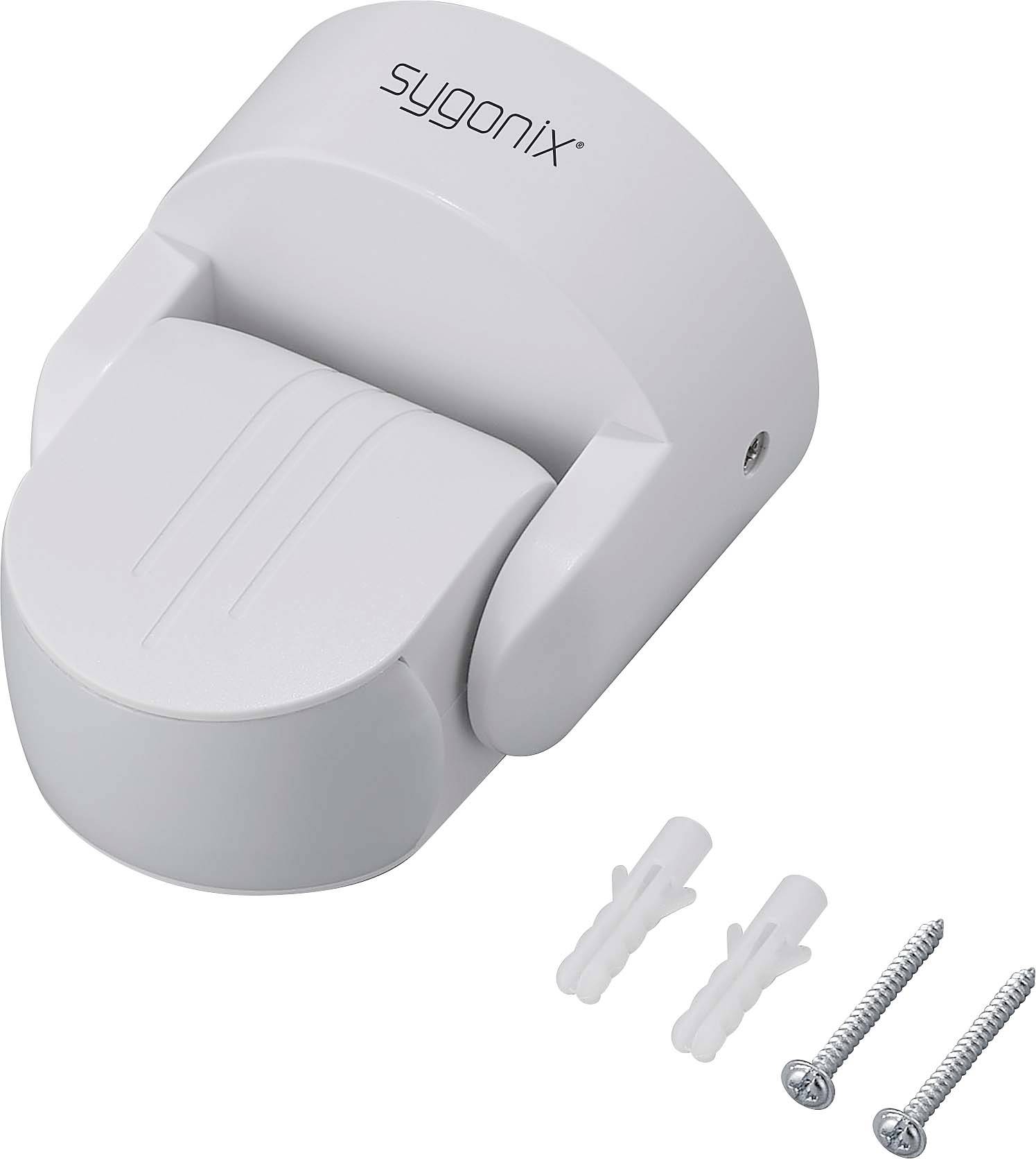

Scope of delivery
- Sensor
- 2x Screws
- 2x Dowels
- User manual
