Sygonix SY-6879924 Ceiling, Wall Occupancy sensor 180 °, 360 ° Relay White
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
5% = € 0.63
€ 11.97
5
7% = € 0.88
€ 11.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
Highlights & Details
Wall/ceiling-mounted 360° presence sensor

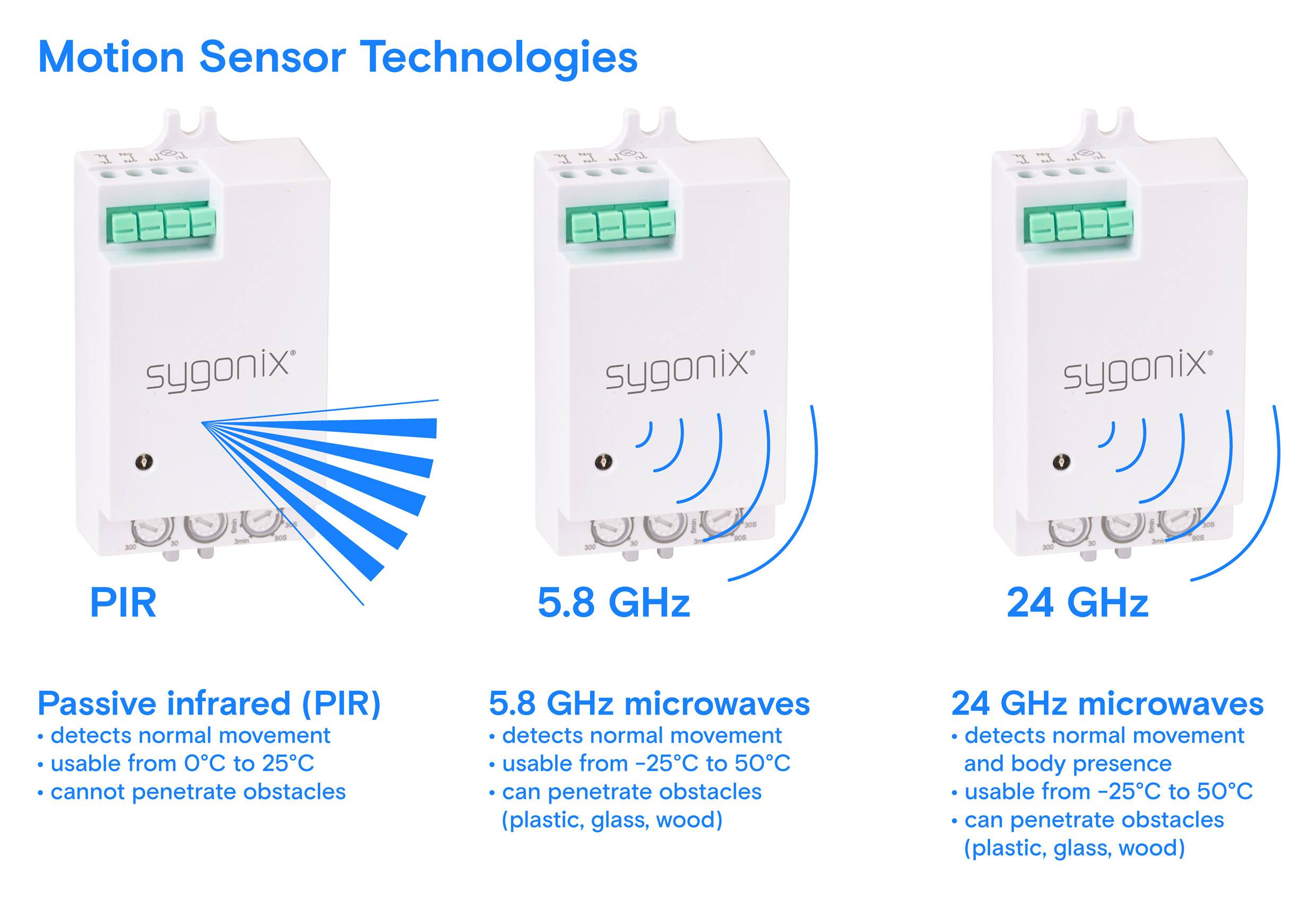

- 24GHz Microwave presence sensor
- Allows precise detection of movement in space, including the presence of people at rest

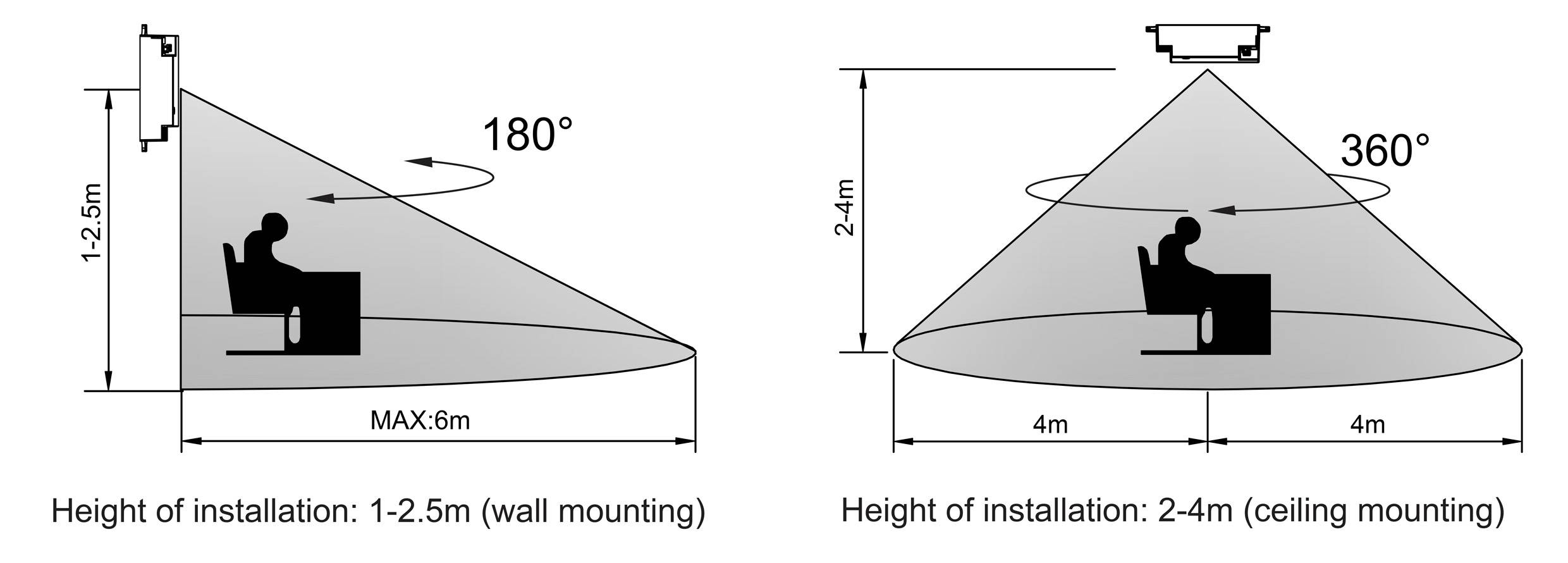

- Detects human respiratory movements within 4 metres (radius) when ceiling mounted and 6 metres when wall mounted

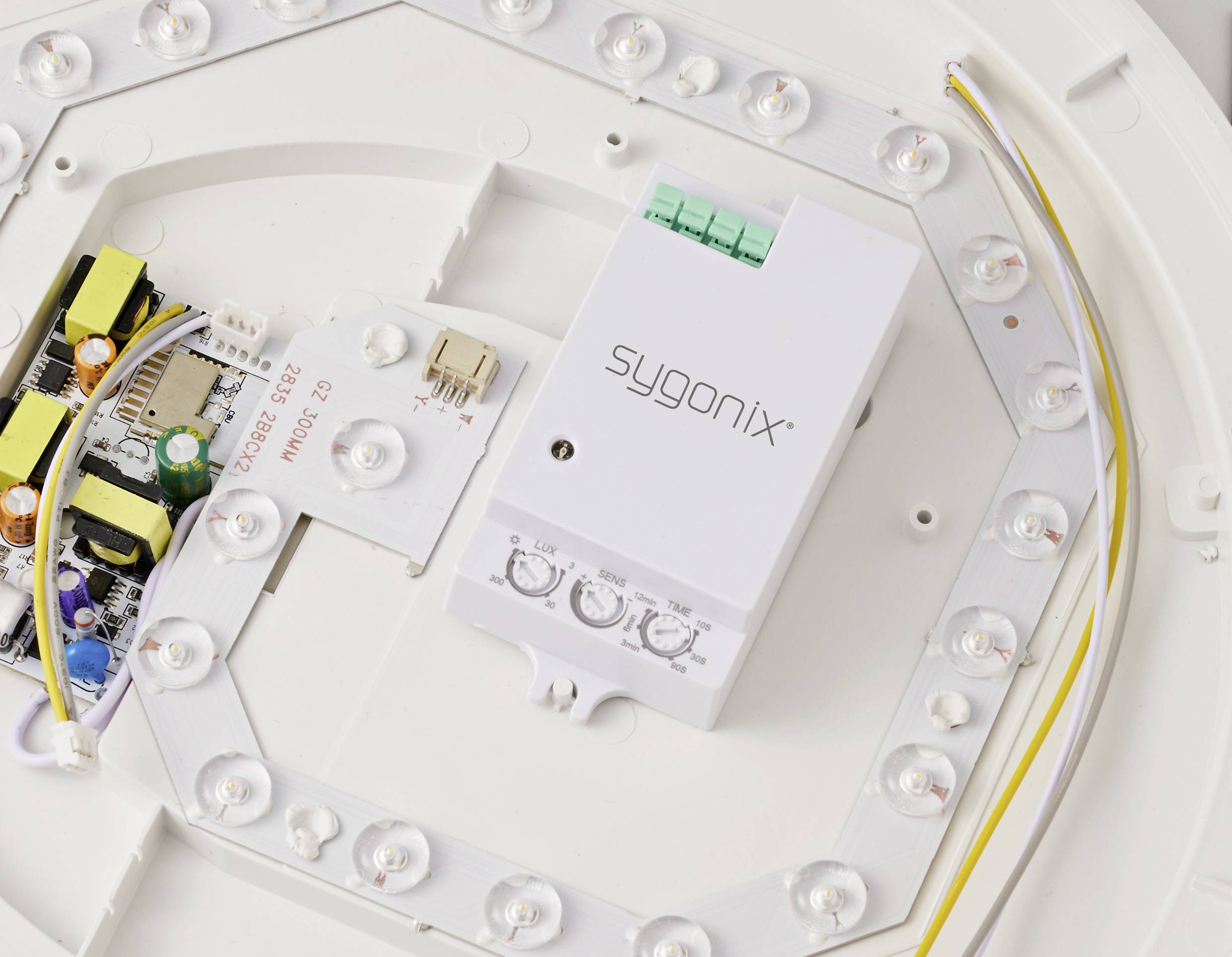

- Can be installed in a closed non-metallic lamp housing
Technical specifications
- Product type
Occupancy sensor
- Detection angle
180°
360°
8 m
- Used at
Indoors
- Mounting type
Ceiling
Wall
- Operating voltage
230 V AC
- Contact type
Relay
- Switching capacity (energy saving bulbs)
300 W
- Switching capacity (light bulbs)
1200 W
- Switching capacity (LED)
300 W
- Twilight settings
3 - 2000 lx
- Time settings
10 s - 12 min
- Factory colour
White
- Length
93 mm
- Width
45 mm
- Height
25 mm
- Dim
(L x W x H) 93 x 45 x 25 mm
- Weight
55 g
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3439962 Sygonix SY-6879924 Ceiling, Wall Occupancy sensor 180 °, 360 ° Relay White
Warranty Terms
Warranty Terms 3439962 Sygonix SY-6879924 Ceiling, Wall Occupancy sensor 180 °, 360 ° Relay White
Description
Features
- HF system: 24GHz CW radar, ISM band
- Switches up to 1200W
- For incandescent lamps, energy-saving lamps and LED lights
- Coverage angle: 180°/ 360°
- Detection distance: max. 4m radius (ceiling mounted), max. 6m (wall mounted)
Scope of delivery
- Microwave presence sensor
- User manual
