Buy Sygonix SY-6733030 Wall, Surface-mount PIR motion detector 240 ° Relay White IP65

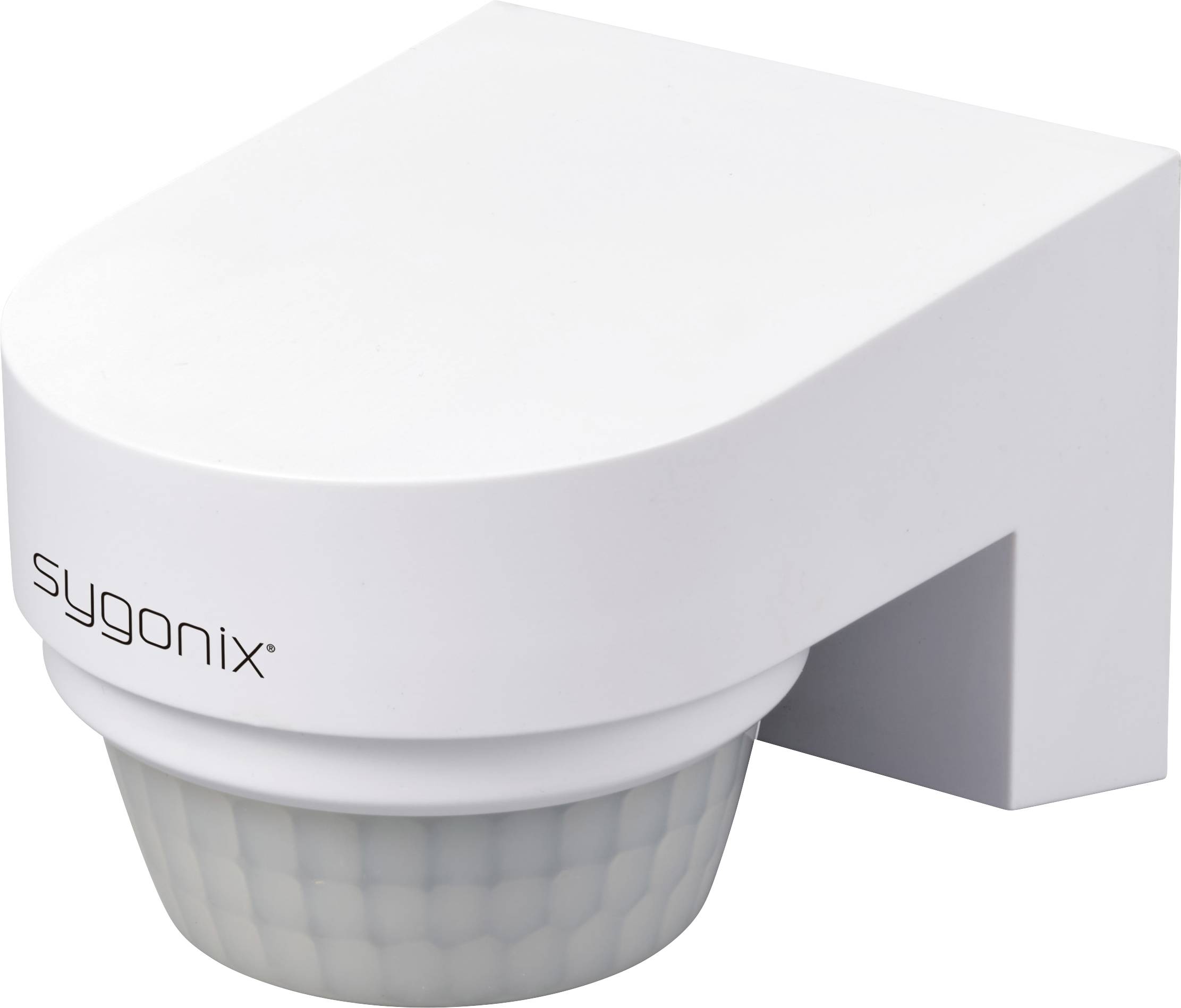

A white, wall-mounted motion sensor by 'sygonix' for security or lighting control purposes.

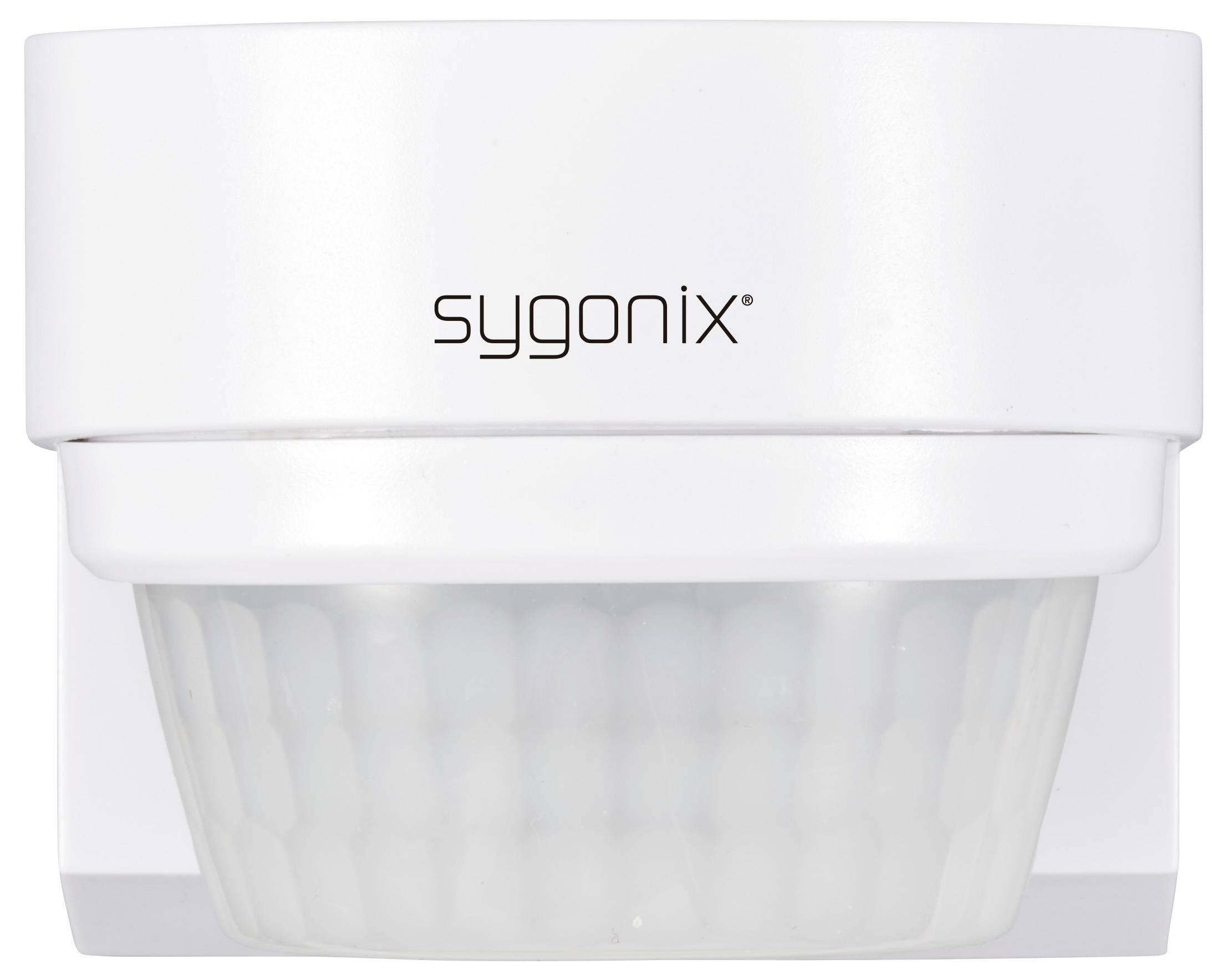

A white Sygonix motion sensor, wall-mounted, suitable for monitoring indoor and outdoor areas.

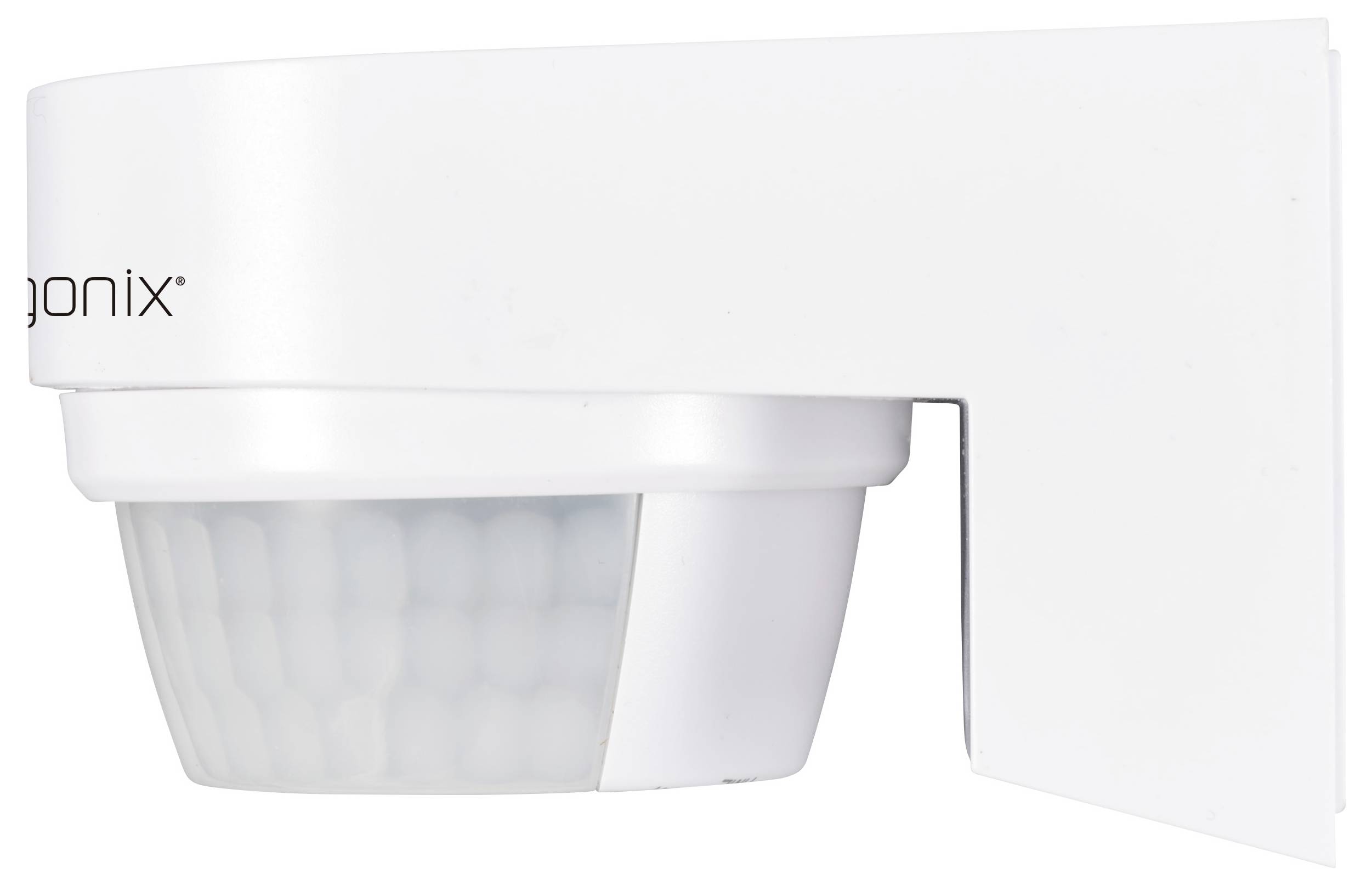

White, semi-circular wall-mounted movement sensor bracket, side-mounted. Suitable for security and automation systems.

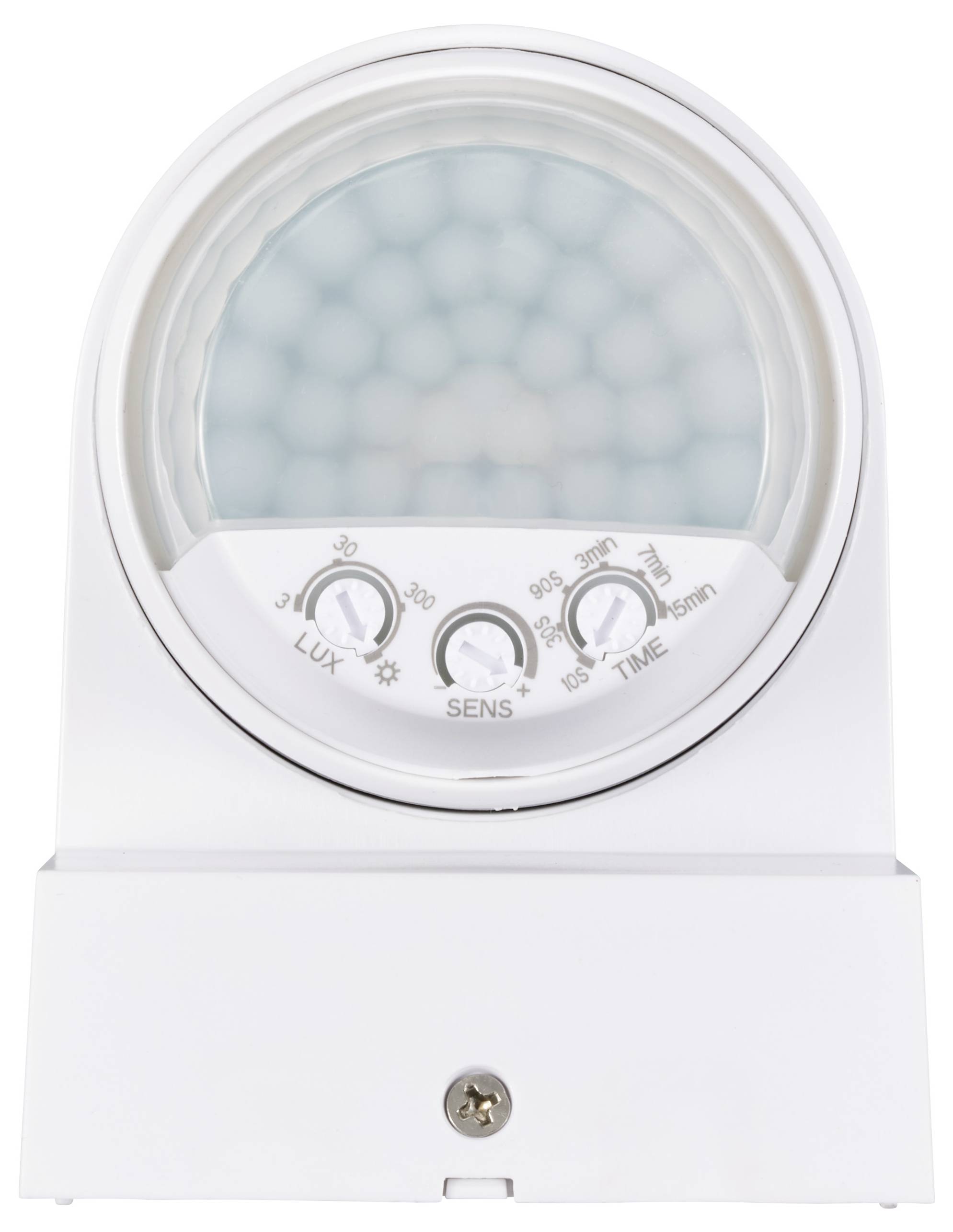

A white motion sensor with controls for light sensitivity ('LUX'), sensitivity ('SENS'), and time control ('TIME'). Perfect for lighting control.

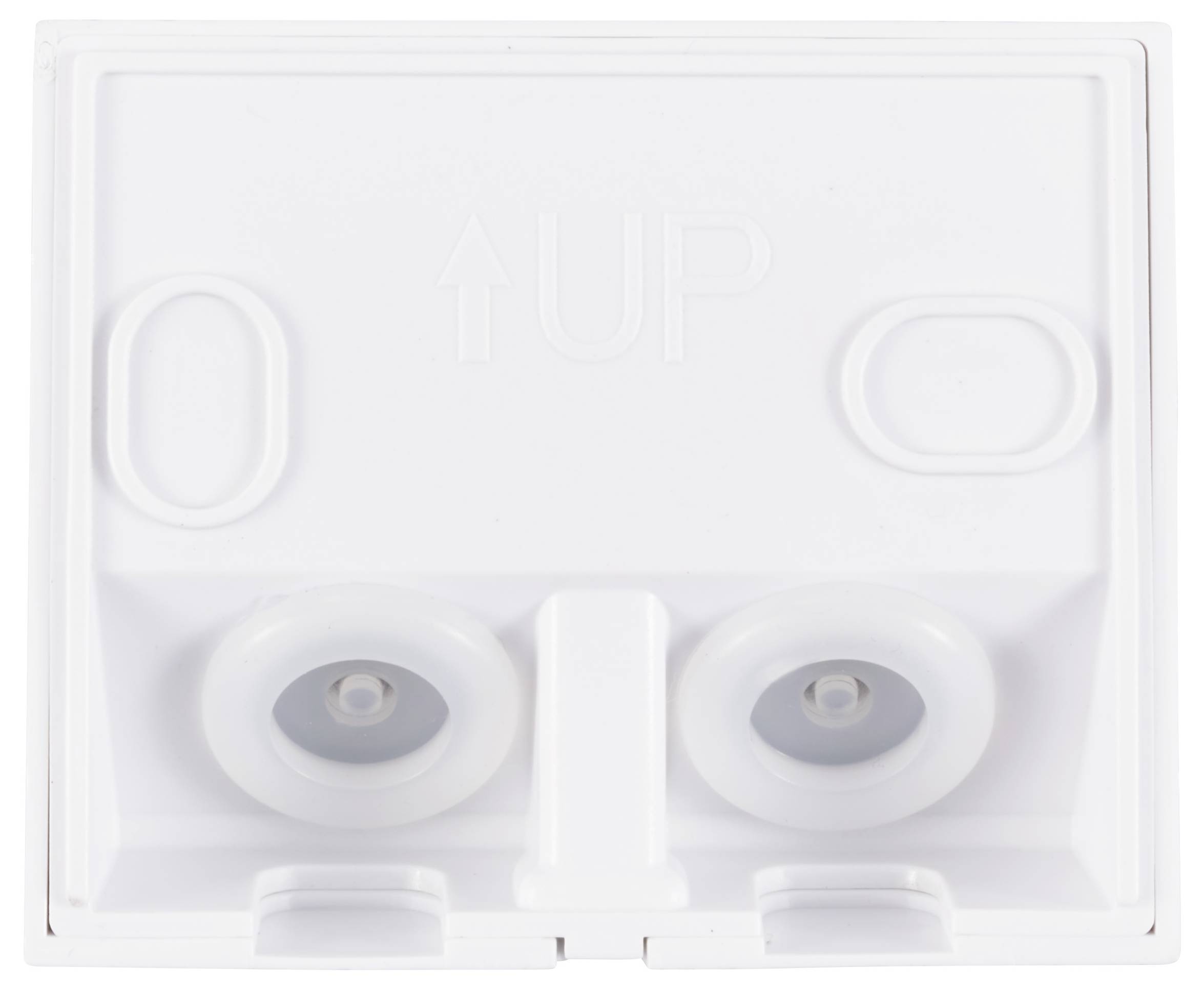

A white plastic connector with two round openings on its underside. 'UP' is written on top with an upward-pointing arrow.

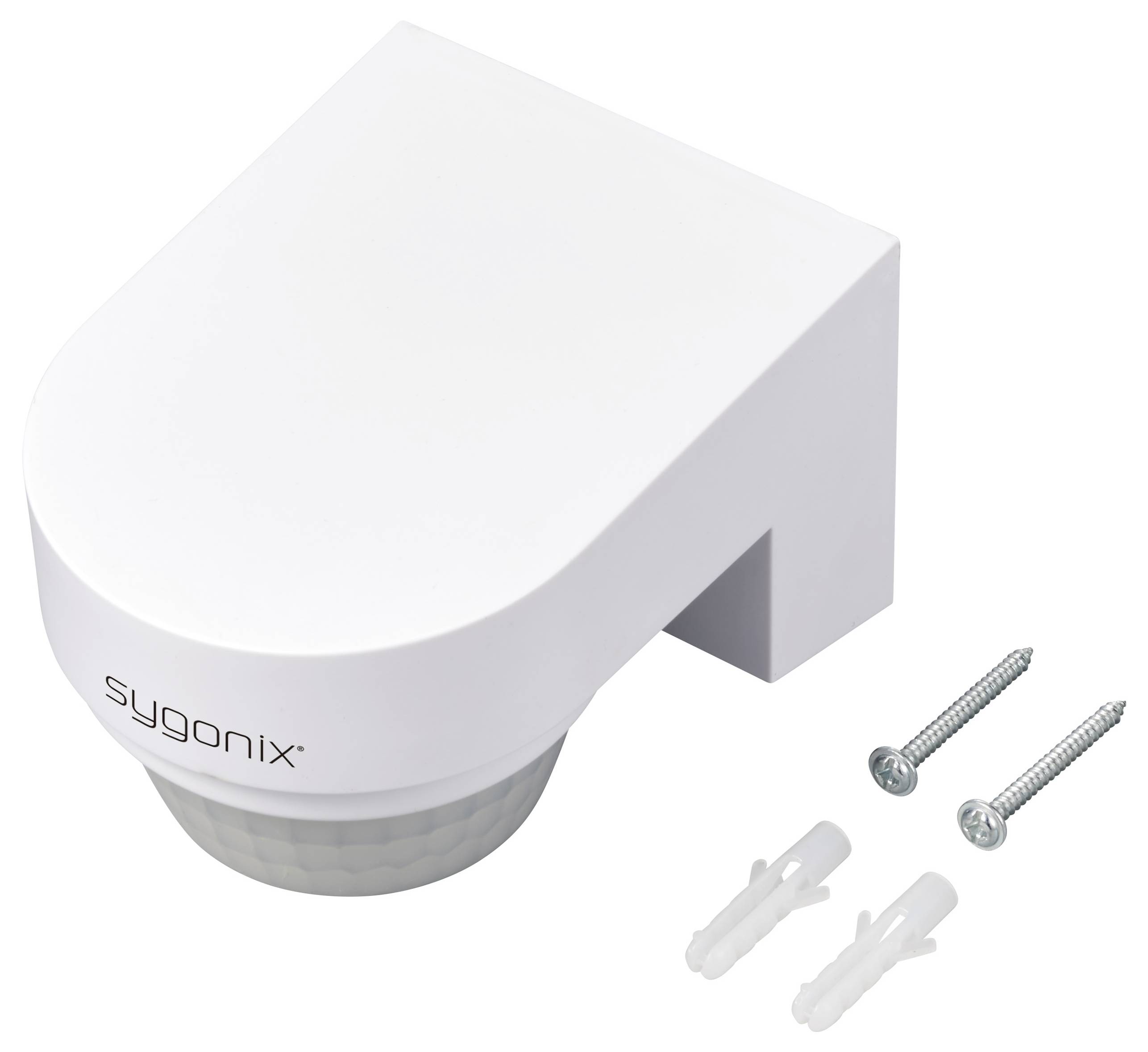

Motion sensor Sygonix in white. Contains two screws and wall plugs for mounting. Ideal for indoor or outdoor installation.

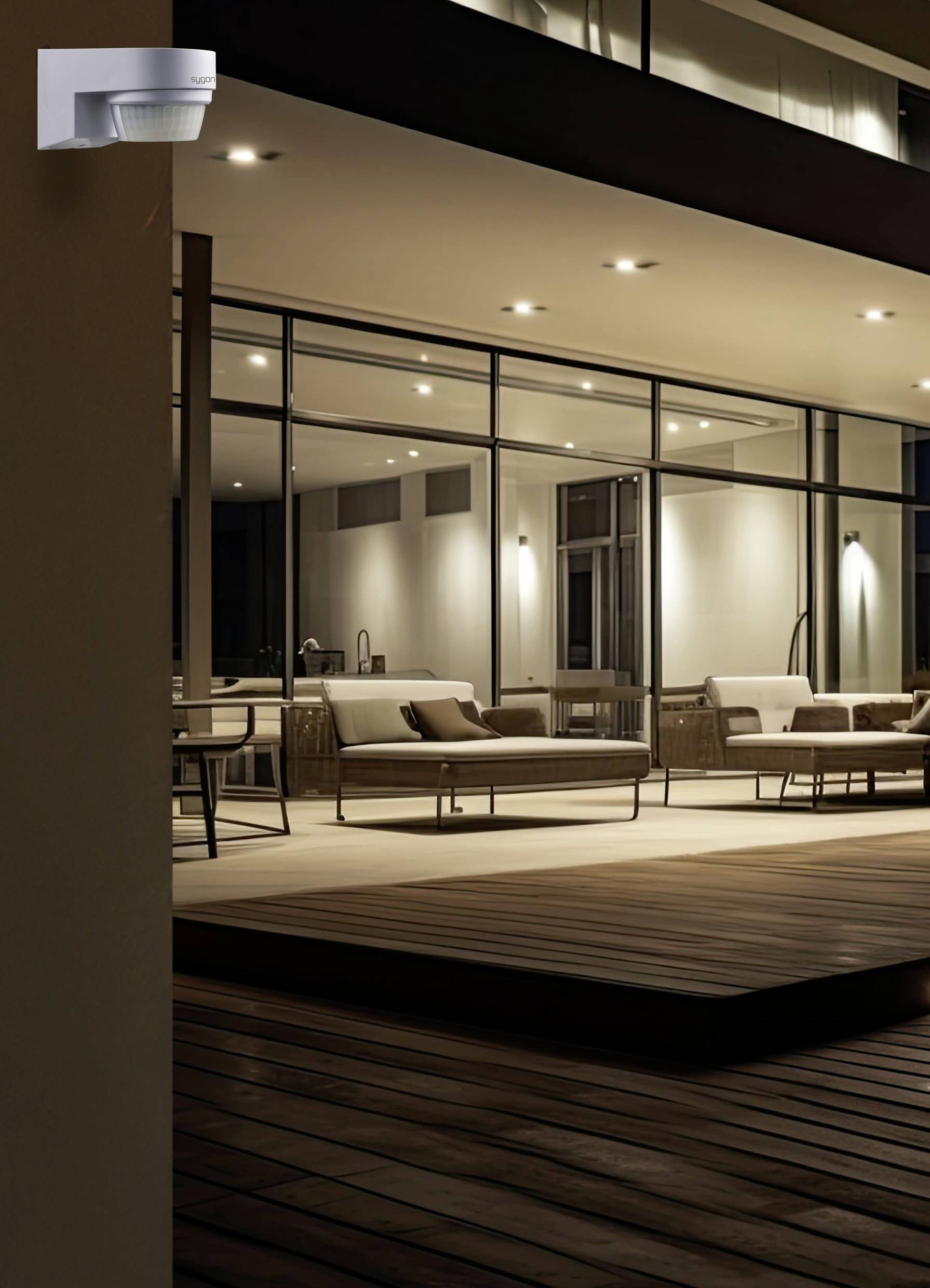

A modern living area with large glass frontages and a stylish terrace, illuminated at dusk, with a sofa and seating area in the foreground.

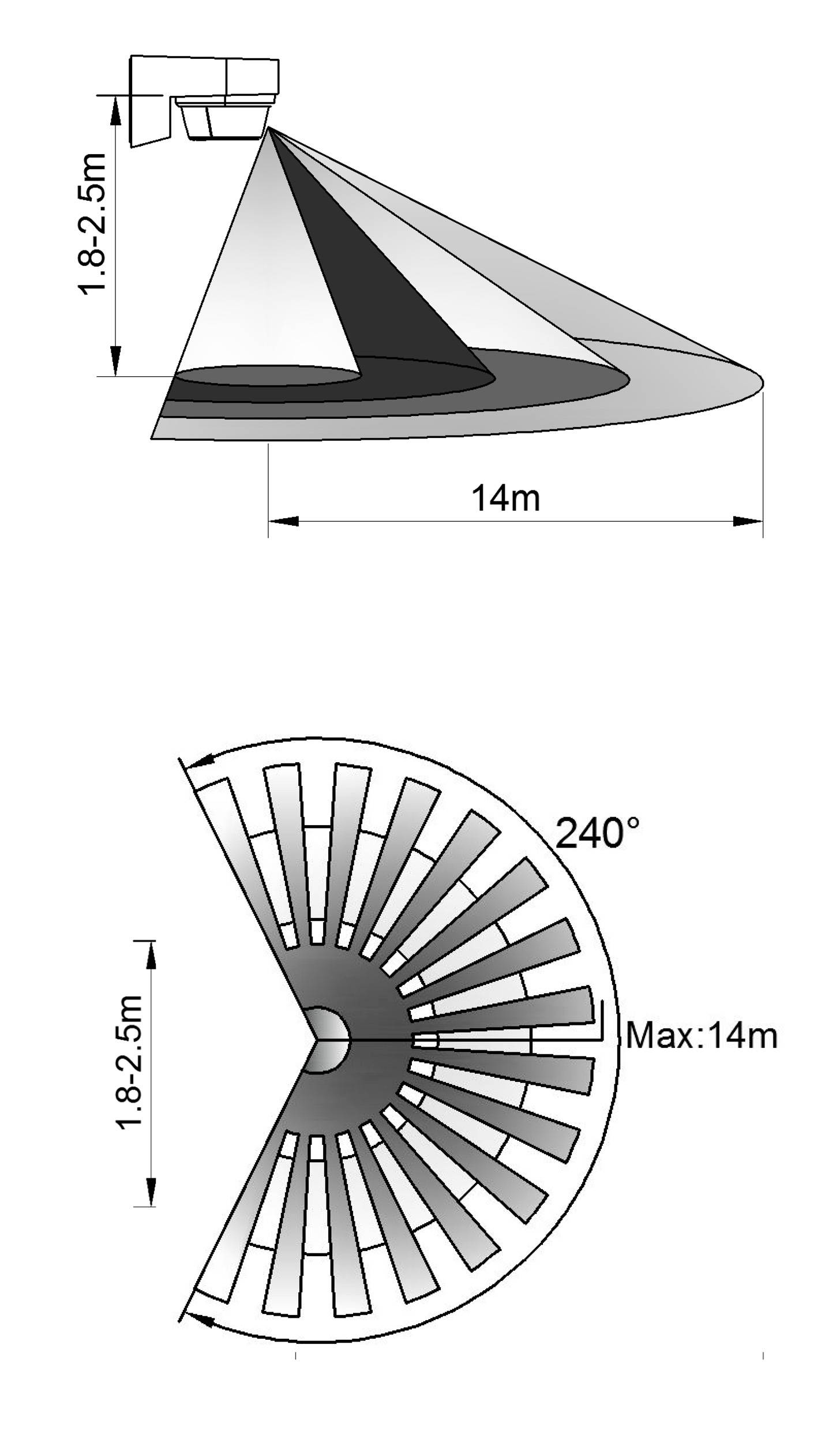

The graphic shows the detection range of a motion sensor. Top: side view (14 m range). Bottom: top-down view with 240° coverage.

1/8

Our service for you

238 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 9.24 / piece)

€

Report legal concerns

Highlights & Details

Surface-mounted PIR sensor, 240 degrees, IP65, 2000W

Infrared motion sensor
Coverage angle: 240º
IP65

Technical specifications

Product type: PIR motion detector

Detection angle: 240°

: 14 m

Used at: Indoors
Outdoors

Mounting type: Wall
Surface-mount

Operating voltage: 230 V AC

Contact type: Relay

Switching capacity (energy saving bulbs): 1000 W

Switching capacity (light bulbs): 2000 W

Switching capacity (LED): 1000 W

Factory colour: White

: IP65

Length: 100 mm

Width: 75 mm

Height: 62 mm

Dim: (L x W x H) 100 x 75 x 62 mm

Weight: 167 g

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3366515 Sygonix SY-6733030 Wall, Surface-mount PIR motion detector 240 ° Relay White IP65

Warranty Terms

Warranty Terms 3366515 Sygonix SY-6733030 Wall, Surface-mount PIR motion detector 240 ° Relay White IP65

Description

The motion detector is used for detecting motion in indoor and outdoor areas. It can be installed easily in entrance areas, driveways or in staircases. Thereby, it is protected according to IP65.
To illuminate certain points optimally, connect the motion detector to a light, for example. The lamp is switched on or off automatically via the built-in PIR sensor. The sensors respond to temperature changes within the detection range. This is the case, for example, if a person or an animal with a temperature different from the ambient temperature enters the detection area.
