Buy Sygonix SY-4755362 Wall, Flush mount PIR motion detector 190 ° Triac White

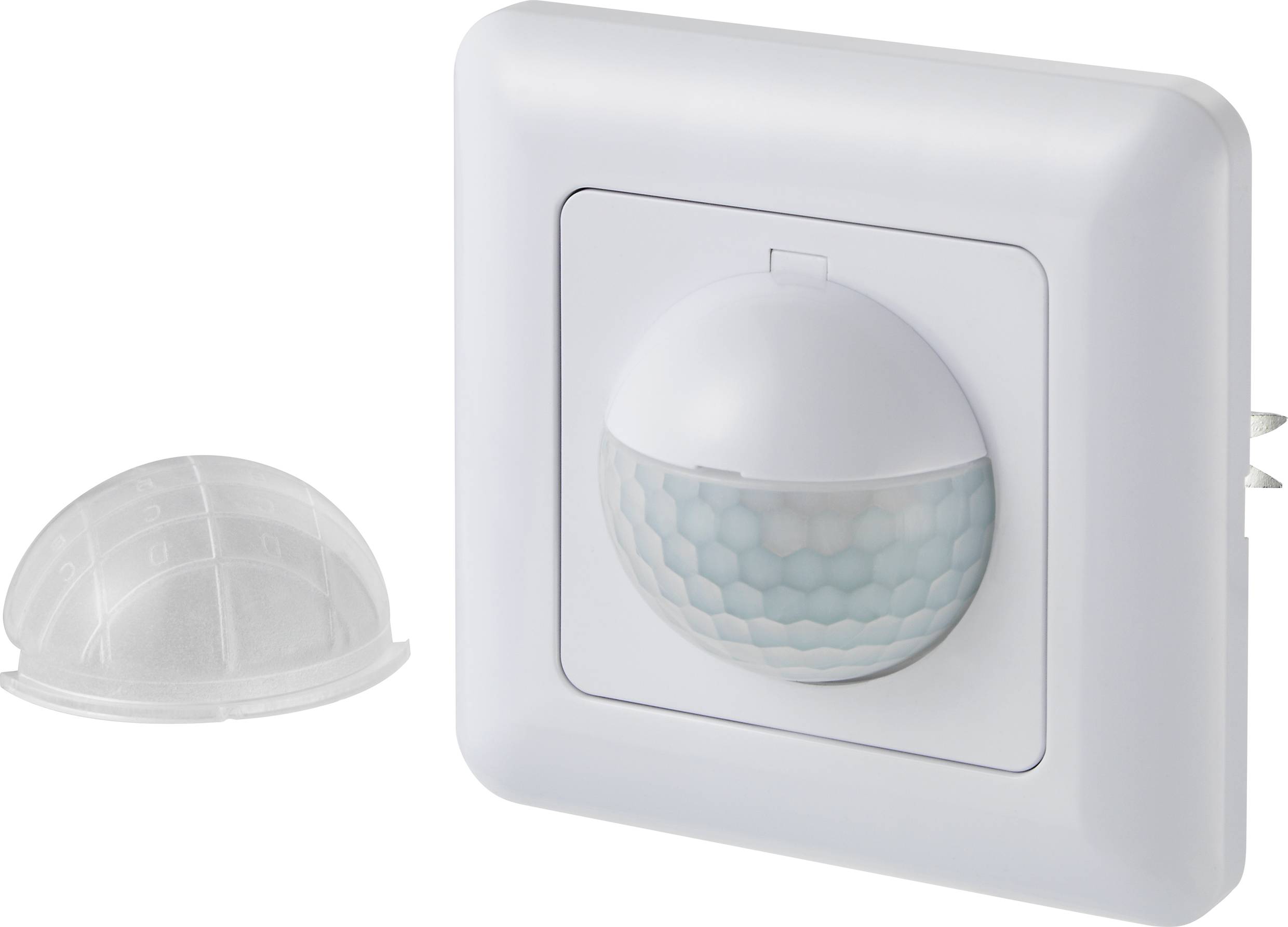

A white motion sensor in a wall mount with a removable, dome-shaped cover part beside it.

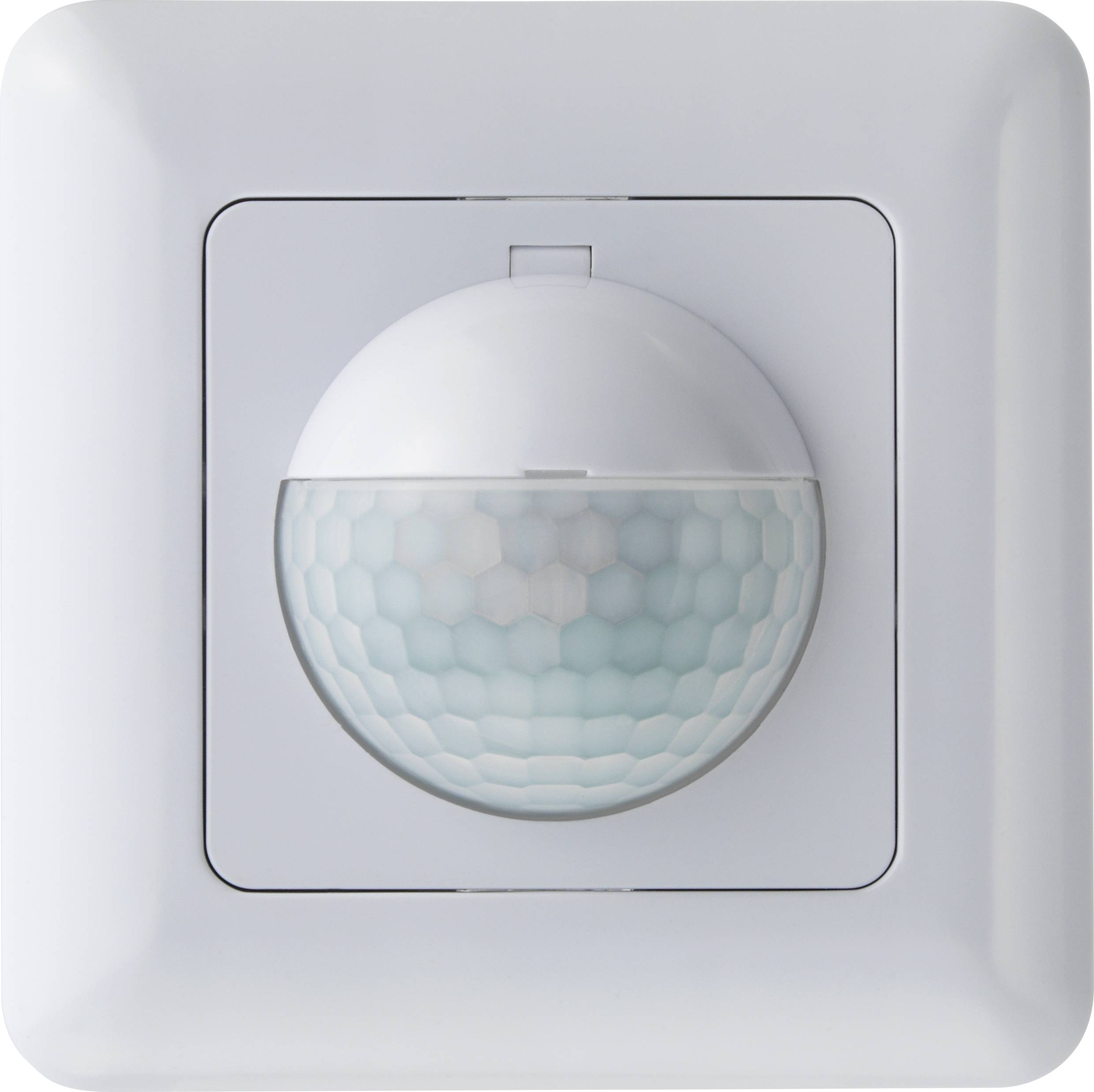

A white wall switch with an integrated motion sensor. The sensor is circular and structured and serves to control lighting automatically.

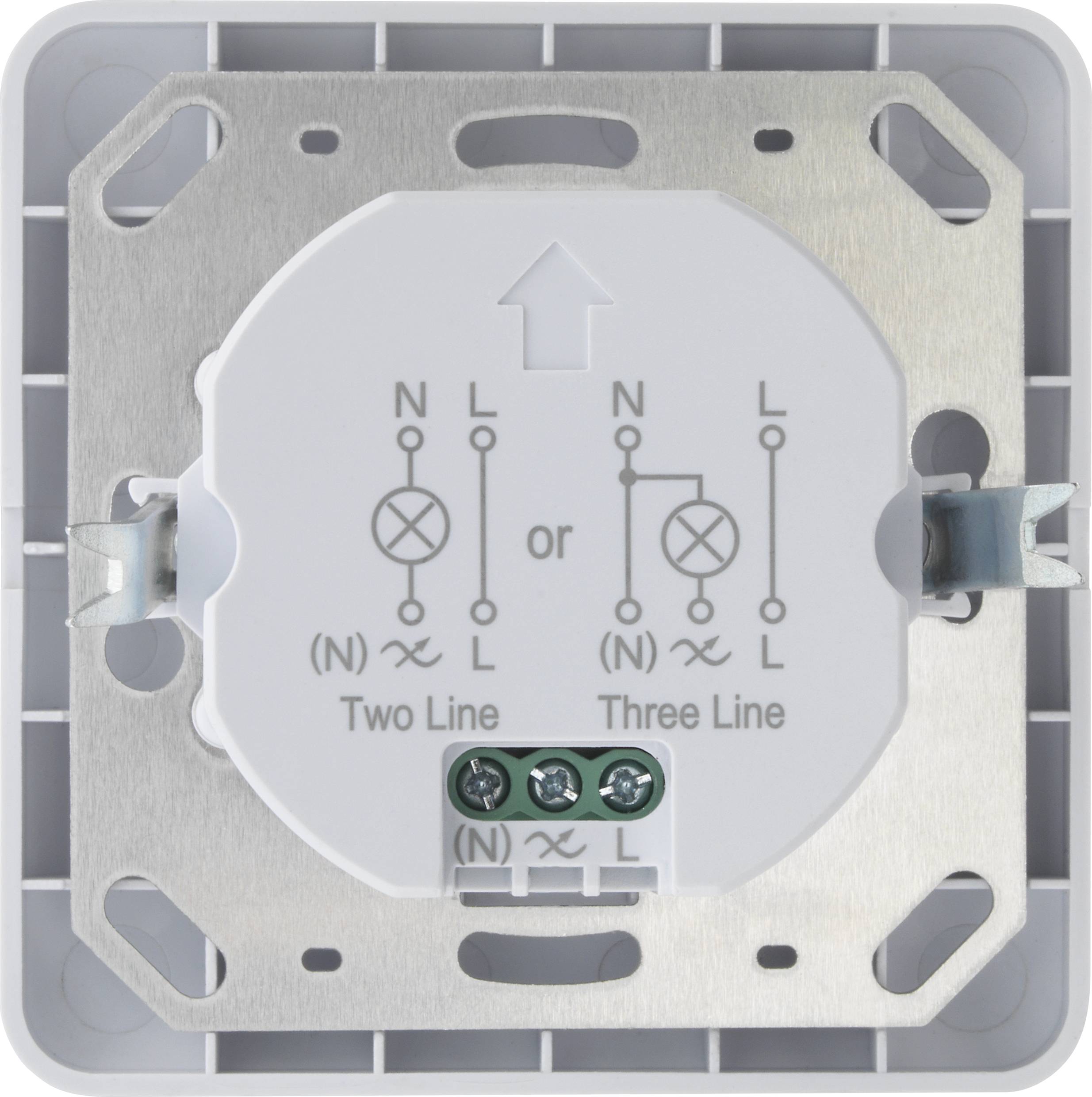

'Network socket with labels for two- and three-wire connection. Arrow pointing upwards. Three screw terminals at the bottom.'

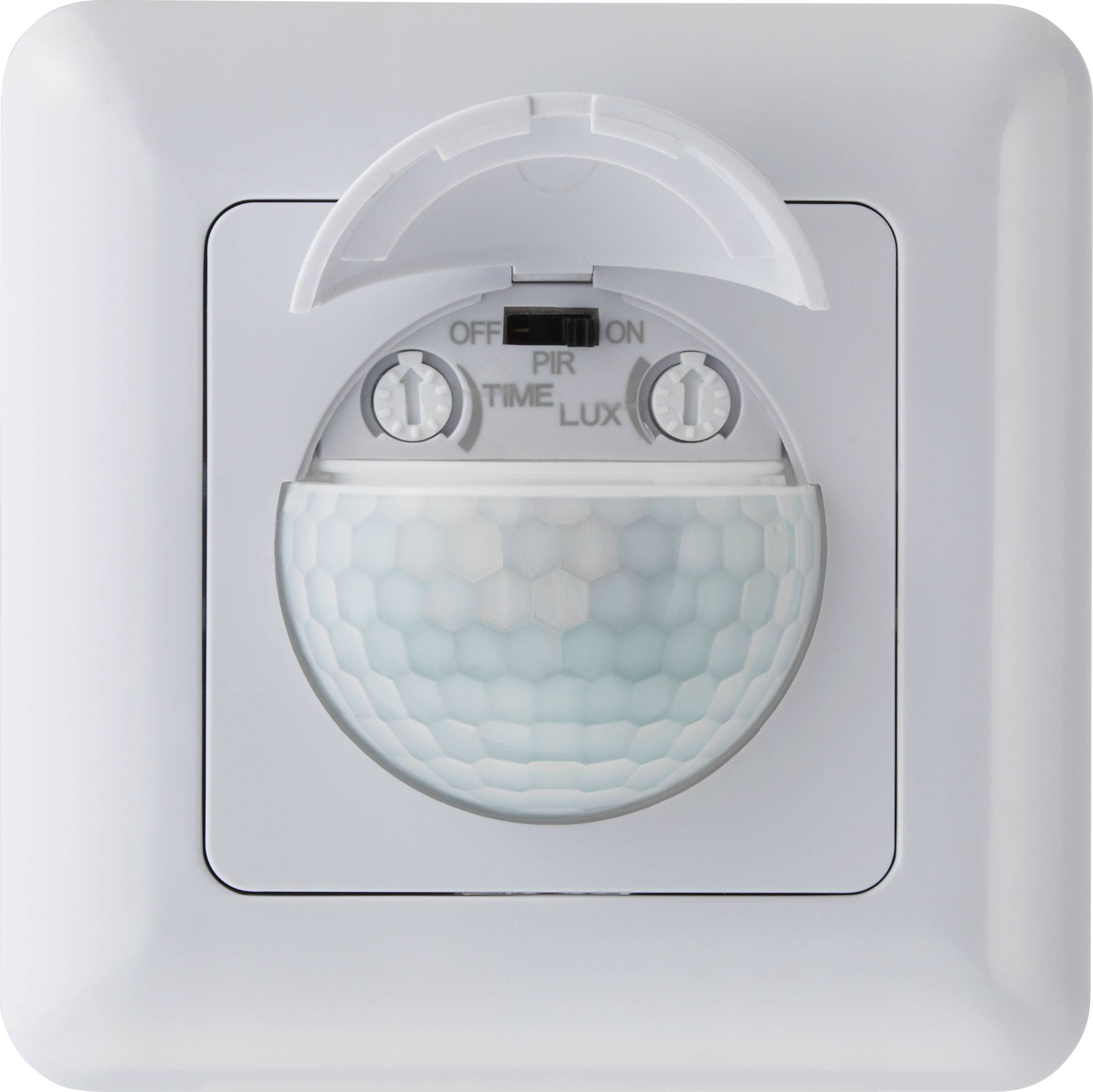

Motion sensor on a white wall, showing 'OFF' and 'ON' switches along with adjustment dials for duration and light sensitivity.

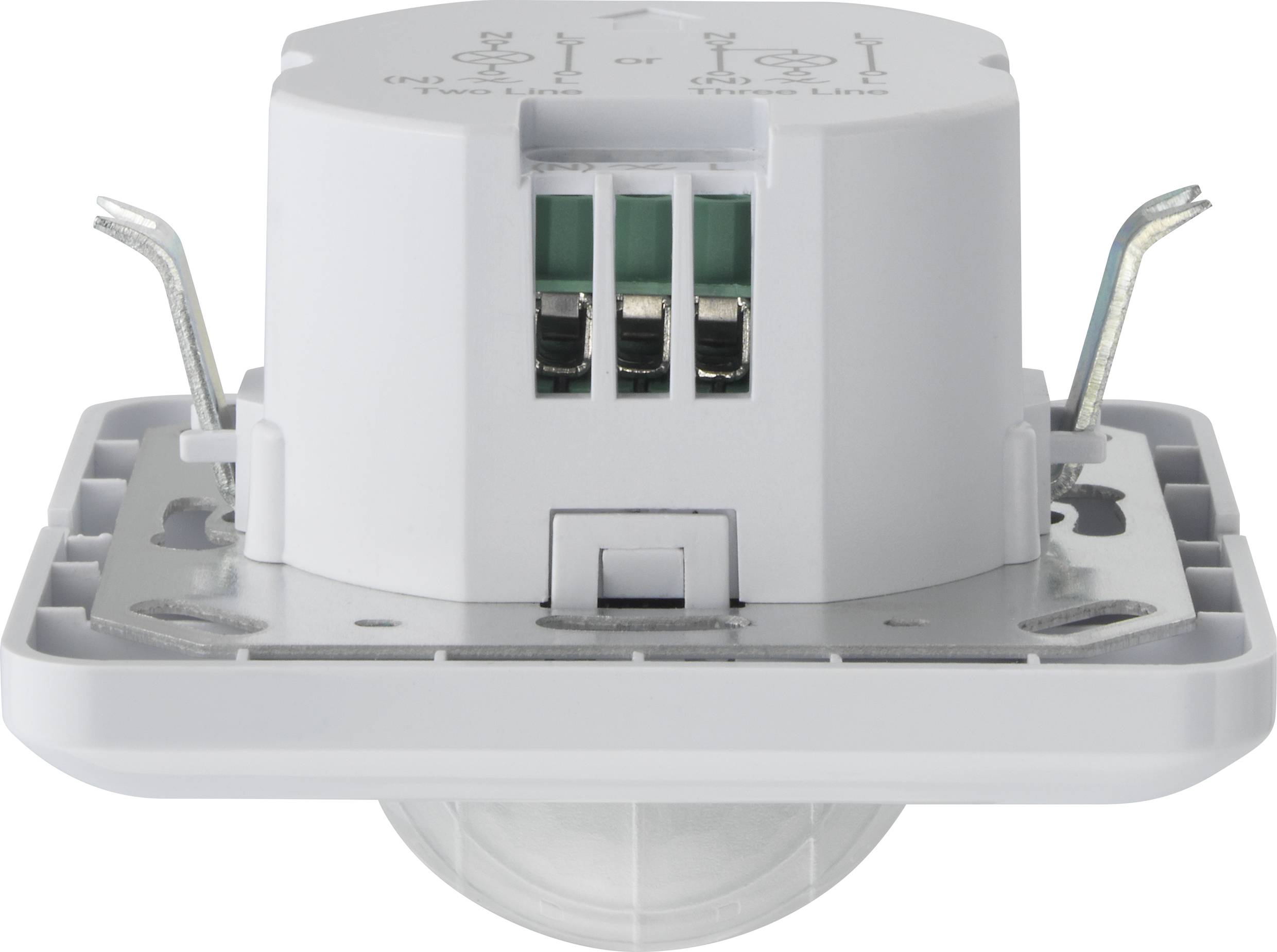

A white wall-mounted motion sensor with three cable connections and metal clips on the sides, suitable for indoor use.

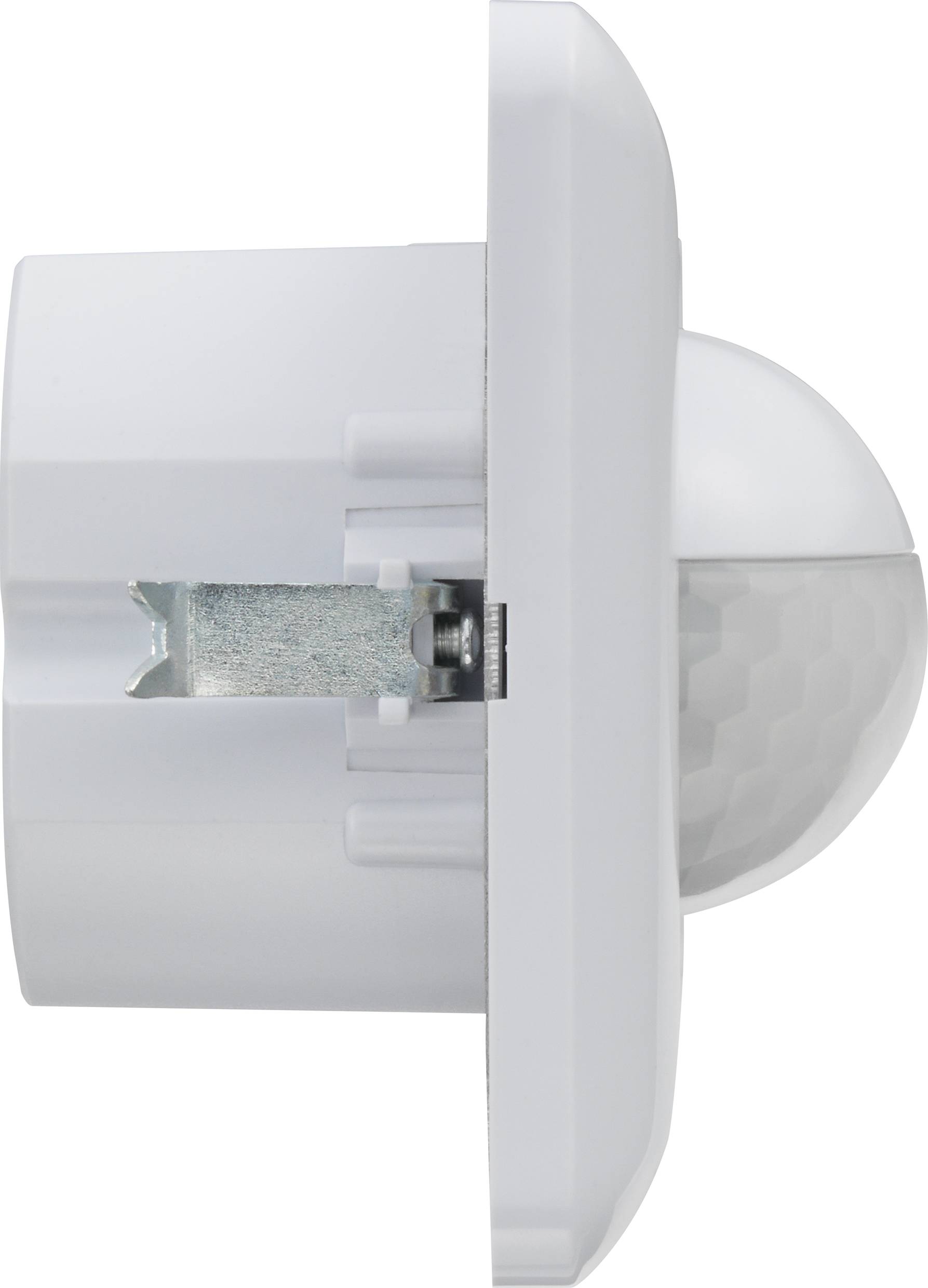

A white motion sensor with a hemispherical design mounted on a wall, used for detecting movement in a room.

A person enters a room with modern decor. A sensor on the wall activates a lamp, illuminating the space.

Motion sensor with a removable lens cap. The label indicates that the lens cap can be cut along the marked letters.

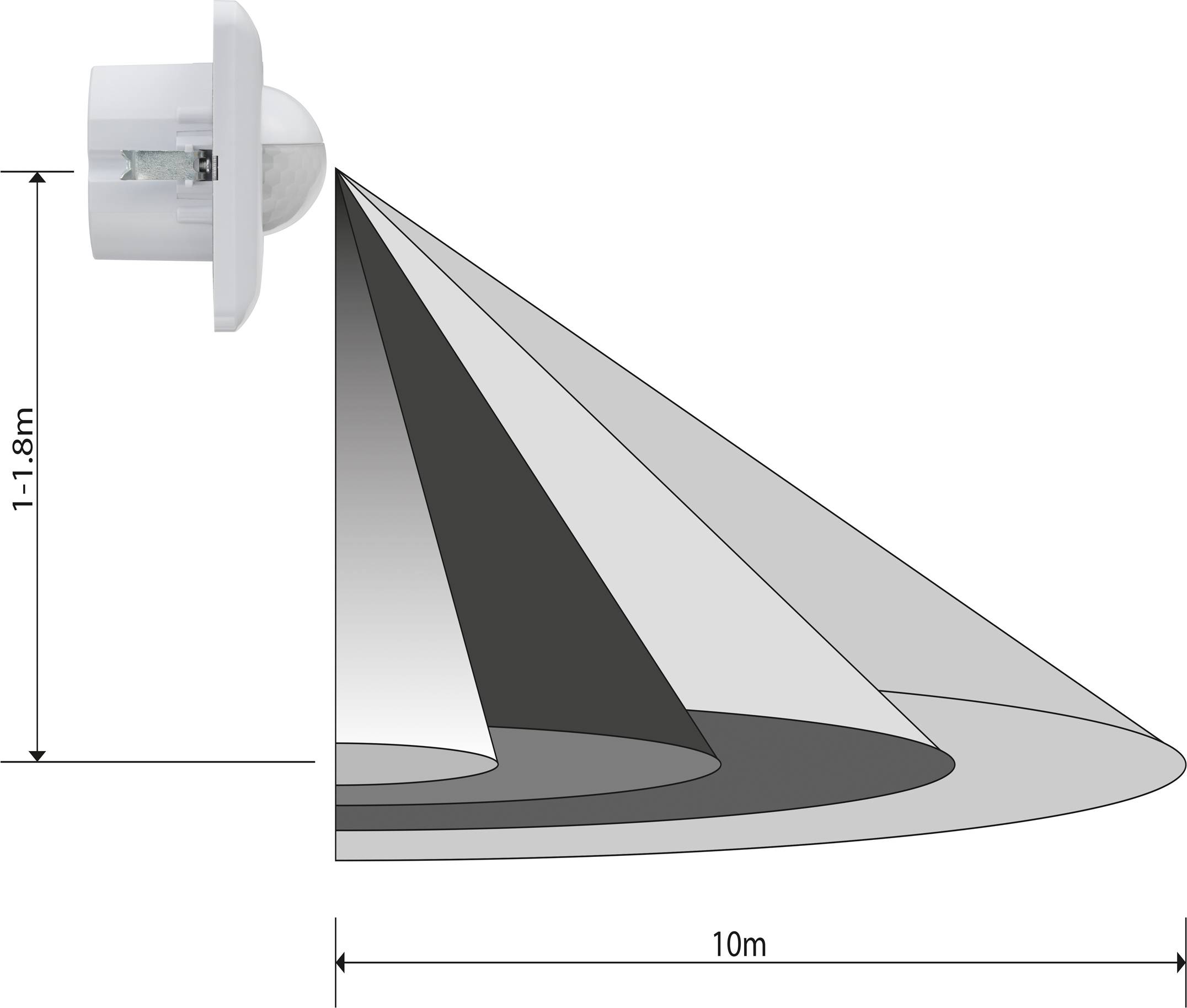

A motion sensor at a height of 1.8 m shows a detection angle and range of 10 m in a conical pattern, representing the detection area.

1/9

Our service for you

Fast track dispatch on Mon, 14 Sep

577 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.92 / piece)

€ 10.92

plus VAT.

Report legal concerns

Highlights & Details

PIR UP motion sensor, 190° flush-mounted

Cover on front for easily adjusting sensor setting
Additional lens shield for adjusting coverage angle
Switching power up to 500 W

Technical specifications

Detection range: Max. 10 m

Product type: PIR motion detector

Detection angle: 190°

: 10 m

Used at: Indoors

Mounting type: Wall
Flush mount

Operating voltage: 230 V AC

Contact type: Triac

Switching capacity (energy saving bulbs): 200 W

Switching capacity (light bulbs): 500 W

Switching capacity (LED): 200 W

Twilight settings: 3 - 2000 lx

Factory colour: White

Length: 80 mm

Width: 80 mm

Height: 31 mm

Dim: (L x W x H) 80 x 80 x 31 mm

Weight: 90 g

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2377681 Sygonix SY-4755362 Wall, Flush mount PIR motion detector 190 ° Triac White

Warranty Terms

Warranty Terms 2377681 Sygonix SY-4755362 Wall, Flush mount PIR motion detector 190 ° Triac White

Description

The built-in PIR sensor detects temperature changes within a maximum range of 10 m and 190°. An additional cover of the lens enables a variable adjustment of the detection angle. The sensor can be easily installed in flush-mounted sockets and is suitable as a replacement for existing light switches.

This text is machine translated.
