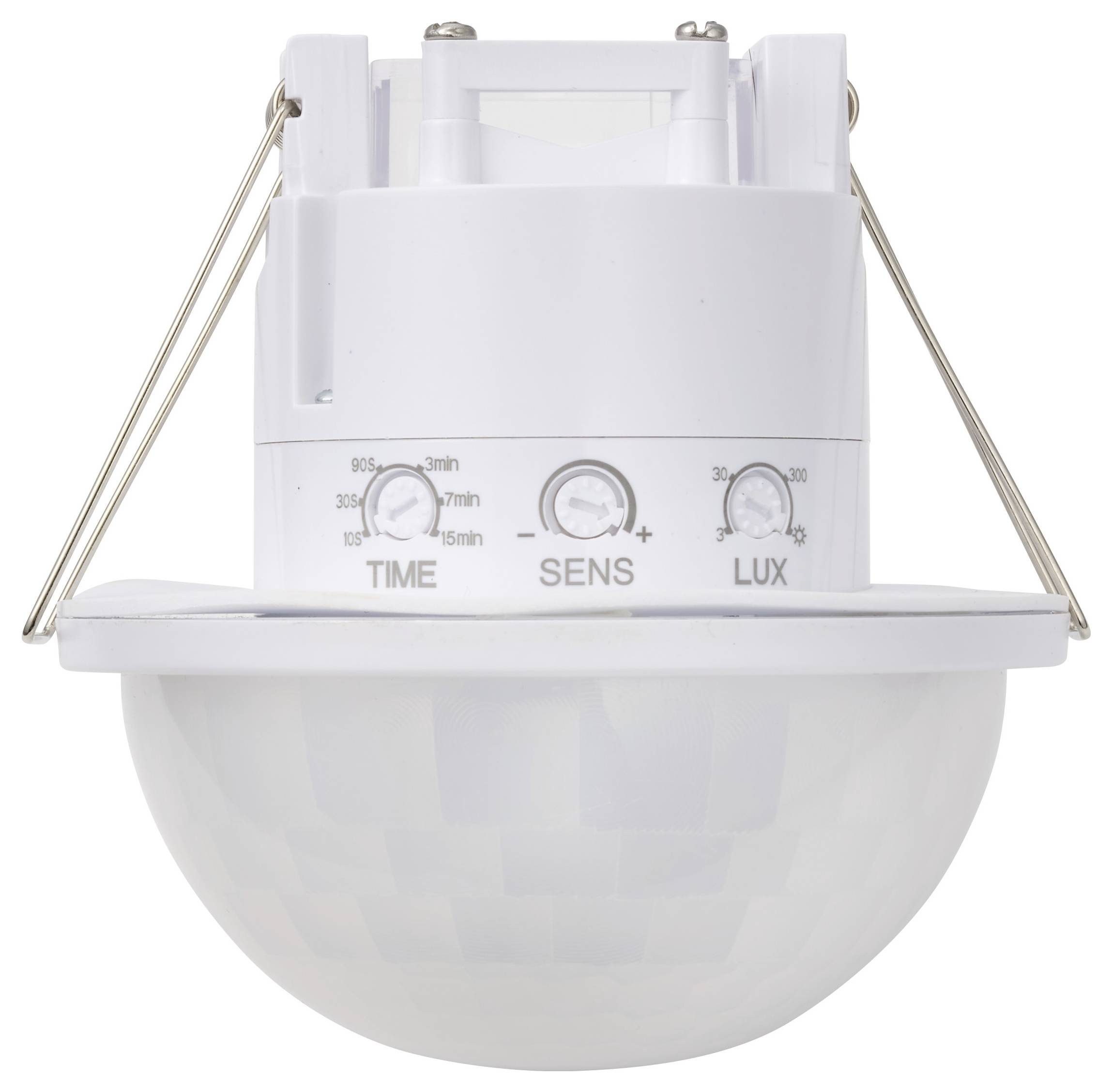

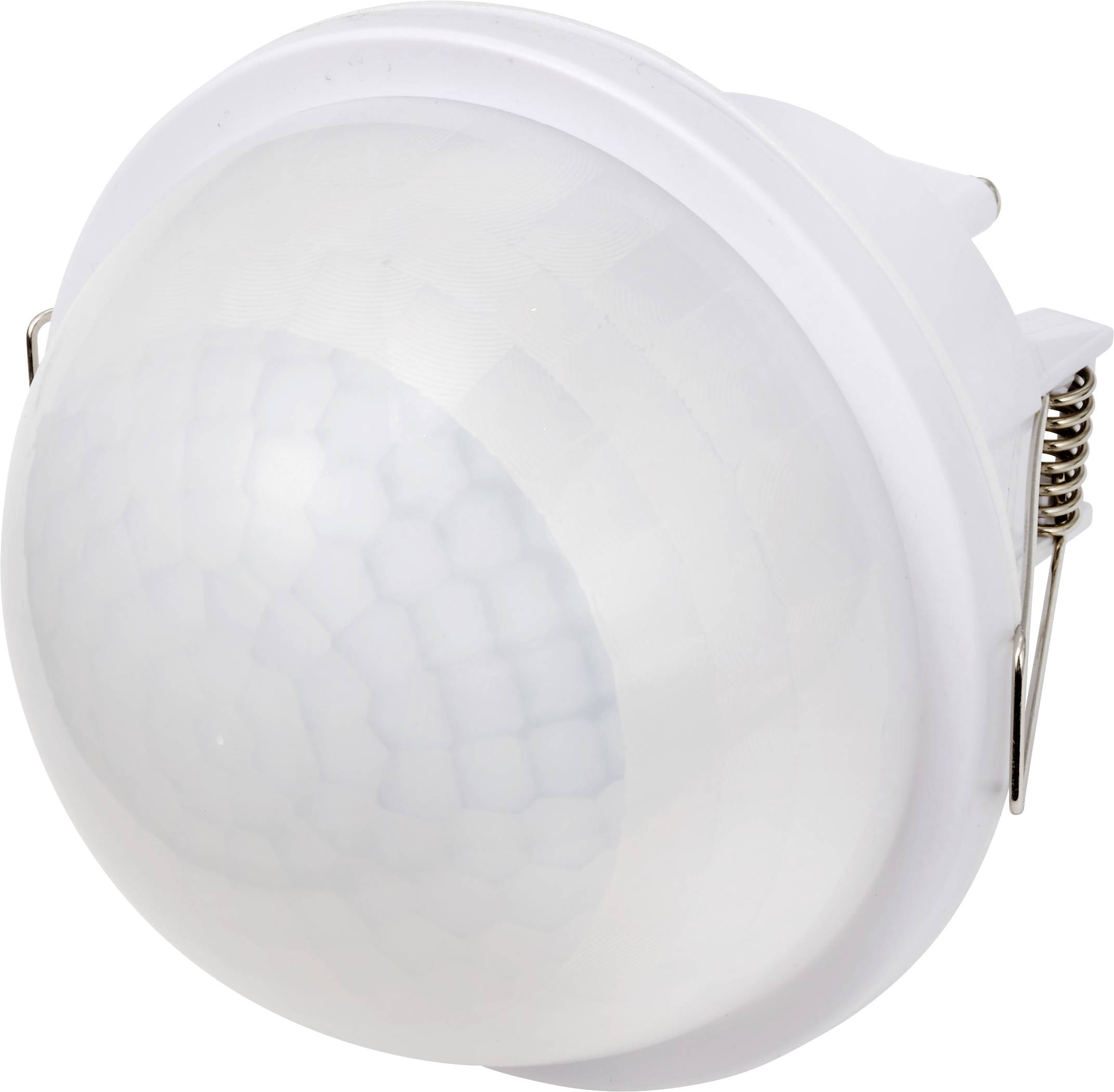

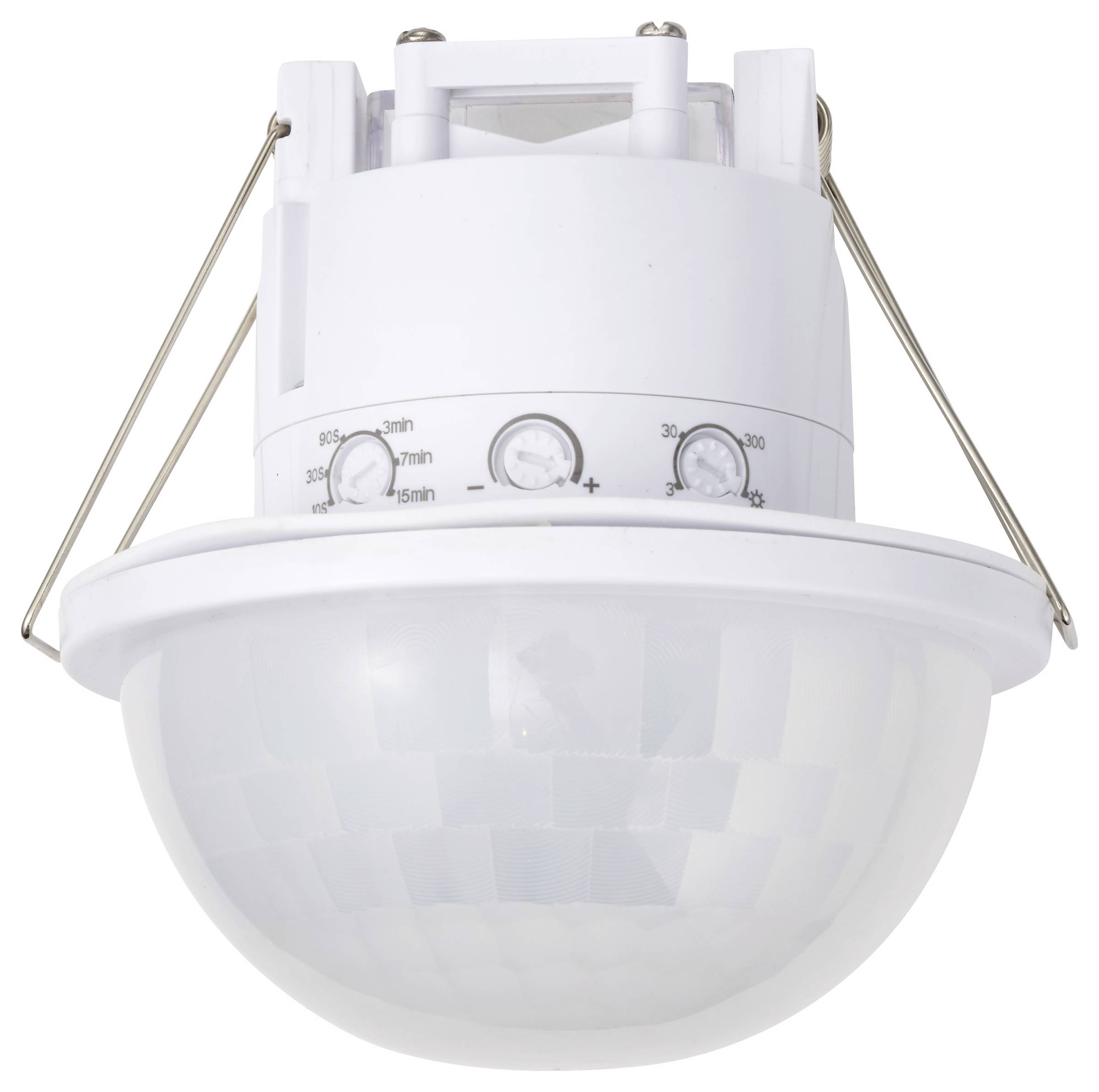

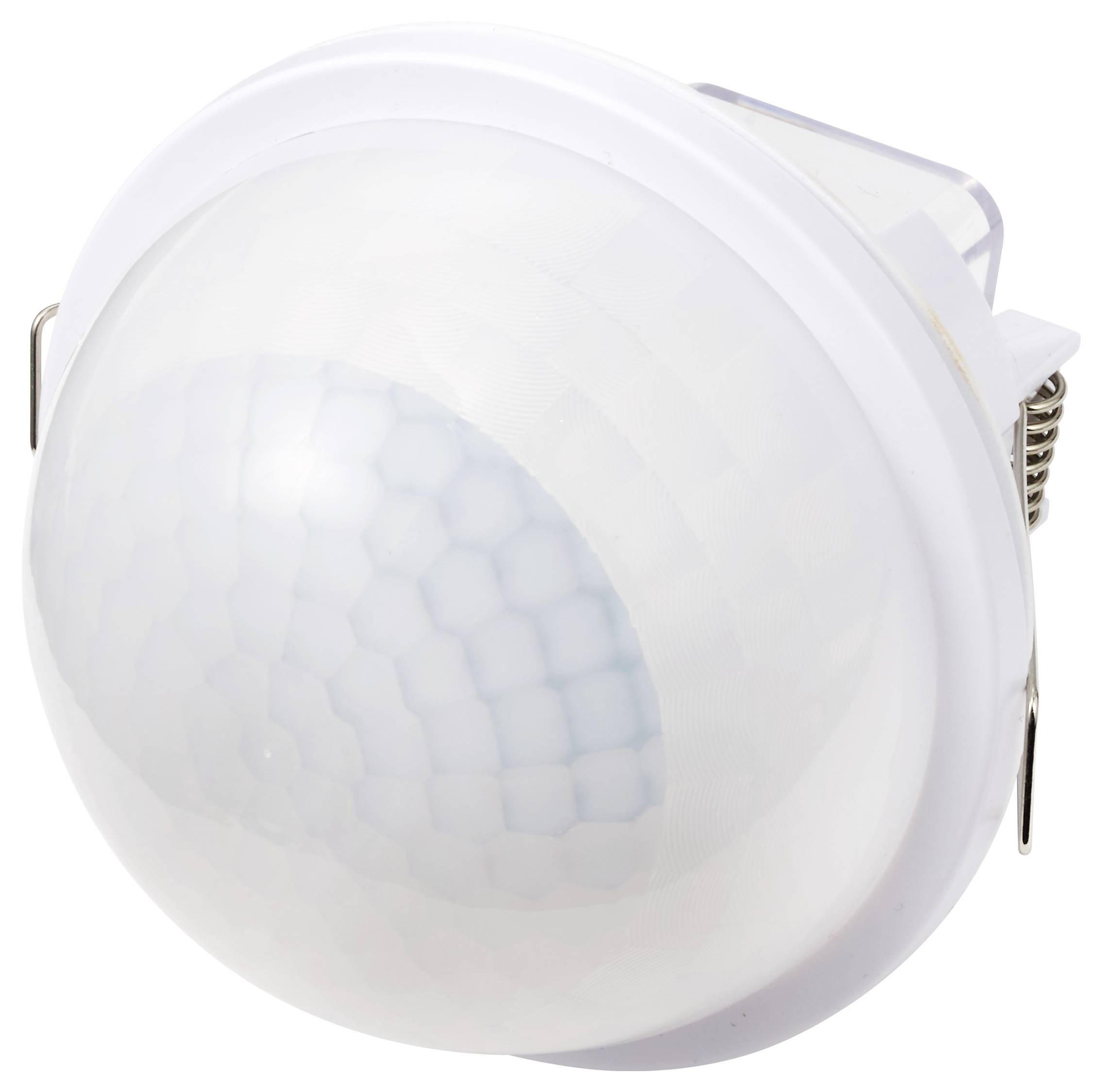

Sygonix SY-7403856 Ceiling PIR motion detector 360 ° Relay White IP54
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
5% = € 0.59
€ 11.17
5
7% = € 0.82
€ 10.94
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Highlights & Details
IR motion detector 360° 40m flush-mounted IP54
- Infrared motion sensor
- Switches up to 2000W
- Extra-long detection range up to 40 m diameter
- IP54
Technical specifications
- Product type
PIR motion detector
- Detection angle
360°
40 m
- Used at
Outdoors
Indoors
- Mounting type
Ceiling
- Operating voltage
230 V AC
- Contact type
Relay
- Switching capacity (energy saving bulbs)
1000 W
- Switching capacity (light bulbs)
2000 W
- Switching capacity (LED)
1000 W
- Twilight settings
3 - 2000 lx
- Time settings
10 s - 15 min
- Factory colour
White
IP54
- Height
104 mm
- (Ø)
101 mm
- Dim
(Ø x H) 101 mm x 104 mm
- Weight
140 g
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3701928 Sygonix SY-7403856 Ceiling PIR motion detector 360 ° Relay White IP54
Warranty Terms
Warranty Terms 3701928 Sygonix SY-7403856 Ceiling PIR motion detector 360 ° Relay White IP54
Description
This infrared motion detector for ceiling mounting is designed for flexible use in different environments. Thanks to its robust design, it is suitable for automatic light control both in closed rooms and in suitable outdoor areas.
Use in indoor and outdoor (IP54)
Equipped with the IP54 protection class, the device is protected against dust and water spray. This means that the detector can easily be used in damp work environments or outdoors.

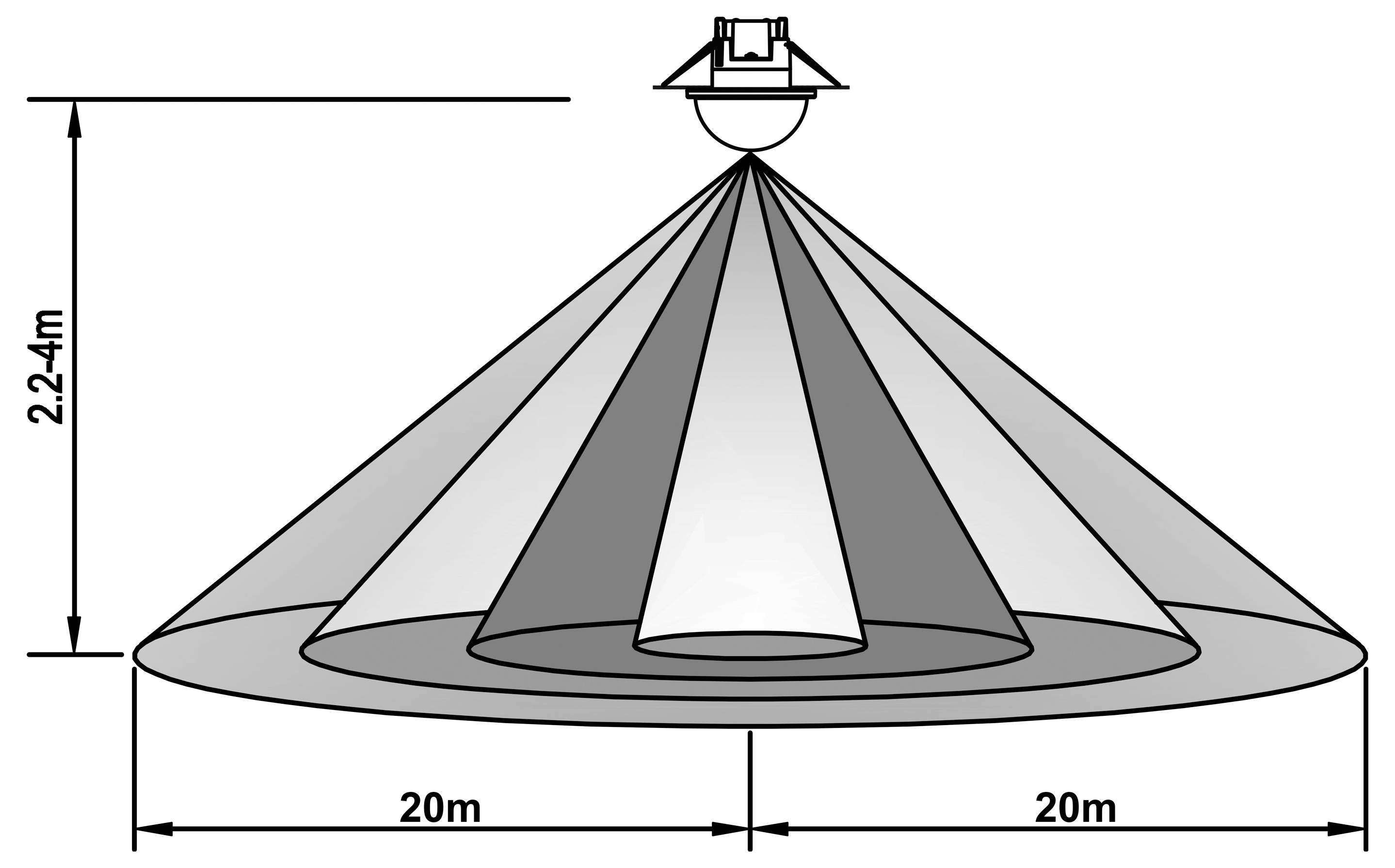

Wide-range 360° detection
With a detection angle of 360 degrees and a maximum range of 40 meters in the open, the detector captures movements over large distances, WAS makes it ideal for large areas.
High power switching
The detector switches via a relay of conventional light bulbs up to a load of 2000 W. When using LED lamps or energy saving lamps, the device supports a power of up to 1000 W.
This text is machine translated.
Use in indoor and outdoor (IP54)
Equipped with the IP54 protection class, the device is protected against dust and water spray. This means that the detector can easily be used in damp work environments or outdoors.
Wide-range 360° detection
With a detection angle of 360 degrees and a maximum range of 40 meters in the open, the detector captures movements over large distances, WAS makes it ideal for large areas.
High power switching
The detector switches via a relay of conventional light bulbs up to a load of 2000 W. When using LED lamps or energy saving lamps, the device supports a power of up to 1000 W.
This text is machine translated.
Features
- For incandescent lamps, energy-saving lamps and LED lights
- Coverage angle: 360º
Scope of delivery
- Sensor
- 2x Screws
- 2x Dowels
- User manual
