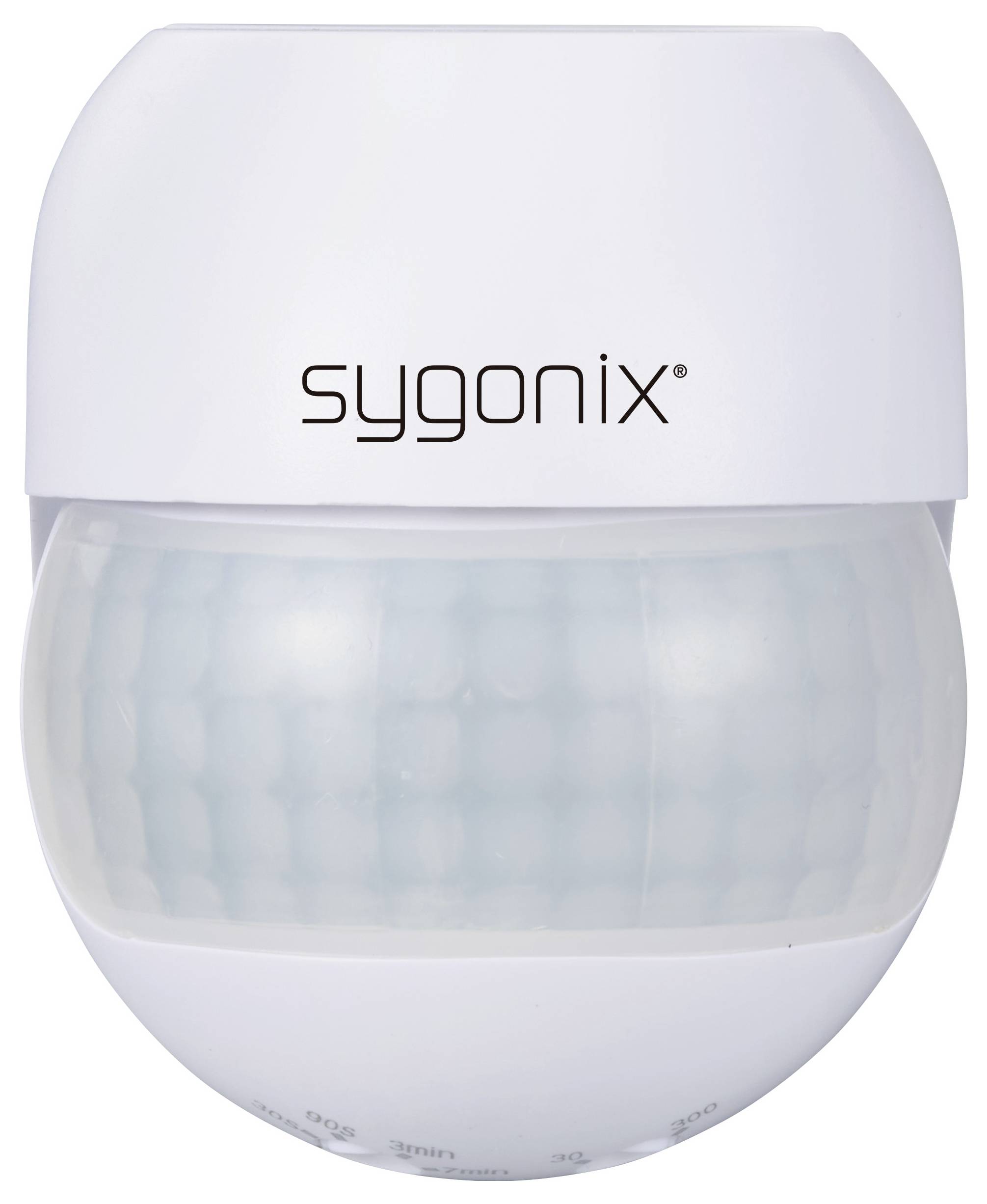

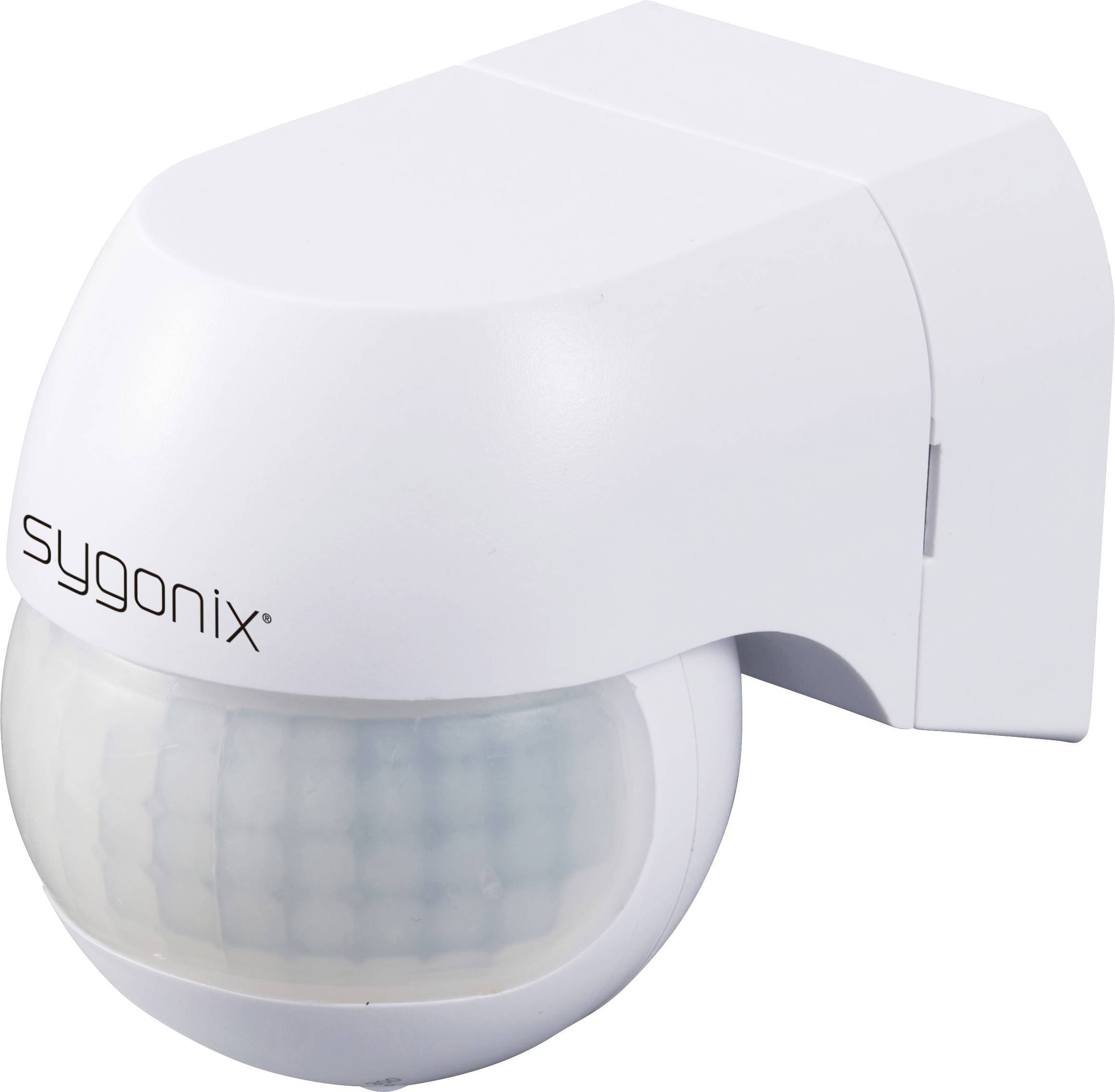

Sygonix SY-6118230 Wall-mounted, Surface-mount PIR motion detector 180 ° Relay White IP44
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
3
5% = € 0.38
€ 6.75
5
8% = € 0.54
€ 6.59
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
Highlights & Details

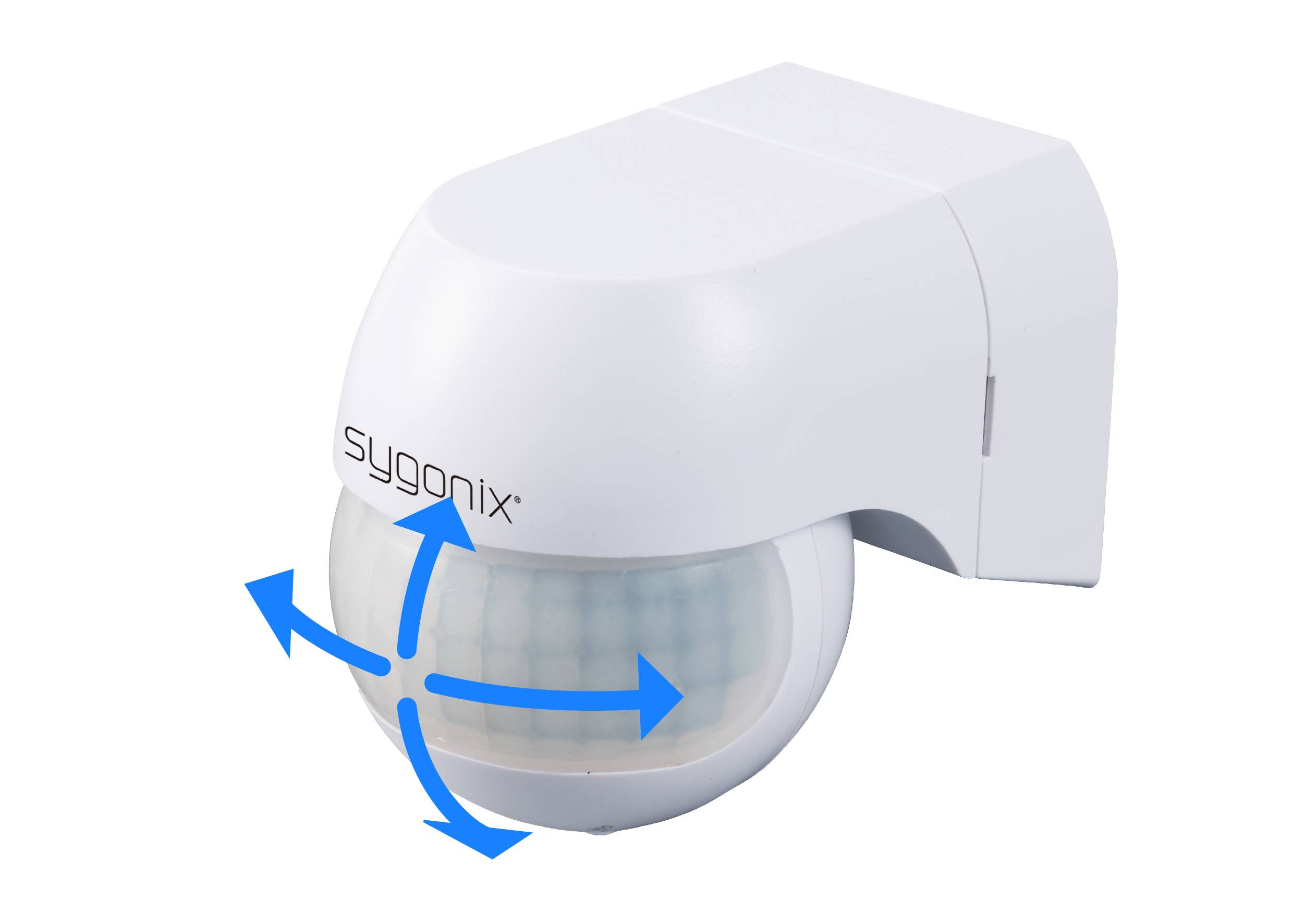

Surface-mounted PIR motion sensor, 180°, IP44
- Switches up to 800 W
- Coverage angle: 180º
- Detection distance: max. 12 m
Technical specifications
- Product type
PIR motion detector

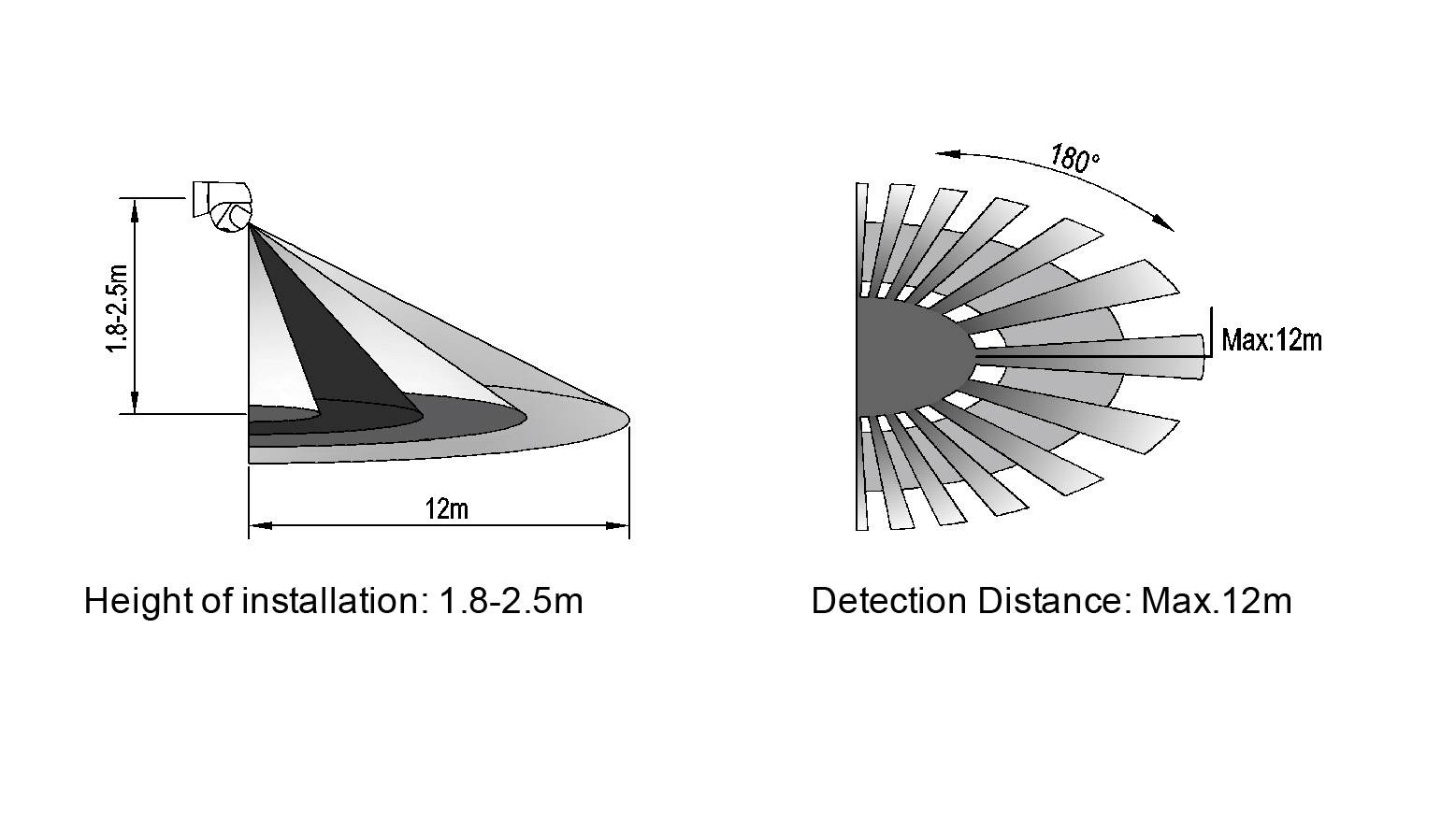

- Detection angle
180°
12 m
- Used at
Indoors
Outdoors
- Mounting type
Wall-mounted
Surface-mount
- Operating voltage
230 V AC
- Contact type
Relay
- Switching capacity (energy saving bulbs)
400 W
- Switching capacity (light bulbs)
800 W
- Switching capacity (LED)
400 W
- Standby current consumption
0.5 W

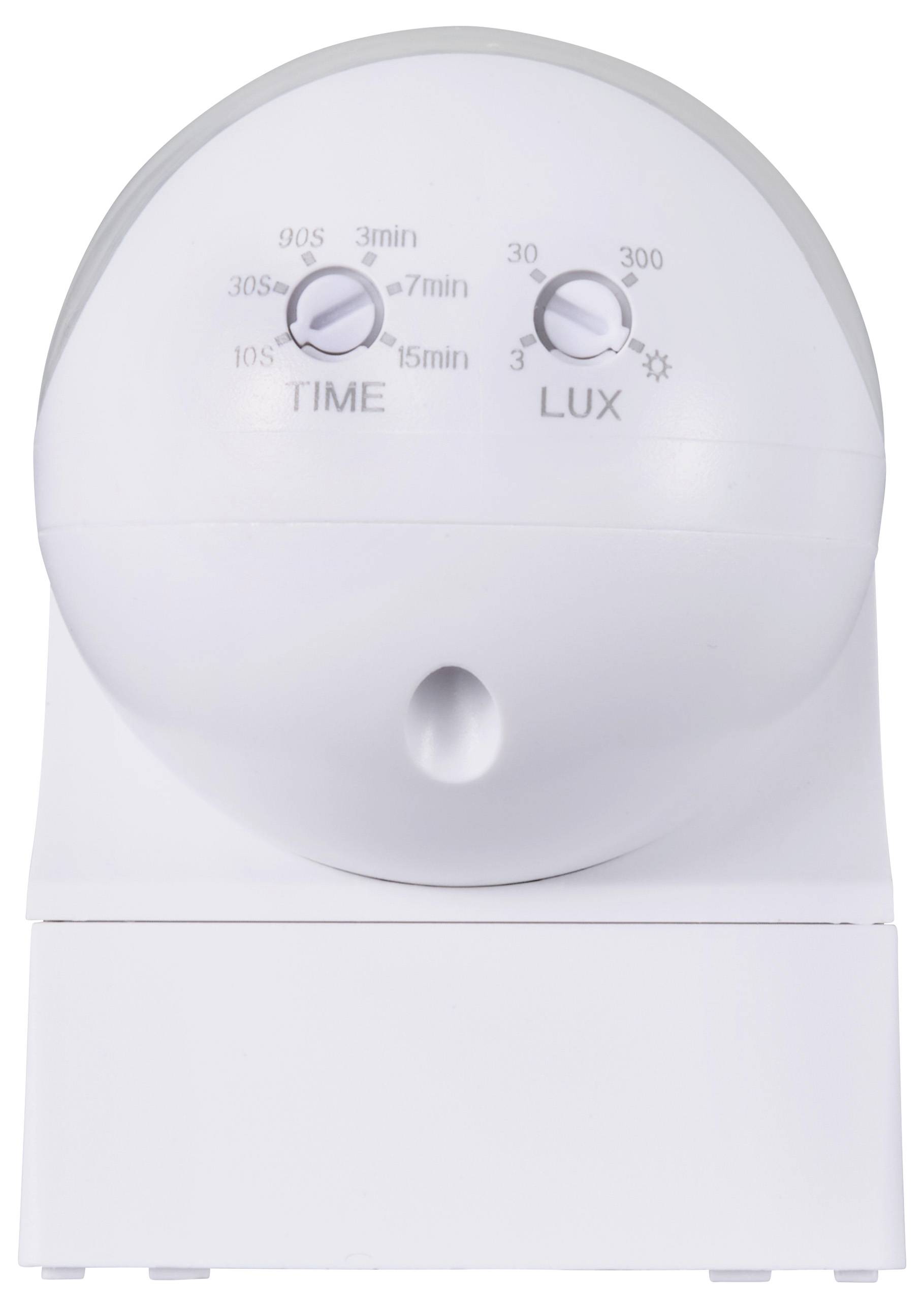

- Twilight settings
3 -2000 lx
- Time settings
10 sec - 15 min
- Factory colour
White
IP44
- Length
81 mm
- Width
56 mm
- Height
69 mm
- Dim
(L x W x H) 81 x 56 x 69 mm
- Weight
96 g
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3059115 Sygonix SY-6118230 Wall-mounted, Surface-mount PIR motion detector 180 ° Relay White IP44
Warranty Terms
Warranty Terms 3059115 Sygonix SY-6118230 Wall-mounted, Surface-mount PIR motion detector 180 ° Relay White IP44
Description

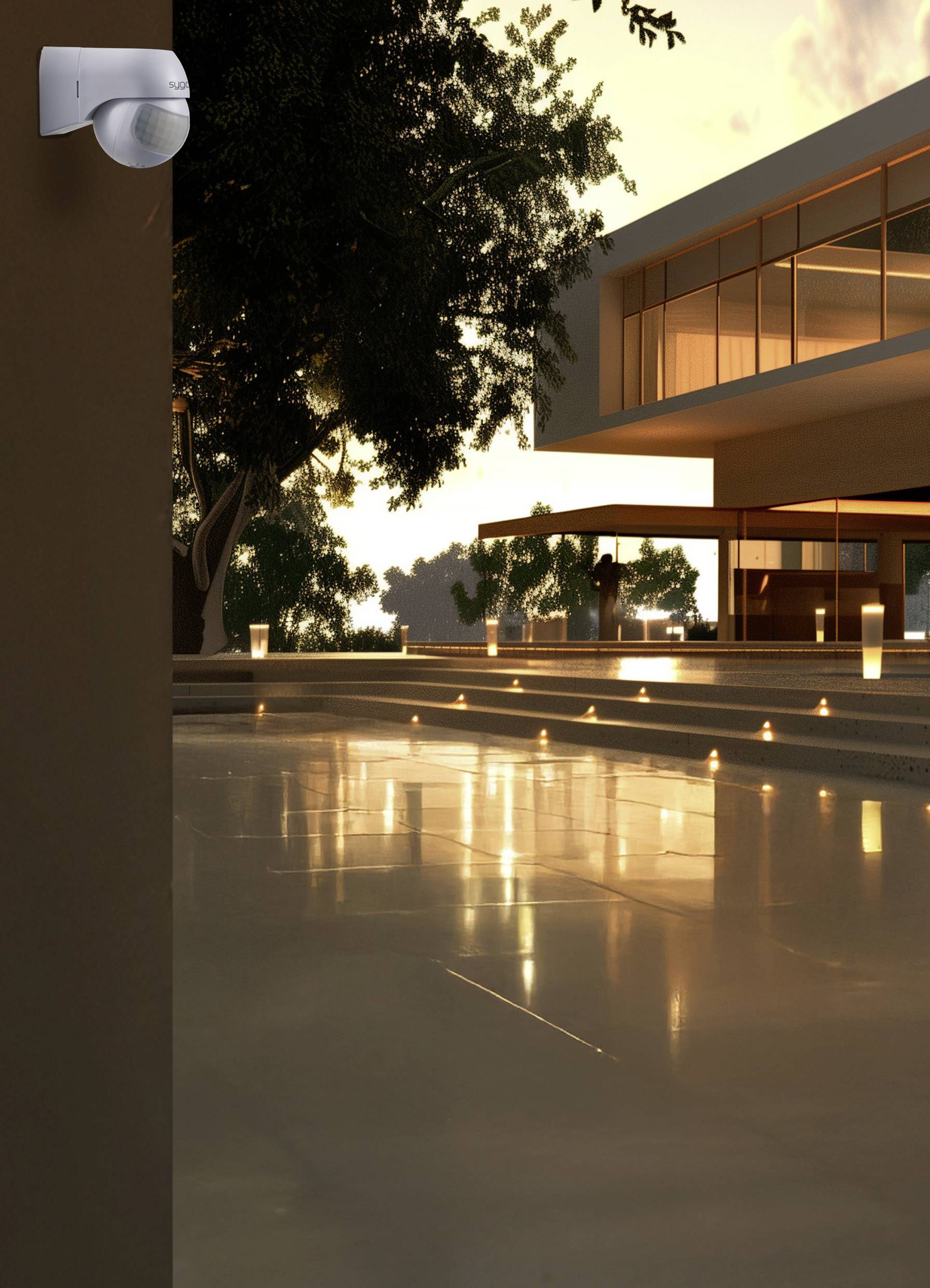

The motion detector is used for detecting motion in indoor and outdoor areas. It can be installed easily in entrance areas, driveways or in staircases. It is protected according to IP44.
To illuminate certain points optimally, connect the motion detector to a light, for example. The lamp is switched on or off automatically via the built-in PIR sensor. The sensors respond to temperature changes within the detection range. This is the case, for example, if a person or an animal with a temperature different from the ambient temperature enters the detection area.
This text is machine translated.
To illuminate certain points optimally, connect the motion detector to a light, for example. The lamp is switched on or off automatically via the built-in PIR sensor. The sensors respond to temperature changes within the detection range. This is the case, for example, if a person or an animal with a temperature different from the ambient temperature enters the detection area.
This text is machine translated.
Features
- Infrared motion sensor
- For incandescent lamps, energy-saving lamps and LED lights
- IP44

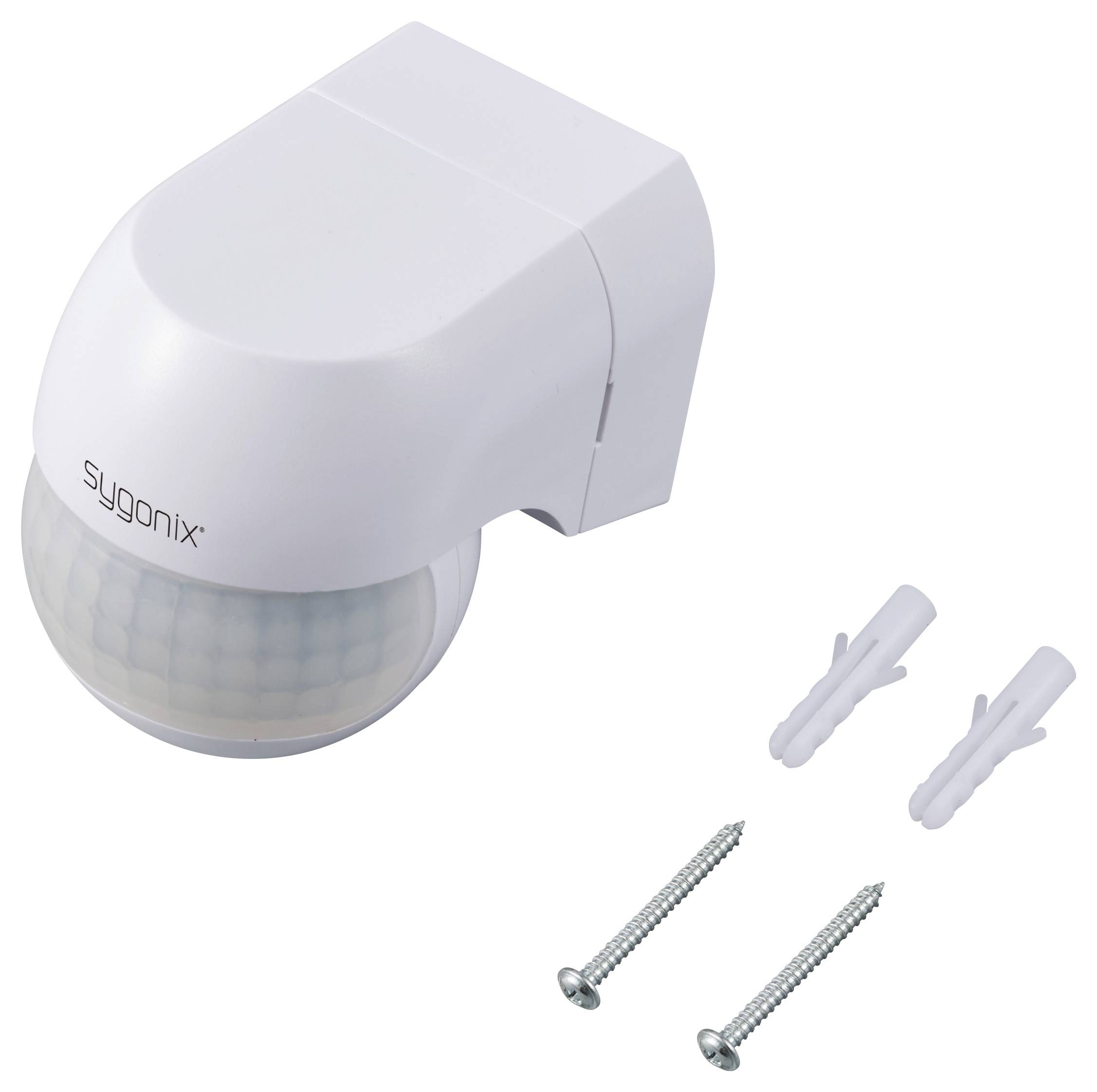

Scope of delivery
- Sensor
- 2x Screws
- 2x Dowels
- User manual
