Buy Sygonix SY-4755364 Wall, Flush mount PIR motion detector 190 ° Triac White IP65

A white motion sensor on the wall, with a semi-spherical, honeycomb-like lens in the centre for detecting movement.

A rectangular motion sensor with a curved, honeycomb-shaped sensor in the centre, surrounded by a white plastic cover.

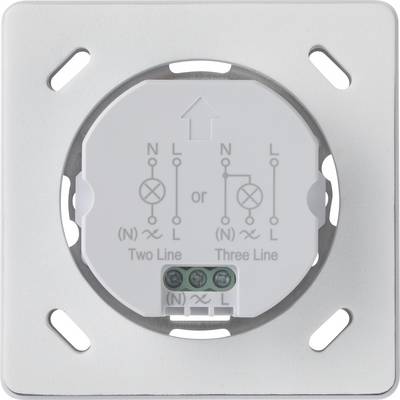

Back of a socket with connections wired for 'Two Line' and 'Three Line'. Symbols show circuit options.

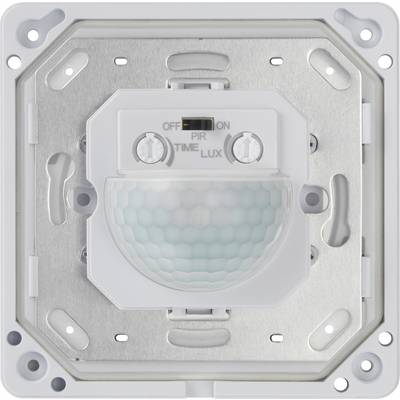

A motion sensor with a square casing. It has controls for sensitivity (PIR), time (TIME), and brightness (LUX).

A white motion sensor with a square mounting bracket, suitable for ceiling installation in indoor spaces, shows connection terminals and infrared lens.

Side view of a white infrared motion sensor with a circular dome.

Wall Mounting Kit for Motion Sensor, includes a white sensor, four screws and wall plugs. Ideal for indoor installation.

A modern house at dusk. A person walks along an illuminated path, surrounded by a minimalist garden landscape.

Motion Detector Diagram: Sensor installed at 1.8 m height; detection range extends conically up to 10 m.

1/9

Our service for you

Fast track dispatch on Fri, 11 Sep

154 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 12.60 / piece)

€ 12.60

plus VAT.

Report legal concerns

Highlights & Details

PIR UP motion sensor, 190° IP65 UP

Switching power up to 500 W
Up to max. 10 m detection distance
Weatherproof IP65

Technical specifications

Product type: PIR motion detector

Detection angle: 190°

: 10 m

Used at: Outdoors
Indoors

Mounting type: Wall
Flush mount

Operating voltage: 230 V AC

Contact type: Triac

Switching capacity (energy saving bulbs): 200 W

Switching capacity (light bulbs): 500 W

Switching capacity (LED): 200 W

Twilight settings: 3 - 2000 lx

Factory colour: White

: IP65

Length: 86 mm

Width: 86 mm

Height: 64 mm

Dim: (L x W x H) 86 x 86 x 64 mm

Weight: 126 g

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2377682 Sygonix SY-4755364 Wall, Flush mount PIR motion detector 190 ° Triac White IP65

Warranty Terms

Warranty Terms 2377682 Sygonix SY-4755364 Wall, Flush mount PIR motion detector 190 ° Triac White IP65

Description

The built-in PIR sensor detects temperature changes within a maximum range of 10 m and 190°. An additional cover of the lens enables a variable adjustment of the detection angle. The sensor can be easily installed in flush-mounted sockets and is suitable as a replacement for existing light switches. In addition, the weather-proof IP65 protection enables the use of the sensor outdoors.

This text is machine translated.
