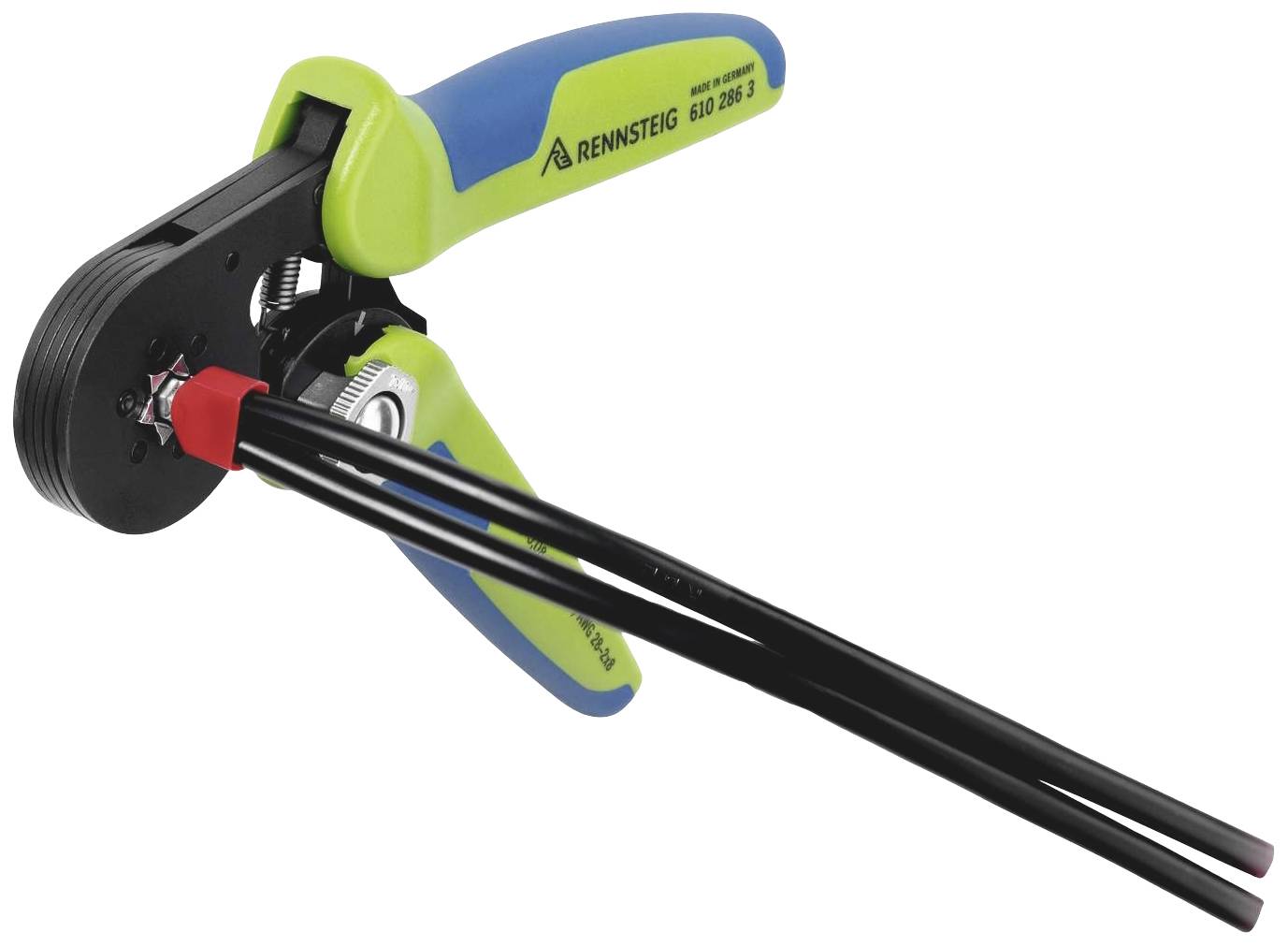

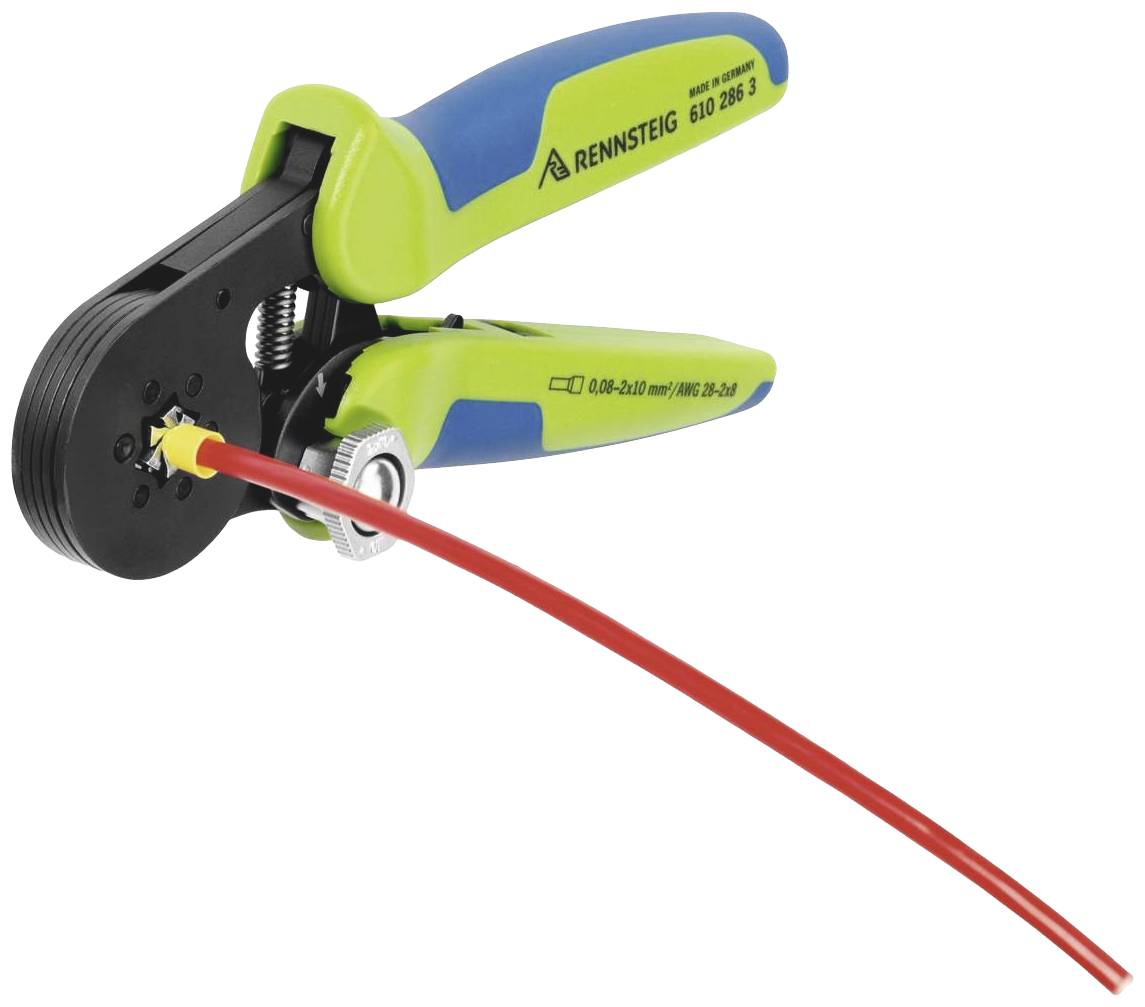

Rennsteig Werkzeuge Crimpzange 180mm 0,08-2x10mm² für 6kant-Crimpprofil 610 286 3 Crimper Ferrules 0.08 up to 16 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
Technical specifications
- Wire-end sleeves 0.08 – 16.0 mm² / AWG 28 – 6
- Twin wire-end sleeves: 2 x 0.25 – 10.0 mm2/2 x AWG 22 – 8
- Product type
Crimper
- Manufacturer part #
610 286 3
- Range of uses
Ferrules
- Crimp area
0.08 up to 16 mm²
- Crimp area AWG
8 up to 28 awg
- Crimp area (min.)
0.08 mm²
- Crimp area (max.)
16 mm²
- Crimp area AWG (min.)
28 awg
- Crimp area AWG (max.)
8 awg
- Length
180 mm
- Material properties
chrome plated
- Weight
417 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2751798 Rennsteig Werkzeuge Crimpzange 180mm 0,08-2x10mm² für 6kant-Crimpprofil 610 286 3 Crimper Ferrules 0.08 up to 16 mm²
User & Safety Instructions
User & Safety Instructions 2751798 Rennsteig Werkzeuge Crimpzange 180mm 0,08-2x10mm² für 6kant-Crimpprofil 610 286 3 Crimper Ferrules 0.08 up to 16 mm²
Description
Features
- For crimping insulated and uninsulated wire-end sleeves to DIN 46 228
- Self-adjusting to the desired wire-end sleeve size lateral introduction of wire-end sleeves in the tool Power strengthening through lever transmission for fatigue-free working Crimp-pressure is set precisely ex-factory (calibrated)
- Consistent high crimping quality by forced completion of the crimping process (can be unlocked)

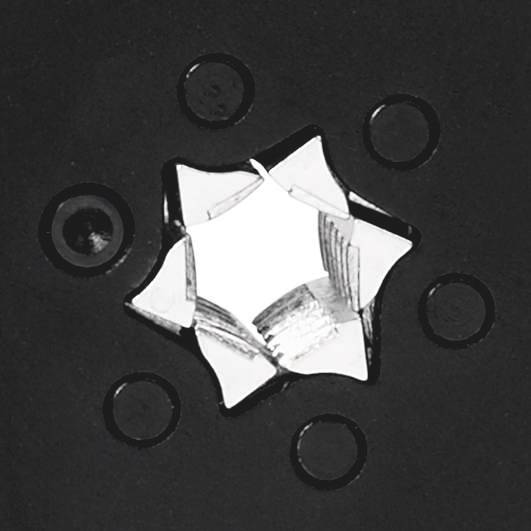

- 6-edged crimp profile with 6 profiled crimp surfaces
- Browned version
- Spring steel, specially hardened
- Ergonomic 2K handles.
