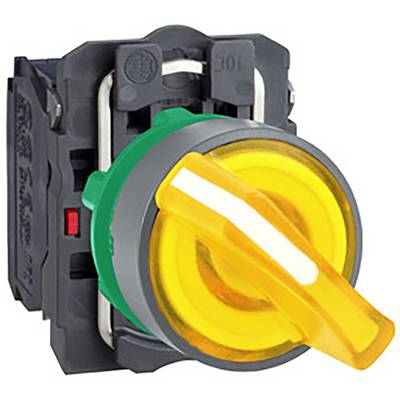

Schneider Electric XB5AK125G5C0 XB5AK125G5C0 Illuminated selector switch Switch postions 2 1 pc(s)
EAN:
Part number:
Item no:
Product type
Illuminated selector switch
Operation type
Rotary switch
Switch postions
2
Switch/button features
illuminable
Casing/button colour
Orange
Datasheet (PDF)
Number
Total (€ 49.14 / piece)
€ 49.14
plus VAT.
Technical specifications
- Product type
Illuminated selector switch
- Switch/button features
illuminable
- Casing/button colour
Orange
- Functions
latch
- Operation type
Rotary switch
- Lighting type
LED
- Colour
Orange
- Switch postions
2
- Material
Plastic
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Recess diameter
22 mm
- Content
1 pc(s)
- Type
XB5AK125G5C0
22.5 mm
Orange
2
TRUE
FALSE
Black
Screw connection
IP66
TRUE
Plastic
TRUE
Short thumb-grip
TRUE
1
1
0
13
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2914433 Schneider Electric XB5AK125G5C0 XB5AK125G5C0 Illuminated selector switch Switch postions 2 1 pc(s)
Datasheet 2914433 Schneider Electric XB5AK125G5C0 XB5AK125G5C0 Illuminated selector switch Switch postions 2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2914433 Schneider Electric XB5AK125G5C0 XB5AK125G5C0 Illuminated selector switch Switch postions 2 1 pc(s)
Description
Light selection switch made of plastic as complete device and 22mm mounting dimensions, series Harmony XB5. The light switch is orange and the actuator has 2 positions with 1 NC and 1 NO contact. For 120V AC. The outer ring is gray. The modular Harmony series with 22 mm installation dimension combines easy installation, efficiency, modern design, flexibility with the highest robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520.
This text is machine translated.
This text is machine translated.
