Buy Siemens 5SV36444 5SV3644-4 RCCB B 4-pin 40 A 0.3 A 400 V

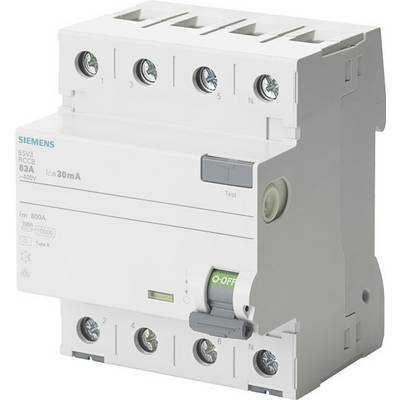

A residual current device (RCD) with toggle switch in the 'OFF' position, used to protect against electrical fault currents.

Image similar

Technical drawing of a Siemens electrical device, showing front and side views with precise dimensions in millimetres.

1/2

Image similar

Product type

RCCB

Number of pins

Release characteristics

Differential current rating

0.3 A

Nominal current - rounded value

40 A

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 273.11 / piece)

€ 273.11

plus VAT.

Report legal concerns

Highlights & Details

GROUND fault circuit breaker type B 40A 3+N-pin 300mA 400V 4TE is delayed for a short time.

Short-time delayed
Finger and hand back safely
This text is machine translated.

Technical specifications

Mechanical life (Cycles): 10000
IP20, for distributor installation, with the connected conductors

Product type: RCCB

Number of pins: 4

Release characteristics: B

Differential current rating: 0.3 A

Nominal current: 40 A

Nominal current - rounded value: 40 A

Dim: (L x W x H) 70 x 72 x 90 mm

Switch-off capacity: 0.8 kA

Content: 1 pc(s)

Nominal voltage: 400 V

Width: 72 mm

Height: 90 mm

Length: 70 mm

Depth: 70 mm

RoHS-compliant: Yes

Weight: 0

: DIN rail

: AC

: 70 mm

: 40 A

: 400 V

: 2000 V

: 4

: 0.3 A

: B

: FALSE

: 10 kA

: 3 kA

: 2

: 4

: TRUE

: 7035

: 2.5 W

: 50/60 Hz

: IP20

: TRUE

: TRUE

: 6

UKCA: no

Documents & Downloads

Datasheet

Datasheet 1891751 Siemens 5SV36444 5SV3644-4 RCCB B 4-pin 40 A 0.3 A 400 V

User & Safety Instructions

User & Safety Instructions 1891751 Siemens 5SV36444 5SV3644-4 RCCB B 4-pin 40 A 0.3 A 400 V

Description

GROUND fault circuit breaker, 4-pole, type B, short-term delayed, in: 40A, 300 mA, UN AC: 400 V of the FI switch is the residual current protection device for touch protection The patented residual current protection devices from Siemens are an important component of the SENTRON protective components for electrical installation, because they prevent life-threatening electric shocks by safely switching off dangerous fault currents against earth. Electrically ignited fires can be prevented even in the . Whether by direct contact with live parts during operation or by indirect contact with equipment, the protection is achieved primarily by rapid shutdown. The Siemens 5SV FI circuit breakers are characterized above all by: 1. Comprehensive protection for persons and property against electric shock. 2. Whether sinusoidal AC fault currents or smooth DC fault currents, Siemens offers the right type and special versions for all requirements. 3. Reliable safety during installation thanks to the standard included comprehensive and touch protection. 4. Tool-free release from the DIN rail or from the busbar network by means of convenient slide-manual operation. 5. Datamatrix code on the front of the device offers all information about the FI-circuit breaker quickly and easily. 6. Be protected according to standards: The residual current circuit breakers comply with the DIN VDE regulations. 7. Optimum technology for your safety - only from Siemens.

This text is machine translated.
