Spelsberg 92025001 Dry lining box Halogen-free (Ø x H) 68 mm x 50 mm 1 pc(s)

White round recessed electrical box with side screw holes and cable entry, suitable for the installation of electrical components.

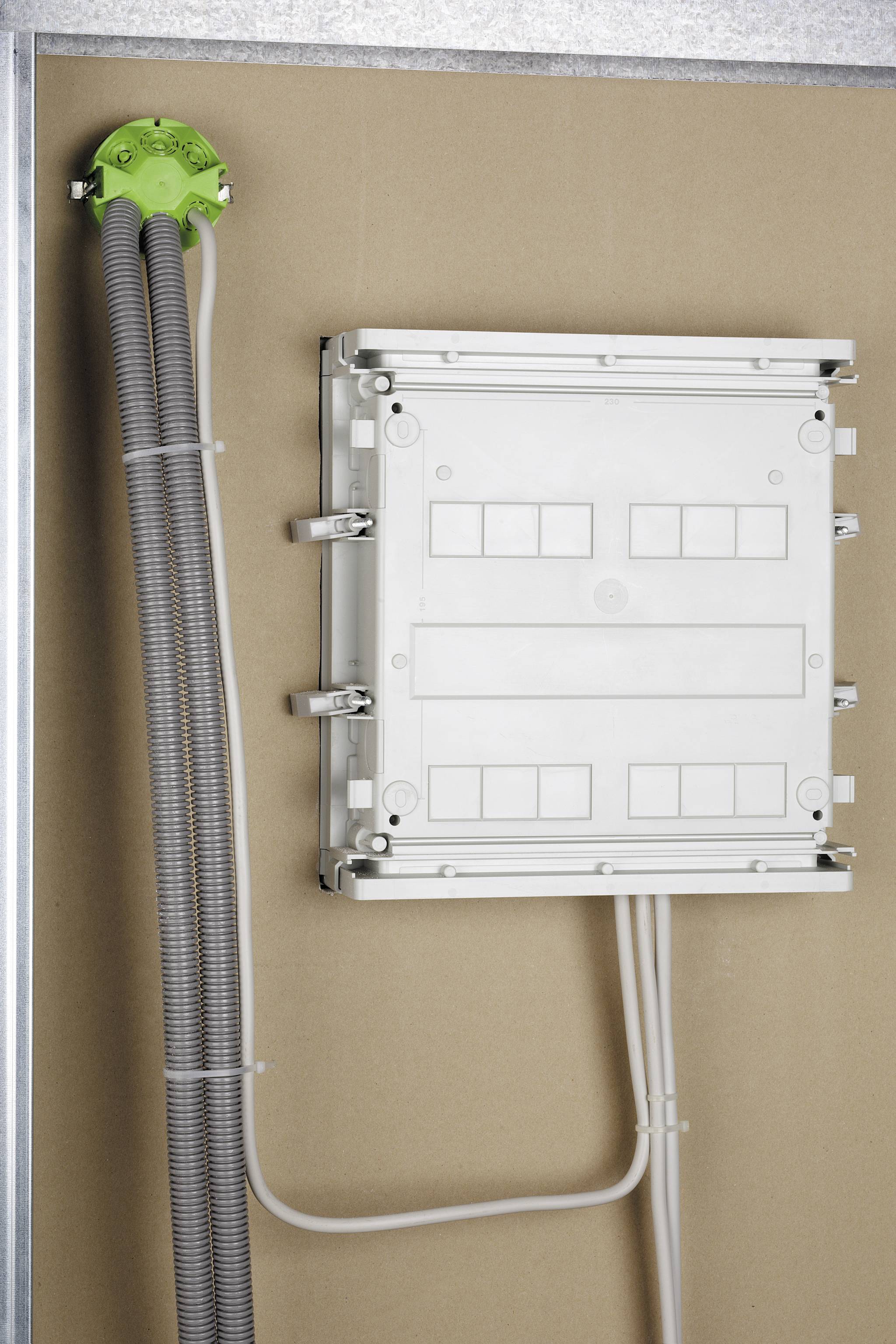

A white distribution box on a wall, with several grey cables running through a green element on the left. Electrical installation.

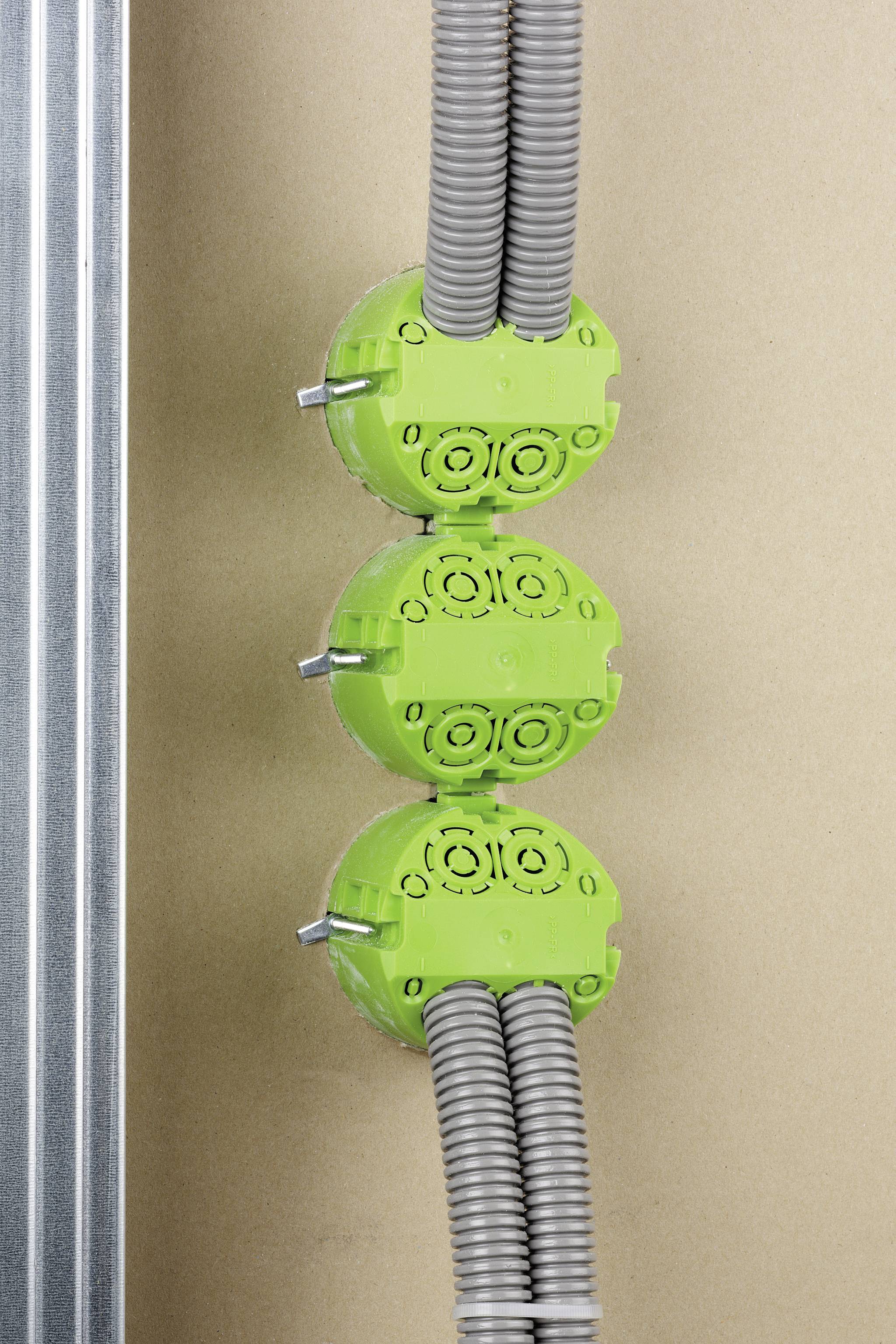

'Three green flush-mounted electrical boxes with grey corrugated conduits mounted on a wooden wall; electrical installation in a construction project.'

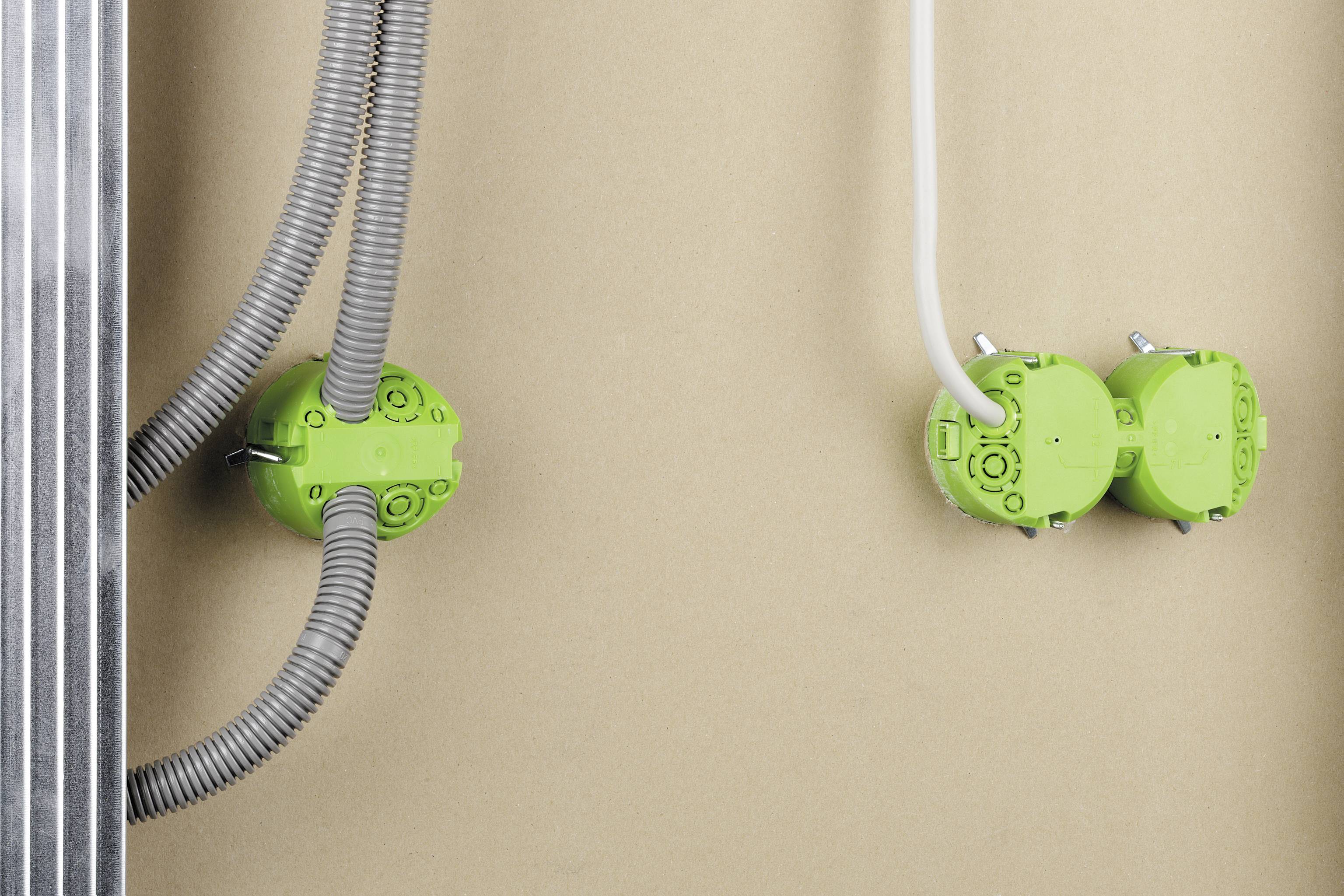

Green flush-mounted electrical boxes in a wall with grey and white cables connecting the boxes. Conduits run into the boxes.

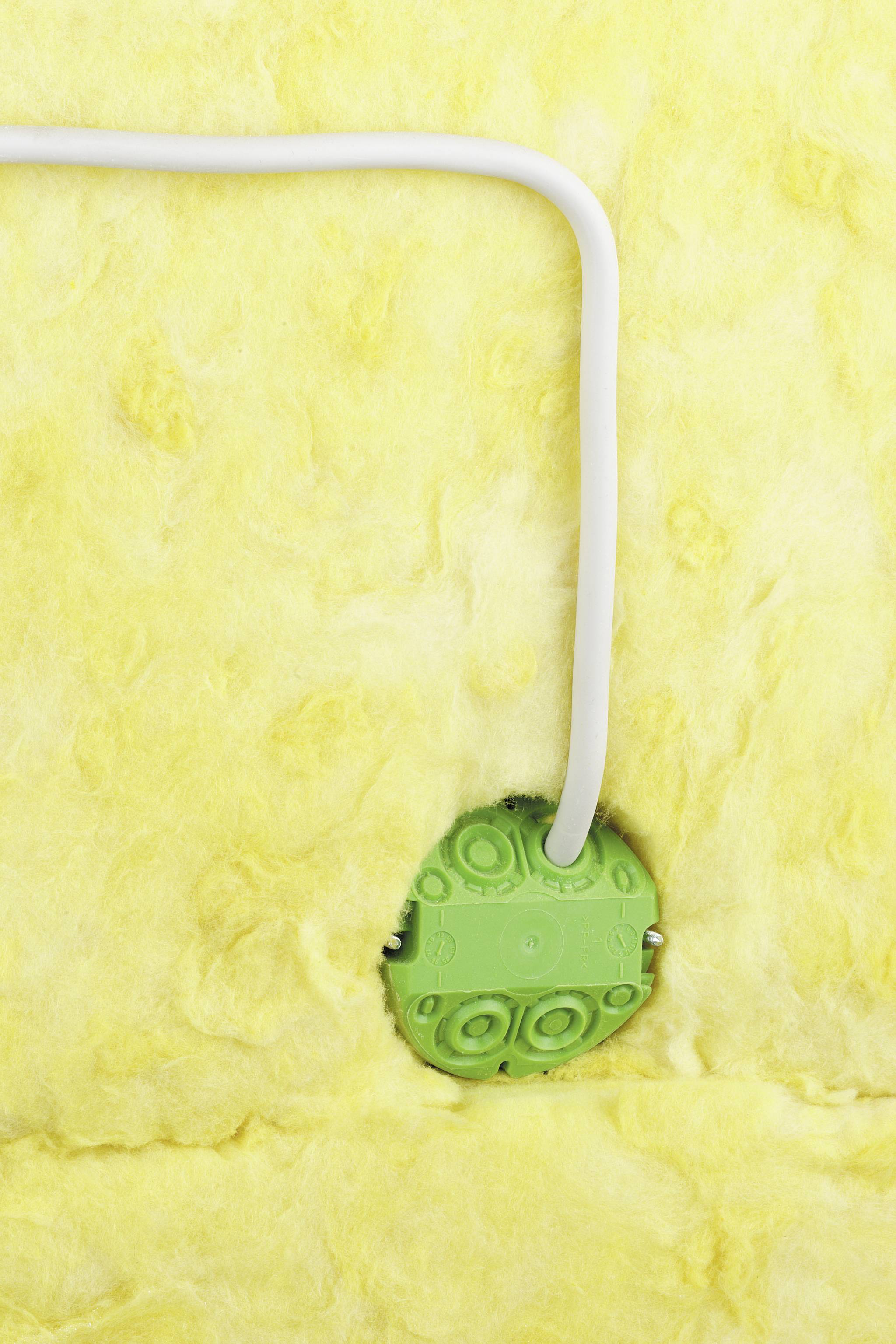

A green installation box is embedded in yellow insulation wool, with a white cable running out of it.

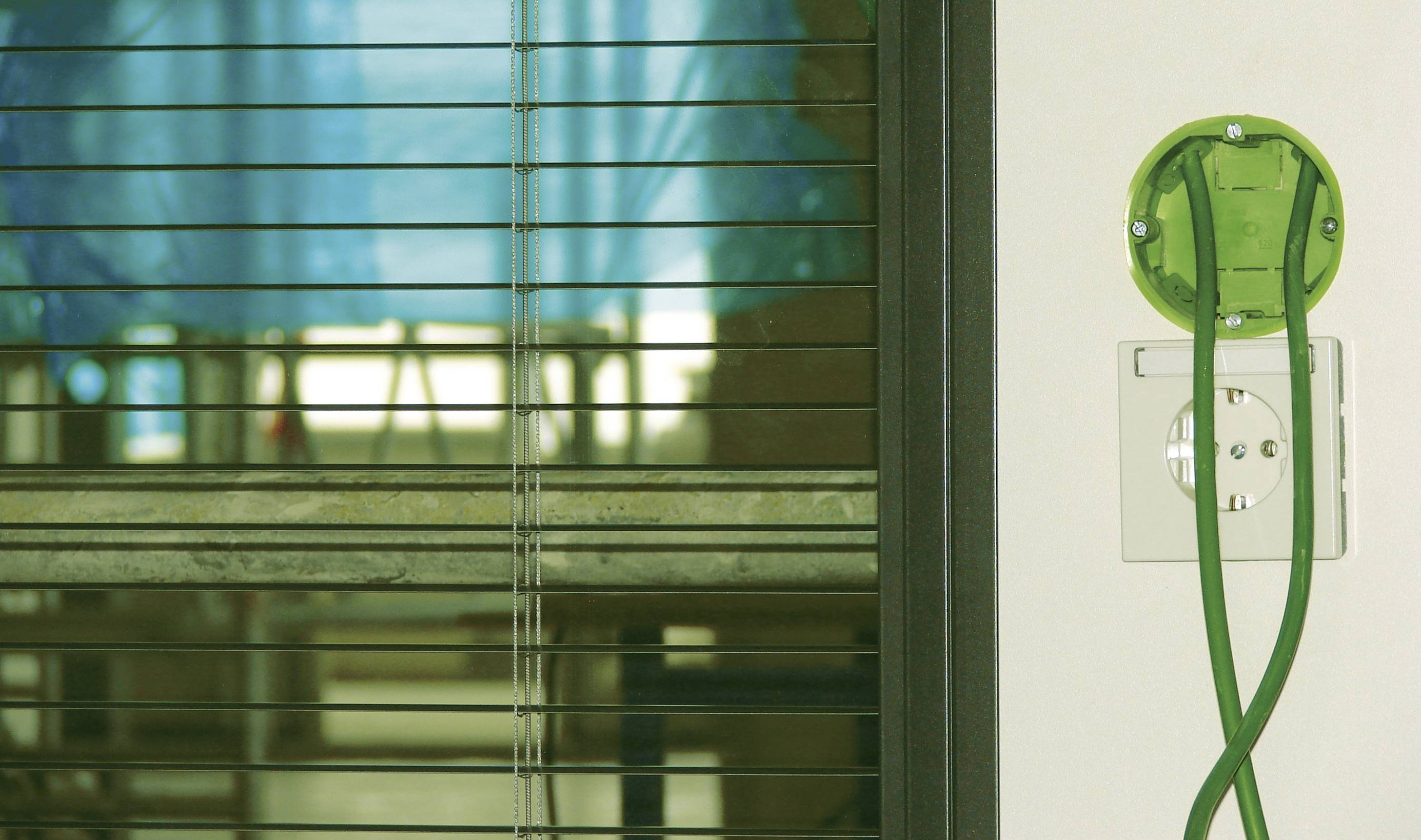

A green cable is connected to a wall socket. In the background, a window with blinds and scaffolding are visible.
1/6
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 4.29 / piece)
€ 4.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Internal depth 48 mm
  • IP30 protection
  • Max. Conductor cross-section 2.5 mm²
  • Number of introductions: 8
  • For cable diameter 4.6 - 19 mm
  • Introduction from behind: Yes
  • Can be coupled: Yes
  • Attachment of the devices: Spread
  • With screws: Yes
Product type

Dry lining box

Features

Halogen-free

Mounting type

Cavity wall

Type

single, round, plastic

Content

1 pc(s)

Factory colour

Green

Dim

(Ø x H) 68 mm x 50 mm

Length

68 mm

Width

68 mm

Height

50 mm

(Ø)

68 mm

Documents & Downloads

Datasheet

Datasheet 2378980 Spelsberg 92025001 Dry lining box Halogen-free (Ø x H) 68 mm x 50 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2378980 Spelsberg 92025001 Dry lining box Halogen-free (Ø x H) 68 mm x 50 mm 1 pc(s)

Description

Cavity wall device socket, flame-resistant and halogen-free, universal socket for panel thicknesses 1-40mm, with hole tool, device screw distance 60mm, halogen-free, drill hole 68mm, 50mm deep, with molded, patented combination bridges

This text is machine translated.

Hints

Safety-relevant component - installation only by skilled workers
