TAMS Elektronik 44-01507-01 S88-5 Signal decoders
EAN:
Part number:
Item no:
Number
Total (€ 61.99 / piece)
€ 61.99
incl. VAT
Only 4 Piece(s) available
Highlights & Details

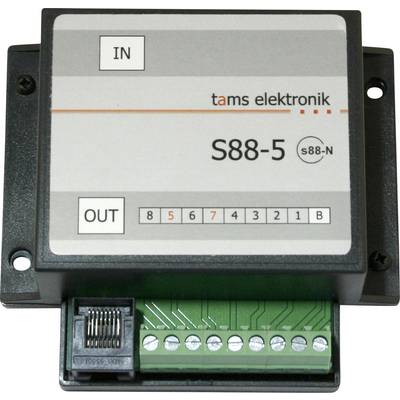

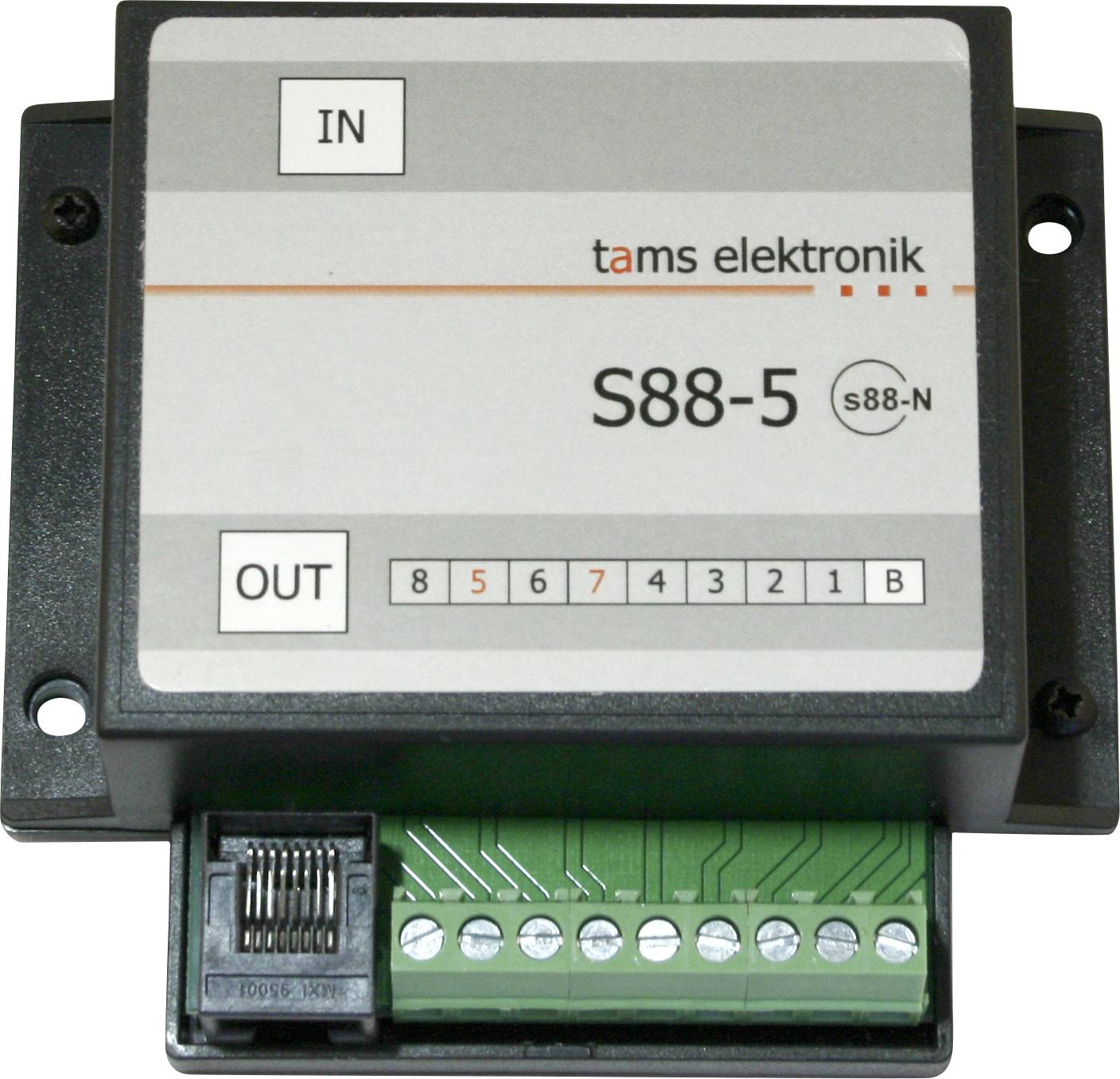

TAMS Elektronik S88-5 | s88-feedback module with integrated track occupancy detector
- Connection of the s88-Bus line via RJ-45-connections according to s88-N.
- Compatible with all components that work with the s88-bus developed by the company Märklin.
Technical specifications
- Feedback bus: S88
- Addressing: Automatic
- Number of monitored sections: Maximum 8
- Connections at the s88-Bus: RJ-45 according to S88-N
- Power supply: 5 – 15 Vdc (provided by the s88-Bus)
- Max. Current in monitored sections: 1,500 mA per section
- Current detection sensitivity 6 mA
- Board dimensions 64 x 85 mm
- Dimensions including housing: 100 x 90 x 35 mm
- Product type
Signal decoders
- Digital format
S88
- Length
100 mm
- Width
90 mm
- Height
35 mm
- Dim
(L x W x H) 100 x 90 x 35 mm
- Manufacturer part #
44-01507-01
- Type
Accessories
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3775669 TAMS Elektronik 44-01507-01 S88-5 Signal decoders
Description
Integrated track occupancy detector:
The comparatively low sensitivity (6 mA) minimizes false messages. Note: The small current that flows in DC systems when painting an axle of a vehicle with resistive paint may not be sufficient to be detected.
Galvanic separation
The "track occupancy indicator" and "s88-repeater" areas are electrically isolated from each other by means of optocouplers. This effectively suppresses interference peaks and humming loops and residual currents.
Connecting the s88 bus cable:
RJ-45 connections according to the s88-N standard
This text is machine translated.
The comparatively low sensitivity (6 mA) minimizes false messages. Note: The small current that flows in DC systems when painting an axle of a vehicle with resistive paint may not be sufficient to be detected.
Galvanic separation
The "track occupancy indicator" and "s88-repeater" areas are electrically isolated from each other by means of optocouplers. This effectively suppresses interference peaks and humming loops and residual currents.
Connecting the s88 bus cable:
RJ-45 connections according to the s88-N standard
This text is machine translated.
Scope of delivery
- 1 s88-repeater S88-5, design: Finished device in the casing
- 1 patch cables with RJ-45 connectors (length 0.5 m)
