TAMS Elektronik 44-01607-01 S88-6 Signal decoders
EAN:
Part number:
Item no:
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
Only 1 Piece(s) available
Highlights & Details

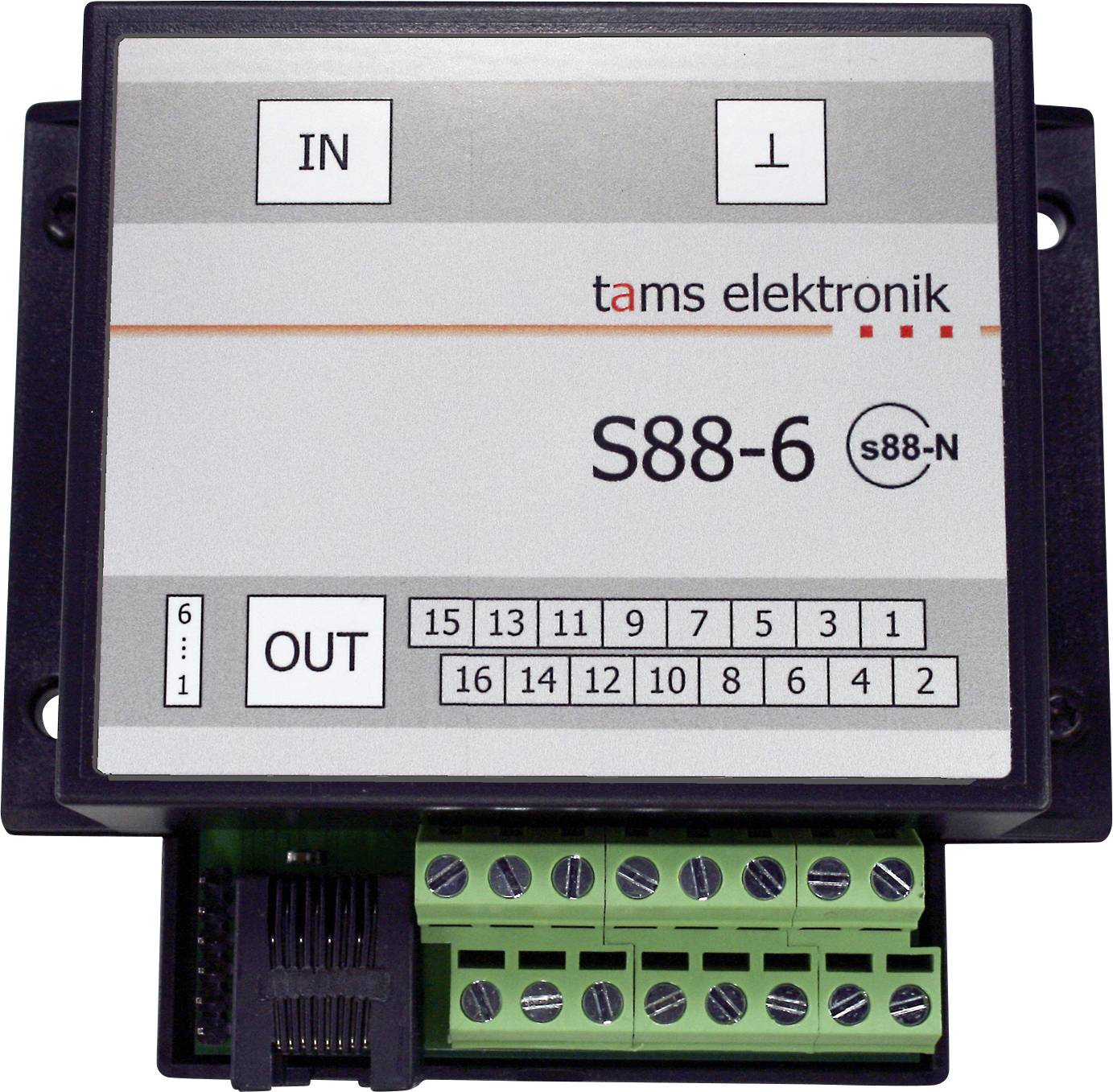

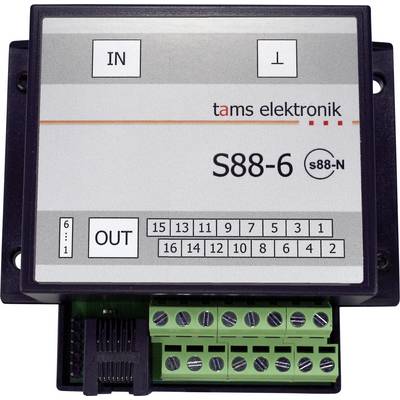

TAMS Elektronik S88-6 | s88-feedback module with additional ground connection
- Connection to the control unit via patch cable (RJ-45) or 6-pin cable
- Optimized for use in center conductor systems
Technical specifications
- Feedback bus: S88
- Addressing: Automatic
- Number of monitored sections: Maximum 16
- Connections at the s88-Bus: 2 x RJ-45 for the connection of patch cables according to s88-N. Alternatively for connection to the digital center: 1x6-pin plug connector for connection of 6-pin cable.
- Power supply: 5 – 15 Vdc (provided by the s88-Bus)
- Board dimensions 64 x 85 mm
- Dimensions including housing: 100 x 90 x 35 mm
- Product type
Signal decoders
- Digital format
S88
- Length
100 mm
- Width
90 mm
- Height
35 mm
- Dim
(L x W x H) 100 x 90 x 35 mm
- Manufacturer part #
44-01607-01
- Type
Accessories
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3775670 TAMS Elektronik 44-01607-01 S88-6 Signal decoders
Description
Additional ground connection ("Diode trick"):
In feedback sections, the locomotive is supplied via the central conductor and the continuous external conductor. An interruption of the ground connection on the continuous rail (e.g. due to contamination) directly affects the driving behavior. In worst case, the locomotive stops or does not start again after a stop in the feedback section. The problem can be solved by connecting the two external conductors with one diode. This so-called "diode trick" uses that only a half-wave of the digital voltage can be used for the feedback in the s88-bus. By installing a diode, the other half-wave is "diverted" from the insulated to the continuous rail and thus an additional ground connection is created. In the s88-6, the diodes are integrated in the circuit, so that the complex retrofitting of diodes is avoided.
Connecting the s88 bus cable:
2 x RJ-45 for the connection of patch cables according to s88-N. Alternatively for connection to the digital center: 1x6-pin plug connector for connection of 6-pin cable.
Technical data
Number of inputs: 16
Connection of the s88-Bus line: 2 x RJ-45 for the connection of patch cables according to s88-N. Alternatively for connection to the digital center: 1x6-pin plug connector for connection of 6-pin cable.
Addressing: Automatic
Receipts: Ground contact
Dimensions of the board 72 x 82 mm
This text is machine translated.
In feedback sections, the locomotive is supplied via the central conductor and the continuous external conductor. An interruption of the ground connection on the continuous rail (e.g. due to contamination) directly affects the driving behavior. In worst case, the locomotive stops or does not start again after a stop in the feedback section. The problem can be solved by connecting the two external conductors with one diode. This so-called "diode trick" uses that only a half-wave of the digital voltage can be used for the feedback in the s88-bus. By installing a diode, the other half-wave is "diverted" from the insulated to the continuous rail and thus an additional ground connection is created. In the s88-6, the diodes are integrated in the circuit, so that the complex retrofitting of diodes is avoided.
Connecting the s88 bus cable:
2 x RJ-45 for the connection of patch cables according to s88-N. Alternatively for connection to the digital center: 1x6-pin plug connector for connection of 6-pin cable.
Technical data
Number of inputs: 16
Connection of the s88-Bus line: 2 x RJ-45 for the connection of patch cables according to s88-N. Alternatively for connection to the digital center: 1x6-pin plug connector for connection of 6-pin cable.
Addressing: Automatic
Receipts: Ground contact
Dimensions of the board 72 x 82 mm
This text is machine translated.
Scope of delivery
- 1 s88-repeater S88-6, design: Finished device in the casing
