Name: Technaxx TX-244 5070 Wi-Fi, Wireless IP Mini CCTV camera
Brand: Technaxx
SKU: 3016279
Availability: InStock

A black solar panel on a white wall mount, for utilising solar energy. Ideal for environmentally friendly applications.

A white soap dispenser with a round viewing window to check the fill level and a small round button to dispense soap.

White, cylindrical, technical device with a shiny black lid. It has a front cover with a square recess and opening.

Included is a surveillance camera set with two mounting brackets, solar panel, cables, and mounting hardware. Ideal for outdoor monitoring.

Solar-powered security camera mounted on a wall. Camera positioned on the left, solar panel on the right. Ideal for sustainable, energy-efficient security.

Packaging for a TechNaxx Solar Outdoor IP Camera TX-144 with illustrations of camera applications and technical specifications on the box.

Security camera mounted on a wall, connected to a solar module. Cars and buildings in the background suggest a car park.

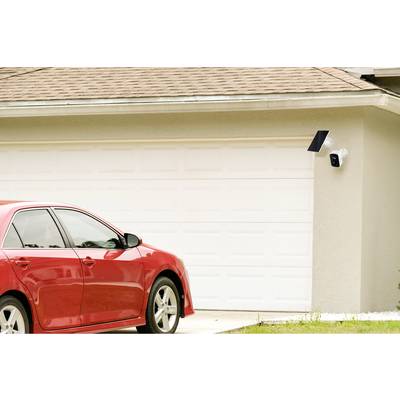

Red car parked in front of a closed, white garage. A surveillance camera with a solar panel is mounted on the exterior wall.

A person is holding a smartphone displaying live footage from a security camera. The camera is mounted on a house.

Security camera with solar panel casting light on a wall. A hand holding a smartphone displaying a house surveillance image.

1/10

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

17 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Wi-Fi, Wireless IP-Compact camera;TechnaxxTX-244;5070Outdoors, Indoors

Full HD video resolution 2560x1440
PIR motion detection
Lasting, autonomous operation
Permanent solar charge
Viewing angle 110° / 62°

Technical specifications

Product type: Mini CCTV camera

Camera type: Compact camera

Sensor size: 1/3,2" (4,54 x 3,42 mm)

Sensor type: CMOS

: not cloud-enabled

Focal length: 2,8 mm

Max. viewing angle hor.: 110°

Vertical viewing angle: 62°

App compatibility: Yes

Transfer type: Wi-Fi
Wireless

Wi-Fi standard: IEEE802.11b
IEEE802.11n
IEEE802.11g

Light sensitivity (+ IR): 0.01 lx

Light sensitivity (- IR): 1 lx

IR range (max.): 10 m

Used at: Outdoors
Indoors

Type: microSD card (up to 128 GB)

Width: 5.70 cm

Height: 5.50 cm

Depth: 8.70 cm

Dim: (W x H x D) 5.70 x 5.50 x 8.70 cm

Weight: 0.218 kg

Enclosure material: ABS-PC

Factory colour: White (glossy)

: IP65

Signal standard: IP

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3016279 Technaxx TX-244 5070 Wi-Fi, Wireless IP Mini CCTV camera

User & Safety Instructions

User & Safety Instructions 3016279 Technaxx TX-244 5070 Wi-Fi, Wireless IP Mini CCTV camera

Conformity certificate

Conformity certificate 3016279 Technaxx TX-244 5070 Wi-Fi, Wireless IP Mini CCTV camera

Warranty Terms

Warranty Terms 3016279 Technaxx TX-244 5070 Wi-Fi, Wireless IP Mini CCTV camera

Description

Discover the innovative solar outdoor IP camera TX-244, your reliable monitor around the clock. This outdoor & indoor camera, state-of-the-art technology, can be used in all outdoor areas such as the garden, house entrance, parking, adjoining buildings, warehouses, and can also easily monitor all the interior areas of your house. The special highlight of the TX-244 is that it also has an external 5V/0.3A solar panel in addition to the large built-in 5200mAh lithium polymer battery. This means you can use the advantages of solar energy independently and permanently provided by sunlight, and you do not need to worry about battery replacement or cable connections. Thus the Technaxx solar outdoor IP camera TX-244 combines advanced monitoring technology with environment-friendly energy generation.

This text is machine translated.

Features

Full HD video resolution 2560x1440 with max. 15fps
PIR motion detection up to ~8m with automatic recording
Continuous, self-sufficient operation thanks to permanent solar charging (sunlight required); included Solar panel
Wide viewing angle 110° horizontal and 62° vertical
4MP 1/3.2" CMOS image sensor
Lens: F=2.8mm, fixed focus
Viewing angle: Horizontal 110°/ vertical 62°
Min Illumination: Colour mode: 1 lux; night mode: 0.01 lux with 8 IR LEDs or 1 white LED
IR range ~8-10m; IR 850nm, white 1W, 140lm, 6000K
Video resolution: HD (2560x1440), liquid (640x360)
Video frame rate / file format: 15fps / .TS
Audio source: Built-in microphone with -38DB noise reduction
Audio compression standard: G711A/AAC-8K16bits
Speakers: 8Ω 2W
Wi-Fi: 2.4 GHz 802.11b/g/n
Wi-Fi security/ range WPA2 /max. 15m (open field)
Radiated output power max.: 100mW
Memory: Supports MicroSD(HC/XC) cards up to 128GB (FAT32/ exFAT) (class 10)
File size: Night: B/W: 5-6MB/min (32 GB = 3 days continuous recording) / Day; Color: 6-7MB/min (32 GB = 3 days continuous recording)
PIR motion detection: Distance: ~8m (open space) / angle: 120°
PIR triggering time: 0.35s
Power consumption: Normal mode ≤ 2W / sleep mode ≤ 0.1W
External charger: DC5V/1A (not included); Solar panel: 5V / 0.3A (included)
Built-in lithium polymer rechargeable battery 3.7V, 5200mAh
Operating time: Up to 6 months (or up to 7 hours of continuous recording - mixed day and night) depending upon use and motion trigger
Standby time: Up to 6 months (no use, no triggers)
Charging time: Up to 5-7 hours (using a USB power adapter with DC5V/1A)
Operating conditions: -20-50 C; RH below 95% (no condensation)
Protection class IP65; dust and waterproof

Scope of delivery

With 6 bits. Solar panel 1.6W
USB power cable (1m)
2 mounting stand
6 screws & plugs
