Tektronix MSO22 2-BW-350 Digital 350 MHz 1.25 GS/s 8 Bit Digital storage (DSO) 1 pc(s)

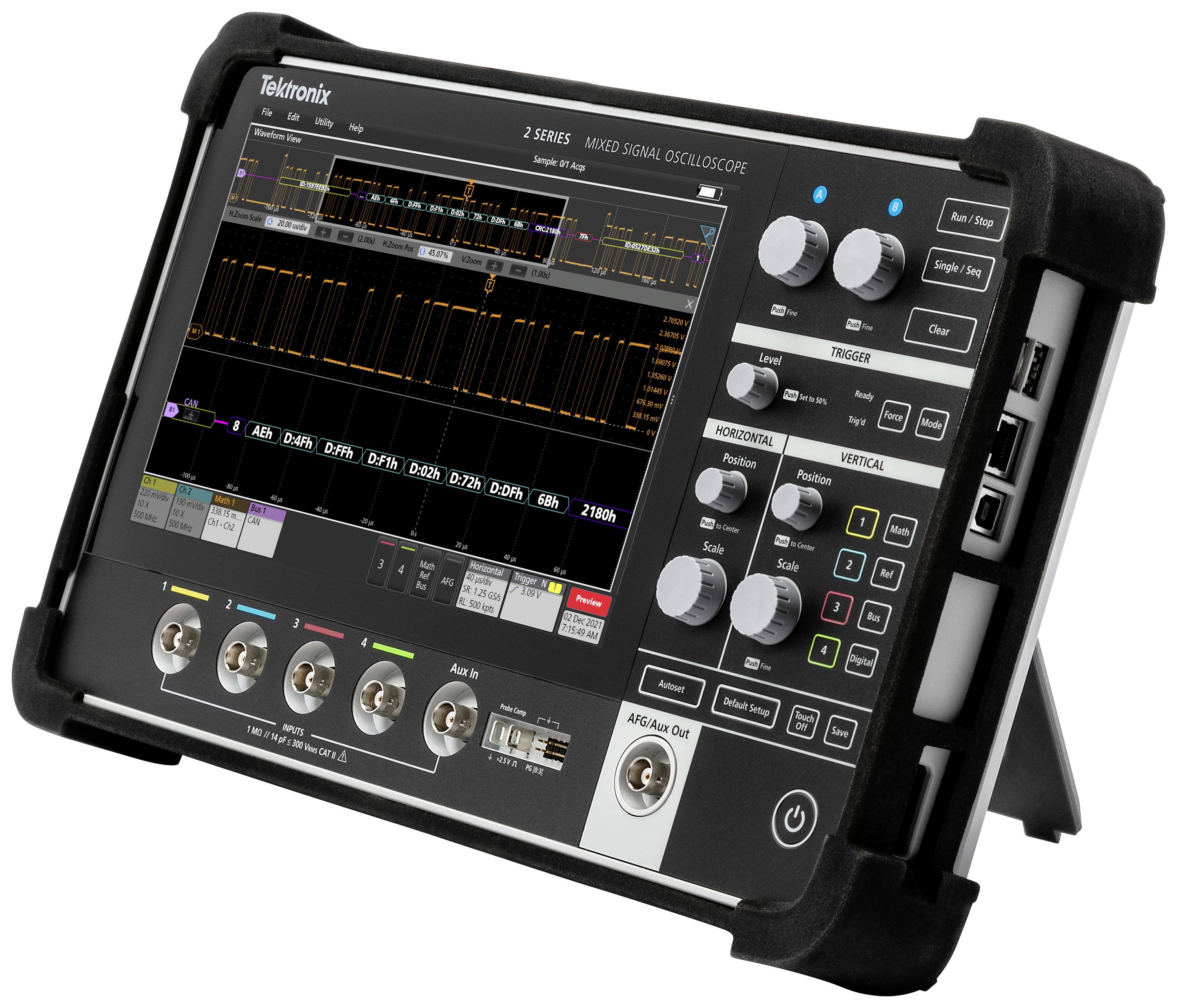

Digital oscilloscope with a colourful display shows various waveforms and measurement values for electronics and technical analyses.

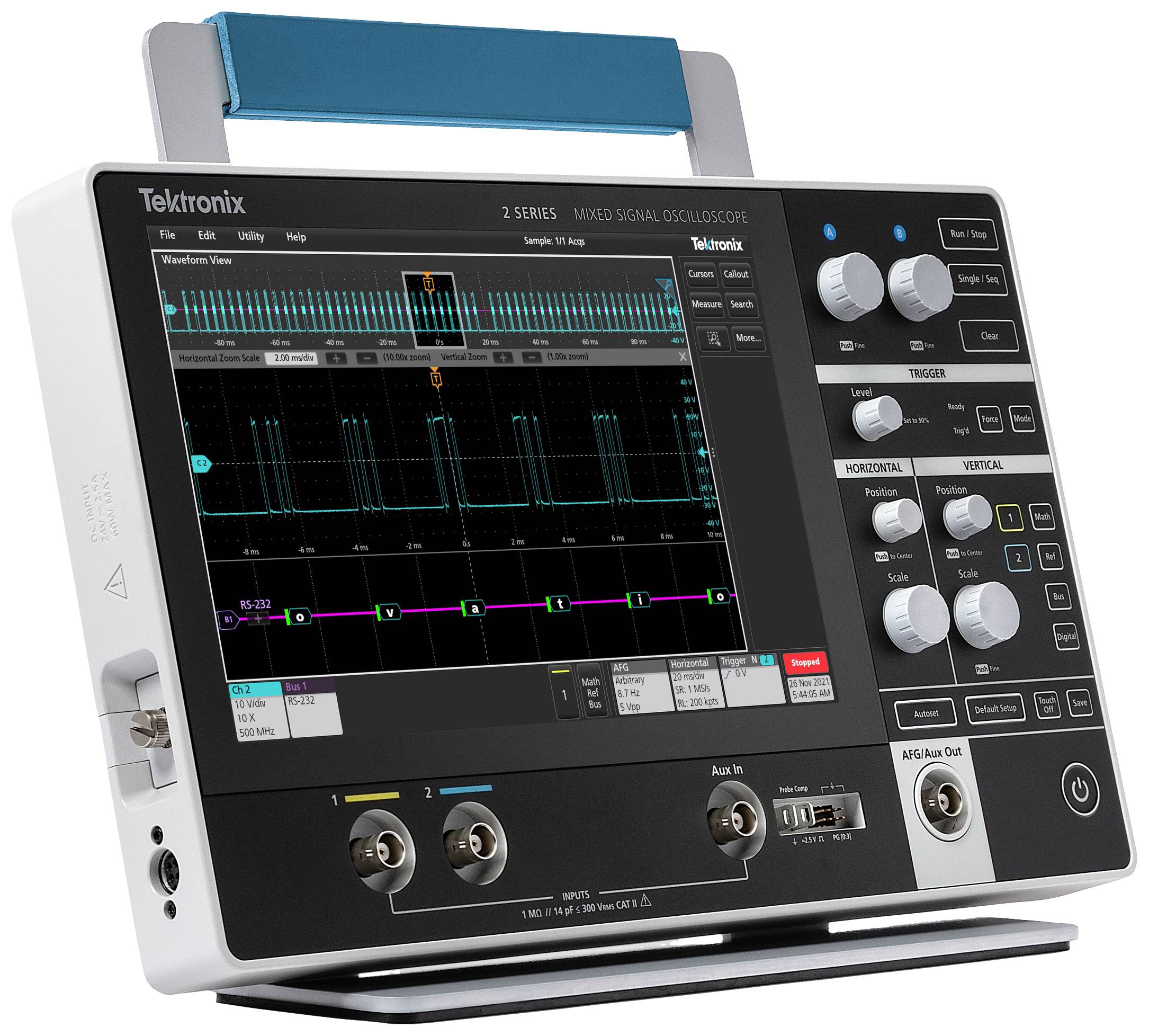

An oscilloscope with a displayed signal diagram on the screen, surrounded by various controls and connectors.

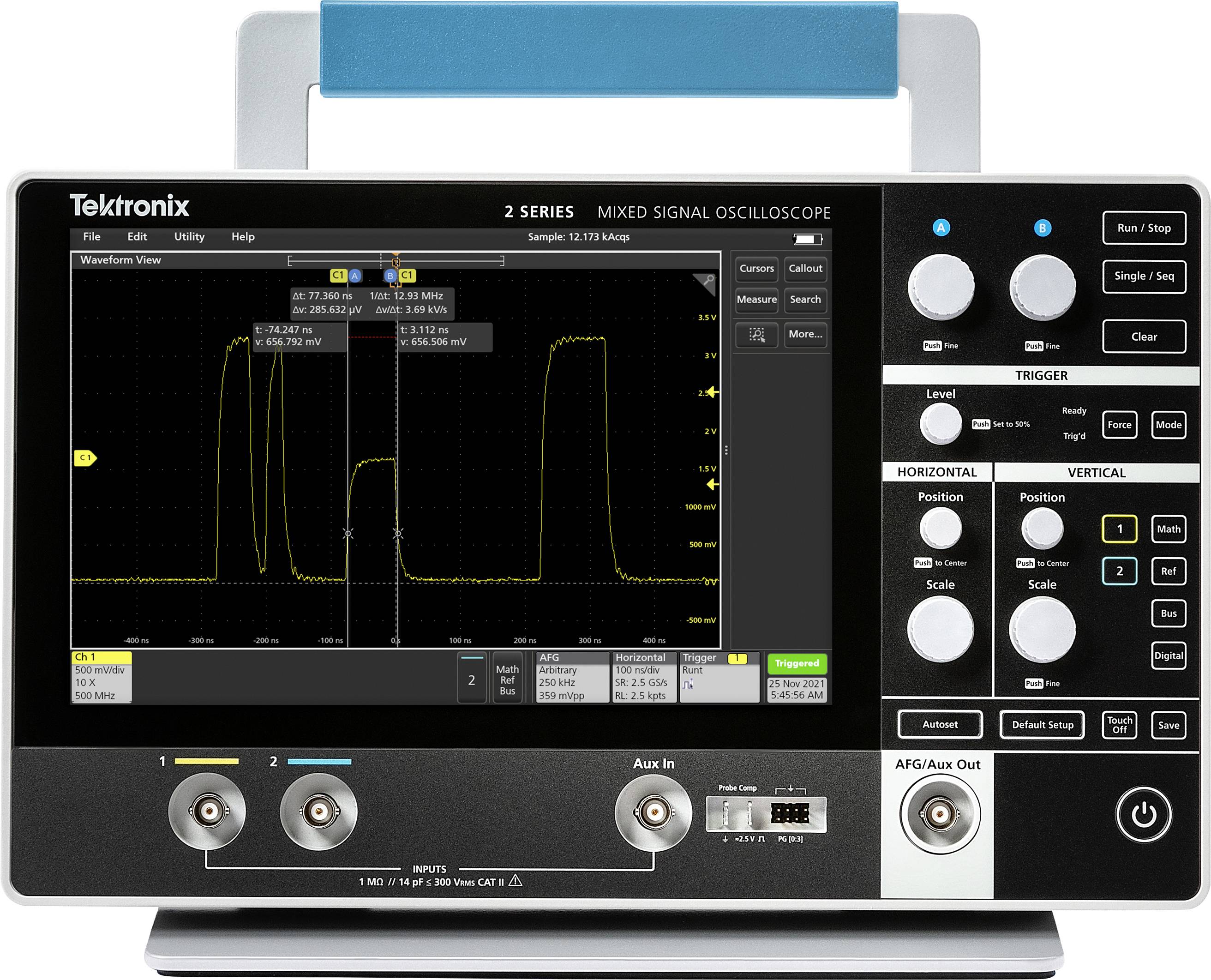

A mixed-signal oscilloscope from Tektronix's Series 2 displays a signal waveform on the screen, surrounded by various controls for signal analysis.
Flat section of a grey electrical device with sockets and buttons, seemingly the side of a household appliance.

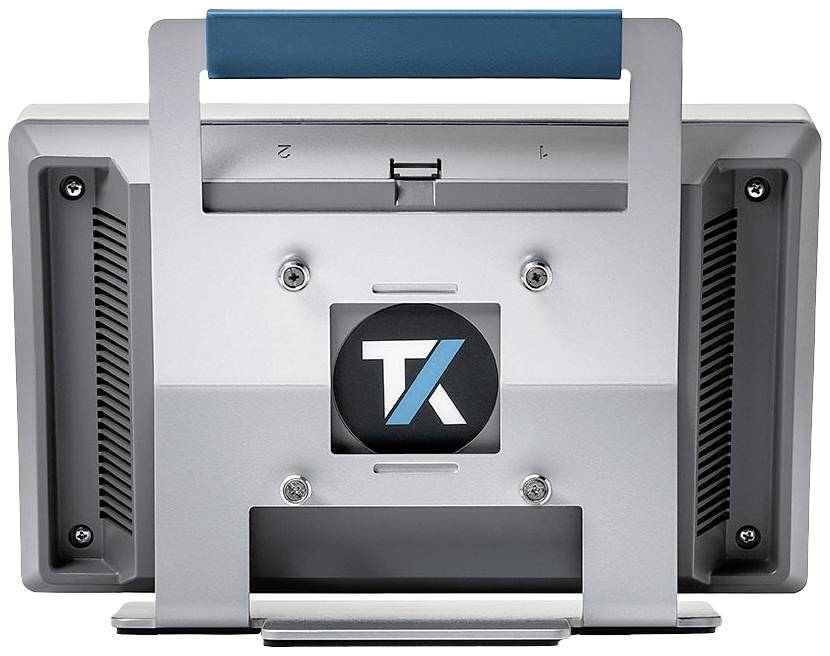

Silver technical device with a handle, marked with a black 'TK' emblem in the centre.

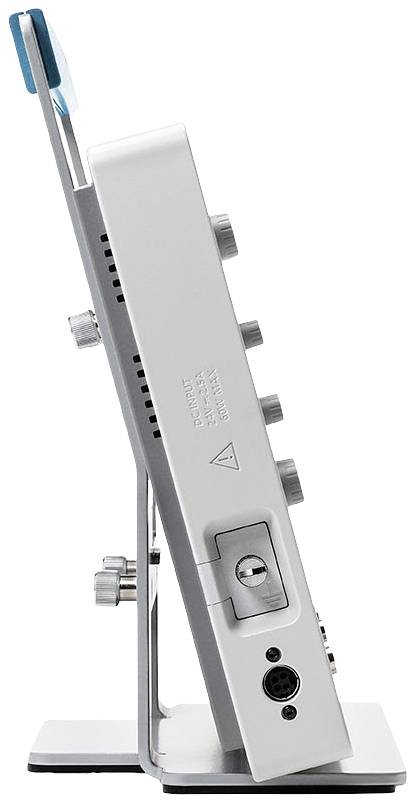

Side view of a white electronic device on a stand, with buttons and ports visible, showing technical details and design.
Students in an electronics laboratory are working with oscilloscopes and computers on circuits. Further students can be seen in the background.
1/7
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 8,475.00 / piece)
€ 8,475.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only available for business customers
14-day return policy included
Report legal concerns

Highlights & Details

Oscilloscope, 2 CH, 350MHz

  • 350 MHz
  • No. of analogue inputs 2

Technical specifications

Product type

Digital

Bandwidth

350 MHz

Channel sample rate

1.25 GS/s

Resolution

8 Bit

Screen size

10.1 inch

Oscilloscope features

Digital storage (DSO)

No. of analogue inputs

2

Manufacturer's standards (no certificate)

Power supply (details)

230 V AC

Dim

(L x W x H) 344 x 210 x 40.4 mm

Weight

1800 g

Display

1280 x 800 p

Width

210 mm

Height

40.4 mm

Length

344 mm

Type

MSO22 2-BW-350

Documents & Downloads

Datasheet

Datasheet 2585639 Tektronix MSO22 2-BW-350 Digital 350 MHz 1.25 GS/s 8 Bit Digital storage (DSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2585639 Tektronix MSO22 2-BW-350 Digital 350 MHz 1.25 GS/s 8 Bit Digital storage (DSO) 1 pc(s)

Description

Compact, versatile oscilloscope for daily troubleshooting. With a capacitive touch screen and an extremely intuitive user interface specially designed for touch, the MSO Series 2 is part of Tektronix' award-winning next-generation oscilloscopes family. The common user interface and programmatic interface make it easy to use all Tektronix next-generation oscilloscopes. An extensive catalog of compatible probes and a rounded accessory program make the MSO Series 2 the most powerful and versatile device in its class, suitable for a wide range of applications.Intuitive touch screen with simplified control panel. The MSO Series 2 offers the same award-winning user interface as Tektronix' top-of-the-line oscilloscopes and supports touch interactions you expect from a touch-enabled consumer device. The simplified front panel contains the most important buttons and buttons with color-coded LED ring lights, which enable quick access and easy setting of the most commonly used device settings.

This text is machine translated.
