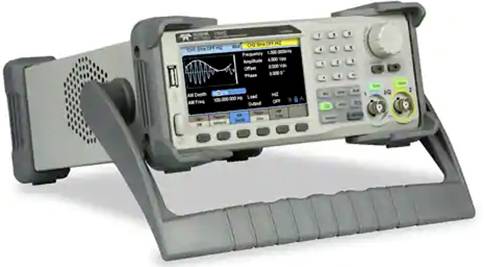

Teledyne LeCroy T3AFG350 Mains-powered 1 µHz - 350 MHz 2-channel Sinus, Rectangle, Arbitrary, Triangle
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 6,461.34 / piece)
€ 6,461.34
plus VAT.
14-day return policy included
Highlights & Details
Function generatorT3AFG350
- Is suitable for complex IQ modulation option
- DDS technology
- 5 types of standard output waveforms
- Touch screen TFT LCD
Technical specifications
- Dim. W x H x D 260 x 107 x 296 mm
- Product type
Mains-powered
- Frequency range
1 µHz - 350 MHz
- Signal output types
Sinus
Rectangle
Arbitrary
Triangle
- Frequency range (sine)
1 μHz - 350 MHz
- Frequency range square wave
1 μHz - 150 MHz
- Square wave slew rate
3.3 ns
- Display
Digital
- Frequency range triangle
1 μHz - 120 MHz
- ARB frequency range
1 μHz - 5 MHz
Manufacturer's standards (no certificate)
- Frequency reading (external)
1 MHz - 300 MHz
- Weight
3.5 kg
- No. of channels
2-channel
- Max. frequency
350 MHz
- Min. frequency
1 µHz
- Features
Modulation
- Calibration service
10 calibration values per range
- Interfaces
USB host
USB device
LAN
- Voltage supply
Mains
- Type
T3AFG350
Documents & Downloads
Datasheet
Datasheet 2305677 Teledyne LeCroy T3AFG350 Mains-powered 1 µHz - 350 MHz 2-channel Sinus, Rectangle, Arbitrary, Triangle
User & Safety Instructions
User & Safety Instructions 2305677 Teledyne LeCroy T3AFG350 Mains-powered 1 µHz - 350 MHz 2-channel Sinus, Rectangle, Arbitrary, Triangle
Description
Generate waveforms with low noise and disturbing signal content with our wide range of bandwidths.
Create digital waveforms, patterns, and buses with up to 36 channels and output analogue and digital waveforms simultaneously.
The Teledyne Test Tool is a two-channel function and arbitrary generator with maximum bandwidth, 2.4 GSa/s maximum sample rate and 16-bit vertical resolution. The proprietary arbitrary & pulse technique used in the T3AFG helps to solve the weaknesses of traditional DDS generators in the generation of arbitrary, rectangular and pulse waveforms. With the above benefits, the T3AFG200 Function/Arbitrary Waveform Generator can provide the user with a variety of high fidelity, low jitter signals to meet the growing demands of a variety of complex applications.
This text is machine translated.
Create digital waveforms, patterns, and buses with up to 36 channels and output analogue and digital waveforms simultaneously.
The Teledyne Test Tool is a two-channel function and arbitrary generator with maximum bandwidth, 2.4 GSa/s maximum sample rate and 16-bit vertical resolution. The proprietary arbitrary & pulse technique used in the T3AFG helps to solve the weaknesses of traditional DDS generators in the generation of arbitrary, rectangular and pulse waveforms. With the above benefits, the T3AFG200 Function/Arbitrary Waveform Generator can provide the user with a variety of high fidelity, low jitter signals to meet the growing demands of a variety of complex applications.
This text is machine translated.
Features
- DDS technology
- Single-channel output
- Sampling rate 125MSa / s, vertical resolution of 14 bits
- Up to 16-bit vertical resolution (14-bit for 5 MHz and 10 MHz models)
- 3.5 "(5 MHz & 10 MHz) and 4.3" touch screen (40 MHz, 80 MHz, 120 MHz, 200 MHz, 350 MHz and 500 MHz) available
- Excellent analogue and digital modulation types available (ON, DSB-AM, FM, PM, PSK, FSK, ASK AND PWM)
- 5 types of standard output waveforms, 46 integrated arbitrary waveforms (including direct current)
- Complete set of modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, sweep, burst
- Input/output: Waveform output, synchronous signal output, external trigger input
- Sweep Output—change the output frequency between two frequencies
- Wiping time range: 1 ms ~ 500 s. The carrier can be sine, square, triangle and any waveform
- Burst output: An internal counter or an external control signal can be used to control / control the burst output
- Standard interfaces: USB device, USB host
- Supports the remote control
- Two-channel, maximum bandwidth of 500 MHz, maximum output amplitude of 20 Vss, high-fidelity output with 80 dB dynamic range
- High-performance sampling system with a sampling rate of 2.4 GSa/s and a vertical resolution of 16 bits. No details are lost in your waveforms.
- Extensive range of analogue and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK AND PWM
- Sweep and burst function
- 196 built-in arbitrary waveforms and optional IQ modulation function
- High-precision frequency counter
- Standard interfaces: USB host, USB device (USBTMC, LAN VXI-11)
- 4.3-inch touchscreen display for easier operation
- Is suitable for complex IQ modulation option
Scope of delivery
- Function generator
- User manual.
