Telegärtner 100023303 100023303 BNC connector Plug, straight 50 Ω 1 pc(s)

'BNC connector' and socket for connecting coaxial cables. Main component: cylindrical metal body with knurled edge.

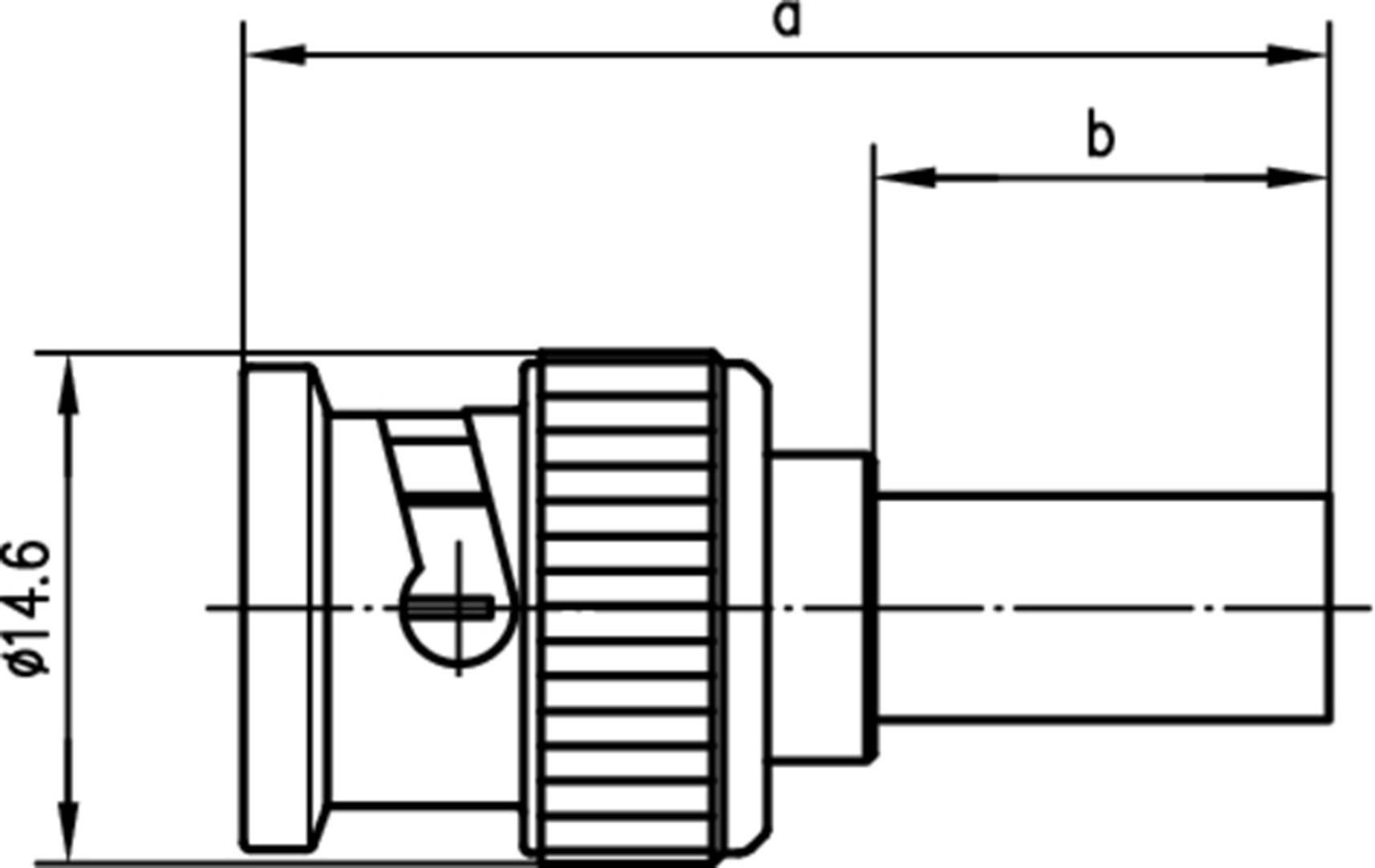

Technical drawing of a connector with dimensions: Diameter 14.6. Parts are labelled 'a' and 'b'.
1/2
Image similar
Cable category
RG 142 B/U
Product type
BNC connector
Connector type
Plug, straight
Impedance
50 Ω
Connection
Crimp
Datasheet (PDF)
EAN:
Part number:
Item no:
Currently not available
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 6.49 / piece)
€ 6.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

BNC plug connector

  • The plug socket - name, according to the shape of the inner conductor defined.
  • This text is machine translated.

Our service for you

Technical specifications

Cable category

RG 142 B/U

Product type

BNC connector

Connector type

Plug, straight

Impedance

50 Ω

Connection

Crimp

Content

1 pc(s)

Cable Ø

5 mm

Max. frequency

4 GHz

Case material

Brass nickel plated

Manufacturer part #

100023303

Insulation material

PTFE

Contact material

Brass gold plated

RoHS-compliant

Yes

Temperature range

-40 - +155 °C

Type

100023303

Seal type

Bayonet

Documents & Downloads

Datasheet

Datasheet 1366268 Telegärtner 100023303 100023303 BNC connector Plug, straight 50 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1366268 Telegärtner 100023303 100023303 BNC connector Plug, straight 50 Ω 1 pc(s)

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
