Telegärtner 100023370 100023370 BNC connector Socket, vertical vertical 50 Ω 1 pc(s)

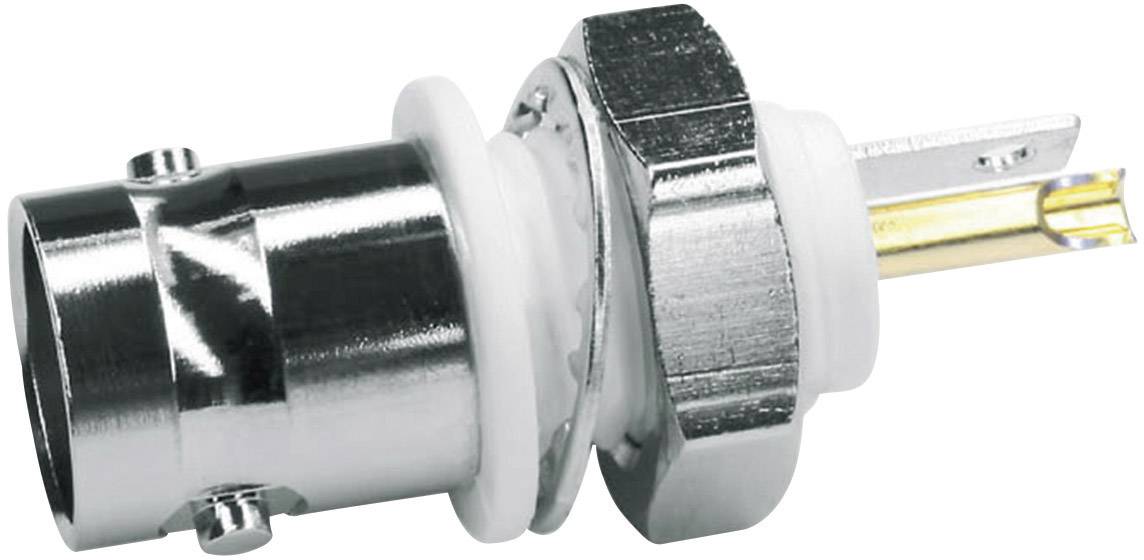

Metallic RF coaxial plug shown in side view, with screw mechanism. Used for TV or radio equipment connections.

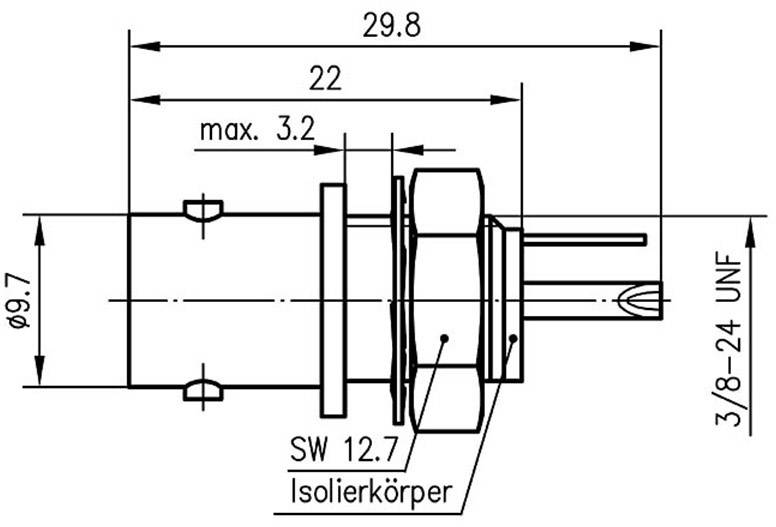

Technical drawing of a connector: Length 29.8 mm, diameter 9.7 mm, key width 12.7 mm, max. 3.2 mm depth.
1/2
Product type
BNC connector
Connector type
Socket, vertical vertical
Impedance
50 Ω
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
31 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 8.99 / piece)
€ 8.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

BNC plug connector

  • The plug socket - name, according to the shape of the inner conductor defined.
  • This text is machine translated.

Technical specifications

  • Mounting dimensions: Z 113
  • With Insulating flange white
Product type

BNC connector

Connector type

Socket, vertical vertical

Impedance

50 Ω

Connection

Soldering

Content

1 pc(s)

Mounting hole diameter

9.8 mm

Case material

Brass nickel plated

Manufacturer part #

100023370

Insulation resistance

≥ 5 GΩ

Insulation material

ABS

Contact material

Brass gold plated

RoHS-compliant

Yes

Temperature range

-40 - +155 °C

Type

100023370

Seal type

Bayonet

Factory colour

Silver (metallic)

Weight

0.008

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1090863 Telegärtner 100023370 100023370 BNC connector Socket, vertical vertical 50 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1090863 Telegärtner 100023370 100023370 BNC connector Socket, vertical vertical 50 Ω 1 pc(s)

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
