Telegärtner 100023441 100023441 BNC connector Socket, vertical vertical 50 Ω 1 pc(s)

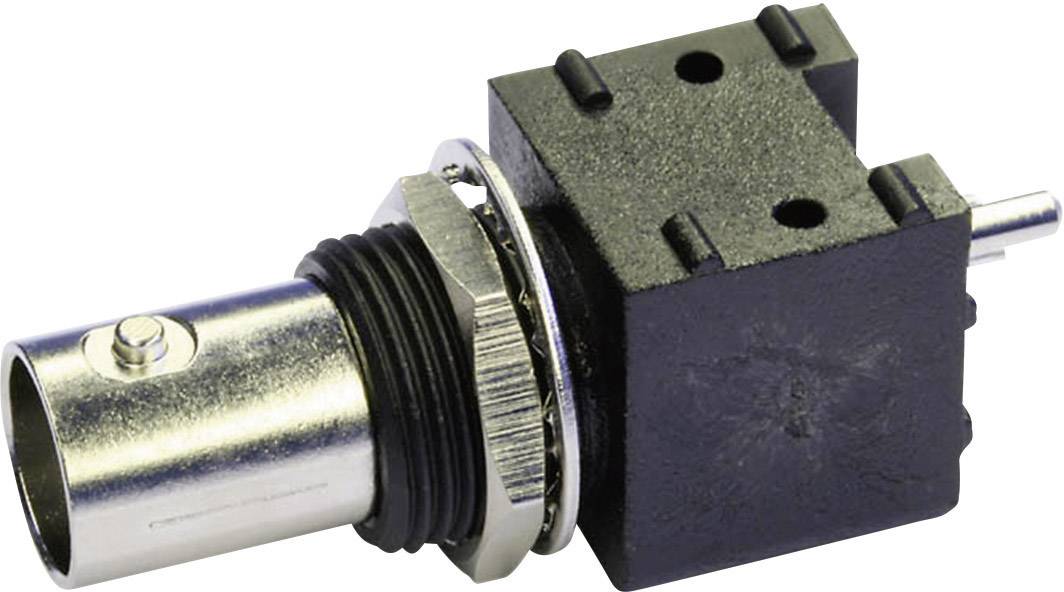

A black and silver electrical connector with a round metal connection and a rectangular plastic housing.
'Technical drawing of an electrical connector with dimensional specifications and notes on insulating body, SW 14 and max. 5.5.'
1/2
Product type
BNC connector
Connector type
Socket, vertical vertical
Impedance
50 Ω
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Mon 9 Nov
527 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 15.99 / piece)
€ 15.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

BNC plug connector

  • The plug socket - name, according to the shape of the inner conductor defined.
  • This text is machine translated.

Our service for you

Technical specifications

  • Mounting dimensions: Z04/Z42
Product type

BNC connector

Connector type

Socket, vertical vertical

Impedance

50 Ω

Connection

Soldering

Content

1 pc(s)

Mounting hole diameter

13 mm

Manufacturer part #

100023441

Insulation resistance

≥ 5 GΩ

Insulation material

PTFE

Contact material

Brass gold plated

RoHS-compliant

Yes

Temperature range

-40 - +155 °C

Type

100023441

Seal type

Bayonet

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 1090871 Telegärtner 100023441 100023441 BNC connector Socket, vertical vertical 50 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1090871 Telegärtner 100023441 100023441 BNC connector Socket, vertical vertical 50 Ω 1 pc(s)

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
