Buy testo 417-2 Anemometer 0.3 up to 20 m/s

testo 417-2 Anemometer 0.3 up to 20 m/s-0

Anemometer indicates wind speed of 2.79 m/s and volumetric flow of 603.4 m³/h. Device with display and control buttons.

An anemometer with a large fan and sensor for measuring wind speed and direction, back view showing technical specifications.

Side view of an orange and black electronic device, possibly a measuring instrument, against a white background.

An open black case displaying an anemometer, a device for measuring wind speed, with a large propeller and display.

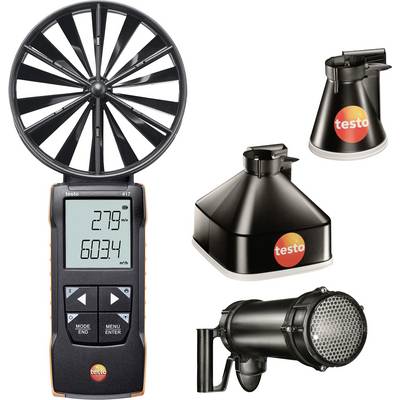

A photo shows two black devices from the manufacturer 'testo', with a measuring instrument on the left and a conical accessory on the right, with another accessory part underneath.

1/6

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 578.99 / piece)

€ 578.99

plus VAT.

Report legal concerns

Highlights & Details

testo 417 Set 2 vane anemometer with rectifier and rectifier

Simple, fast and precise measurement of flow, volume flow and temperature at air inlet and outletEfficient regulation of controlled home ventilation and fast documentation with the testo Smart APPFast in-app configuration, graphics history, second screen and data storage in the testo Smart APPTimed and selective mean

Technical specifications

Protection class IP20, IP40

Wind speed resolution: 0.01 m/s

Product type: Anemometer

Temperature reading range: 0 up to +50 °C

Air flow rate: 99999 m³/h

Accuracy: 0.1 m/s

Dim: (L x W x H) 45 x 108 x 236 mm

Accuracy: 0.5 °C

Weight: 243 g

Temperature reading range (max.): +50 °C

Temperature reading range (min.): 0 °C

Air speed reading range (max.): 20 m/s

Air speed reading range (min.): 0.3 m/s

Width: 108 mm

Height: 236 mm

Length: 45 mm

Power supply (details): 3x AA battery

Documents & Downloads

Datasheet

Datasheet 2757531 testo 417-2 Anemometer 0.3 up to 20 m/s

User & Safety Instructions

User & Safety Instructions 2757531 testo 417-2 Anemometer 0.3 up to 20 m/s

Description

The compact vane anemometer testo 417 in set 2 including two measuring transducers and a rectifier has been developed to make measurements of air inlets and outlets as well as disk valves and air conditioning and ventilation systems much easier. The integrated 100 mm impeller ensures precise results quickly. Timed and point mean values as well as the volume flow are calculated automatically in the device and shown on the display. This allows controlled home ventilation to be controlled efficiently - including rapid documentation with the testo Smart APP. The APP also supports you not only with the configuration of the measuring device and displays, stores and records the measurement values – it also makes your Smartphone a second display. The testo 417 set 2 includes two measuring funnels and a volumetric flow rectifier for precise results even at twist outlets.

This text is machine translated.

Features

The compact vane anemometer testo 417 in set 2 with two measuring rectifiers, rectifier and app connection ensure quick and precise measurement of volume flow measurements at air inlet and outlet as well as at disk valves and turning outlets in air conditioning and ventilation systems.

Scope of delivery

testo 417 - 100 mm impeller anemometer with app integrationMeasuring funnel for plate valves Measuring funnel for ventilation grille RectifierBagCalibrated protocol 3x AA battery
