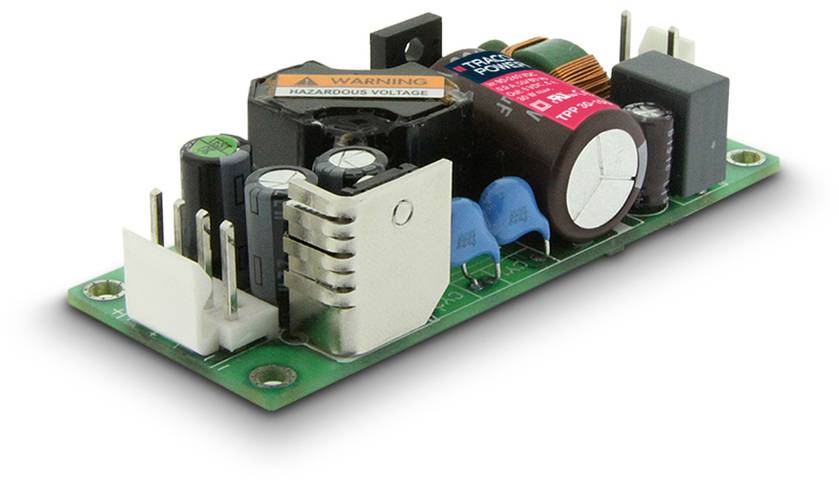

TracoPower TPP 150-112A-J SMPSU 13.2 V DC 12500 mA 150 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 84.03 / piece)
€
Highlights & Details
AC/DC-Switching power supply, TPP 150-Series
- 150 watt power supply for medical applications in 50.8 mm x 101.6 mm open frame housing
- Connection via JST-plug connection
- Safety standards according to IEC/EN/ES 60601-1, 3rd Edition, 2x MOPP
- Risk management according to ISO 14971
- Low leakage current< 100 µA suitable for BF applications
- I/O INSULATION 4000 VAC
- Protection classes I and II.
- This text is machine translated.
Technical specifications
- Max. output current
12500 mA
- Output current (max.) - rounded
12.5 A
- Dim
(L x W x H) 101.6 x 50.8 x 32.0 mm
- Height
32.0 mm
- Length
101.6 mm
- Width
50.8 mm
- Connection
Connector
- Type
open
- Type
TPP 150-112A-J
- Input voltage (max.)
264 V AC
- Min. input voltage
85 V AC
- Output current (min.)
0 mA
- Output voltage (max.)
13.2 V DC
- Output voltage (min.)
10.8 V DC
- No. of outputs
1 x
150 W
- Max. temperature
85 °C
- Min. temperature
-25 °C
- Weight
187 g
- Product type
SMPSU
