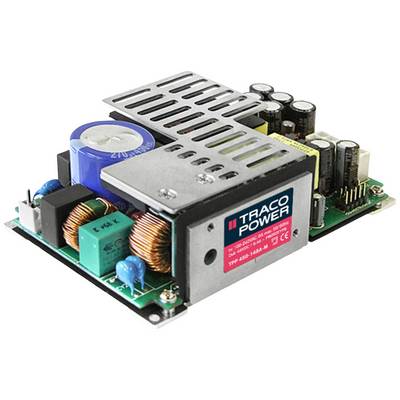

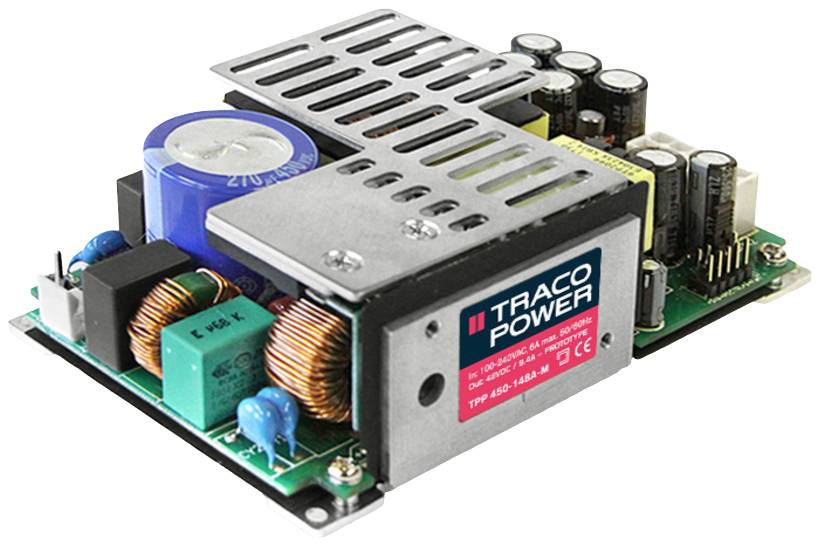

TracoPower TPP 450-124A-M SMPSU 25.9 V DC 18750 mA 450 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 210.08 / piece)
€
Highlights & Details
AC/DC switching power supply, TPP 450 series
- 450 watt medical power supply in open frame housing
- Highest performance density with dimensions 76.2 mm x 127 mm
- Connection via JST-plug connection
- Safety standards according to IEC/EN/ES 60601-1, 3rd Edition, 2x MOPP
- Risk management according to ISO 14971
- Low leakage current 100 µA suitable for BF applications
- I/O INSULATION 4000 VAC
- 5 VDC stand-by and 12 VDC auxiliary output
- This text is machine translated.
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
18750 mA
- Output current (max.) - rounded
18.75 A
- Min. input voltage
85 V AC
- Dim
(L x W x H) 127.0 x 76.2 x 40.1 mm
- Output voltage (max.)
25.9 V DC
- Connection
Connector
450 W
- No. of outputs
1 x
- Type
open
- Weight
462 g
- Width
76.2 mm
- Height
40.1 mm
- Length
127.0 mm
- Type
TPP 450-124A-M
- Output current (min.)
0 mA
- Output voltage (min.)
22.1 V DC
- Max. temperature
85 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 1972336 TracoPower TPP 450-124A-M SMPSU 25.9 V DC 18750 mA 450 W
Datasheet 1972336 TracoPower TPP 450-124A-M SMPSU 25.9 V DC 18750 mA 450 W
User & Safety Instructions
User & Safety Instructions 1972336 TracoPower TPP 450-124A-M SMPSU 25.9 V DC 18750 mA 450 W
