Buy VOLTCRAFT VC-1310 Clamp meter Digital CAT II 600 V Display (counts): 1999

Digital clamp meter with display for current measurement. Display shows '0000'. Buttons for 'Hold' and range selection are visible.

A grey safety knife with a round handle and protective blade, suitable for safely cutting packaging and materials.

Digital electrical multimeter with clamp, LCD display showing '0888', buttons for settings, housing in grey and black.

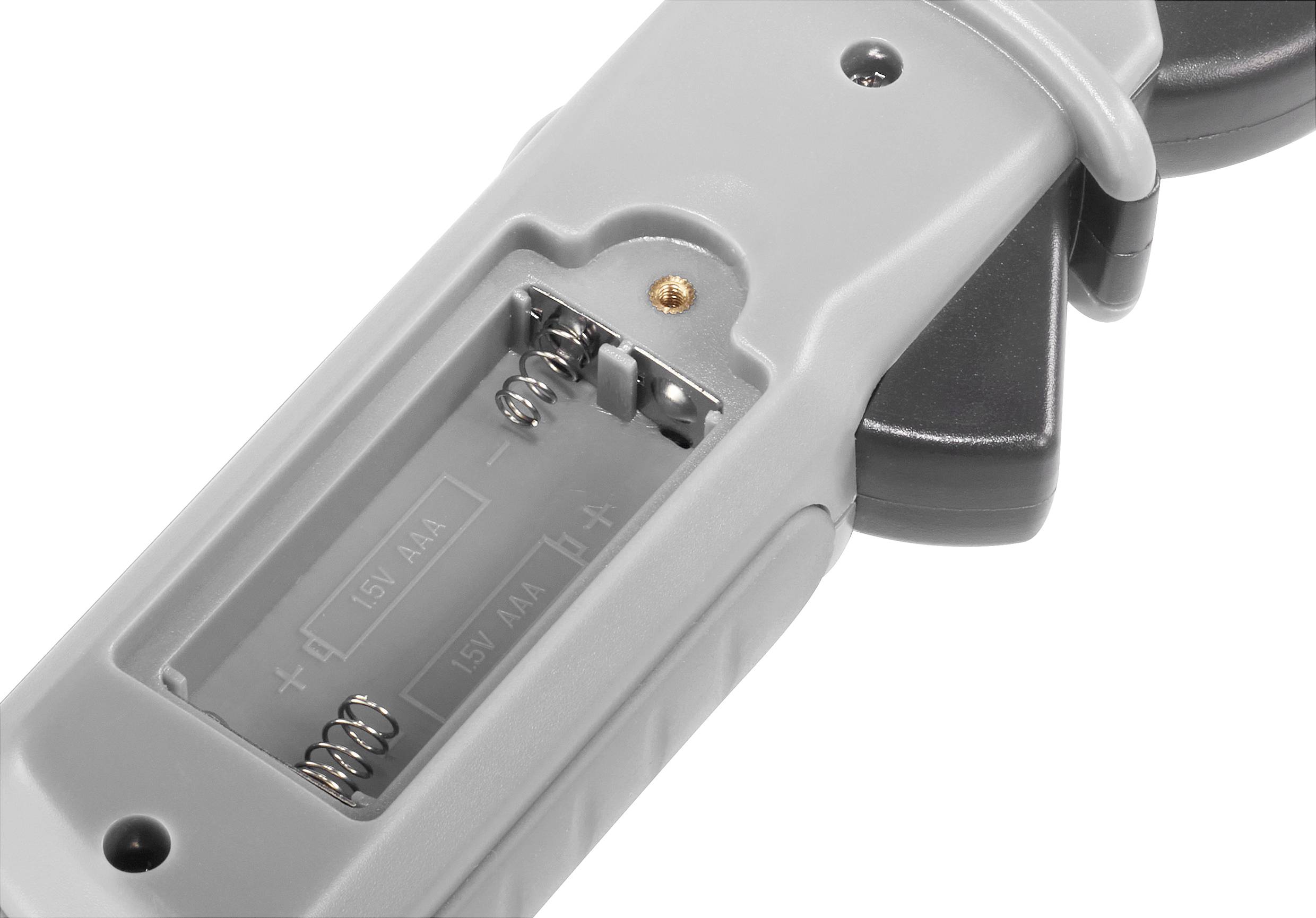

Open battery compartment of a remote control with space for two AA batteries, empty spring contacts visible.

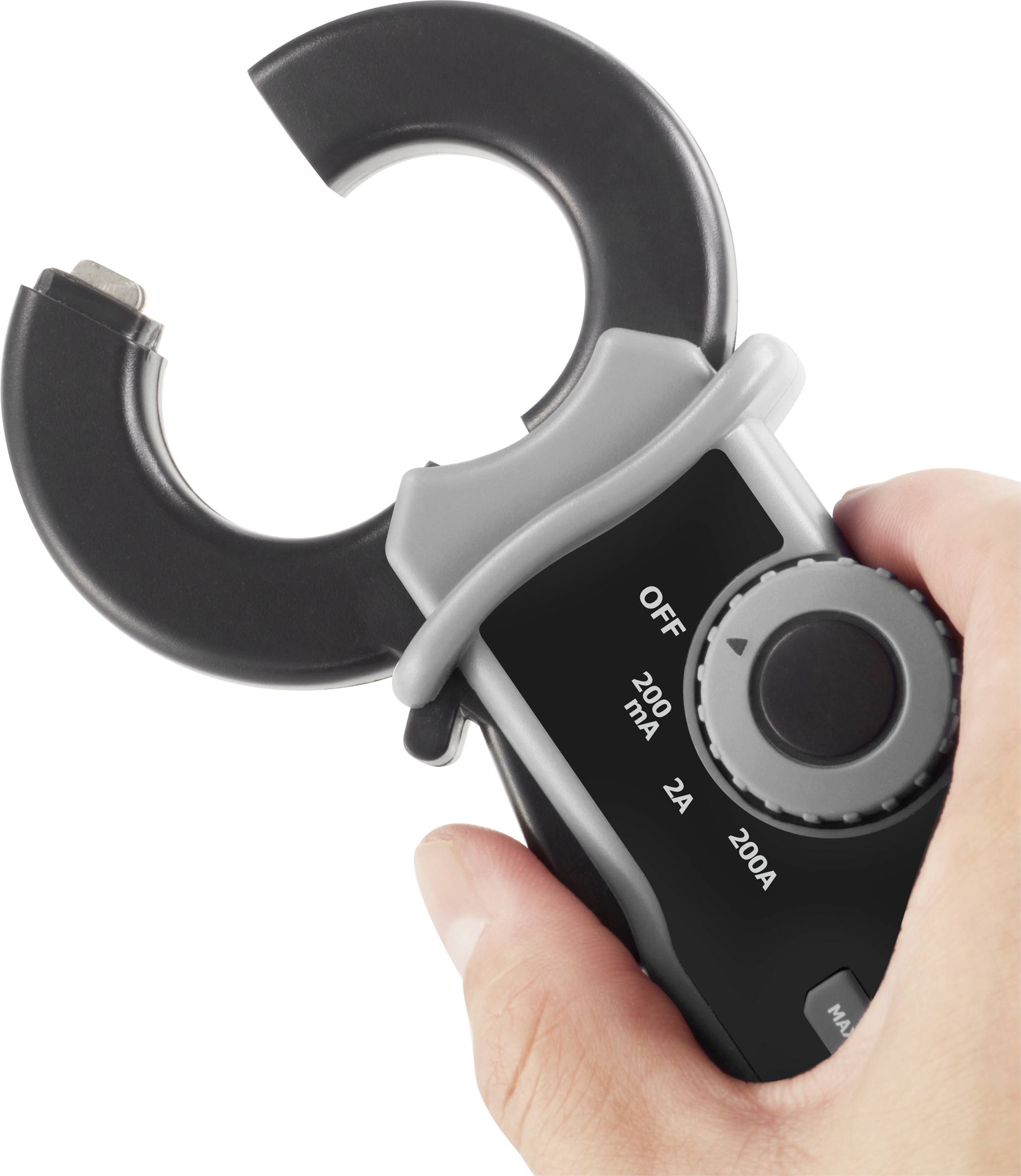

'A hand-held measuring device with a clamp sensor for current measurement. It displays various ampere settings and has a large rotary dial.'

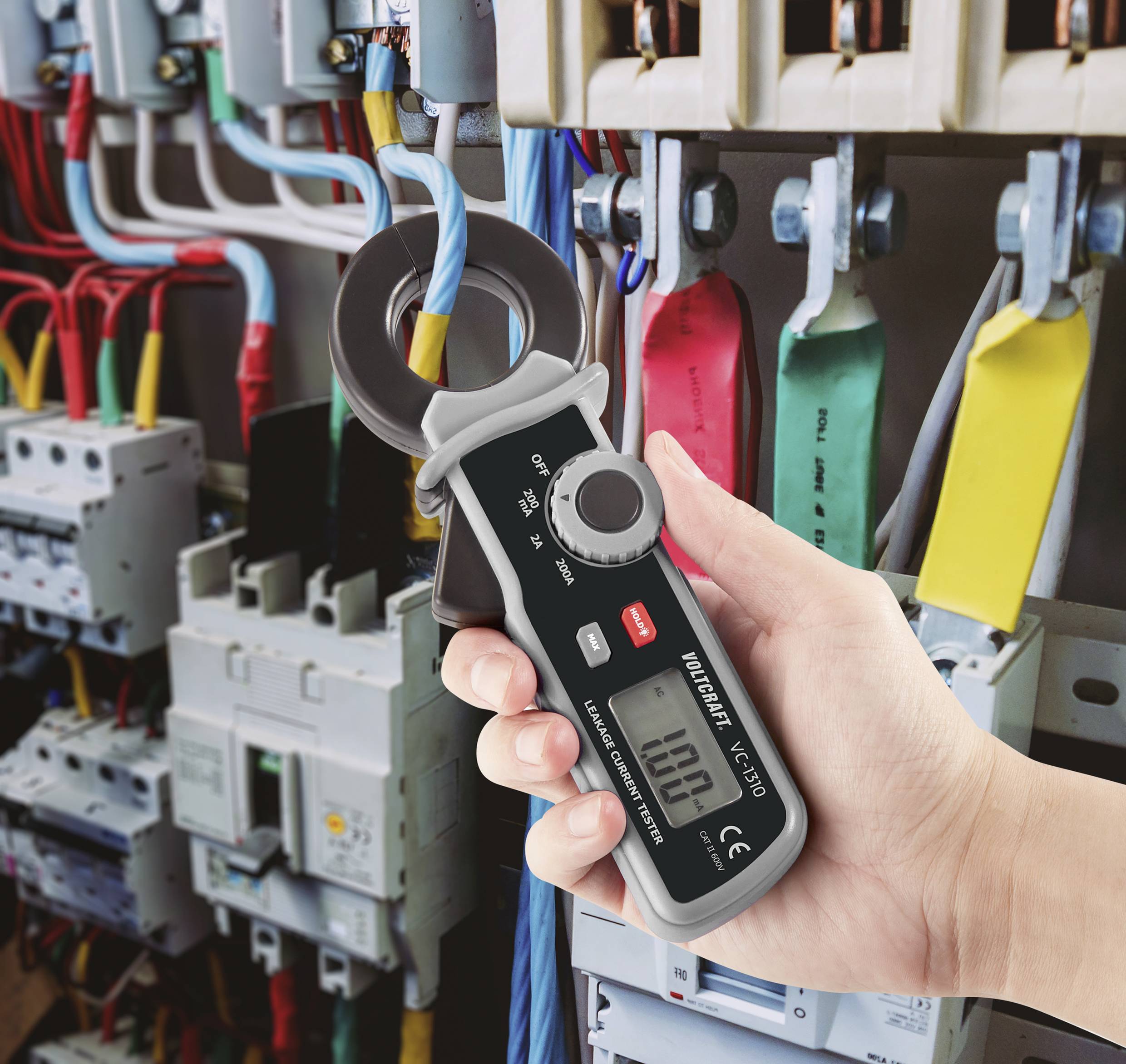

A hand holds a digital multimeter with a current clamp in front of an open electrical cabinet with coloured cables and fuses.

1/6

Our service for you

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

183 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 57.13 / piece)

€ 57.13

plus VAT.

Report legal concerns

Highlights & Details

VC-1310 LEAKAGE CURRENT METER

High resolution leakage current - up to 100 μA AC
3 1/2 digit (1999 count) LCD display
White LED backlight
3.05 cm Jaw opening
CAT II 600 V

Technical specifications

Product type: Clamp meter

A AC reading range (min.): 0.1 mA

Amperage reading range AC (max.): 200 A

Basic accuracy: 5 %

Power supply (details): 2 x AAA, 3 V

Height: 182 mm

Width: 61 mm

Length: 34 mm

Weight: 163 g

: Manufacturer's standards (no certificate)

Reading category: CAT II 600 V

Current reading: AC

Type: VC-1310

Display: Digital

Display (counts): 1999

Dim: (L x W x H) 34 x 61 x 182 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2368174 VOLTCRAFT VC-1310 Clamp meter Digital CAT II 600 V Display (counts): 1999

User & Safety Instructions

User & Safety Instructions 2368174 VOLTCRAFT VC-1310 Clamp meter Digital CAT II 600 V Display (counts): 1999

Warranty Terms

Warranty Terms 2368174 VOLTCRAFT VC-1310 Clamp meter Digital CAT II 600 V Display (counts): 1999

Description

Detect leakage currents without interruption
If electricity flows in places where it does not belong, it can have dangerous consequences. In order to detect and measure these currents, current clamps have proven themselves, which make the separation of the conductor or the interruption of the circuit unnecessary.

Measure leakage current reliably
The handy Voltcraft VC-1310 with 3.05 cm jaw opening fits in any trouser pocket, but is nevertheless approved for cat II 600 V and detects leakage currents starting from 100 μA AC. The 3-1/2 digit LCD display has 1999 counts, white LED backlight and data hold function to freeze measurement results and read them more easily. An overload indicator is also available.

Always ready to use
The VC-1310 leakage current clamp indicates a low battery level and switches off automatically in case of prolonged inactivity to save energy. In addition to the current clamp and user manual, the package also includes two AAA batteries for immediate use.

This text is machine translated.
