Test Equipment & Power SupplyTesters & MetersMultimeters

VOLTCRAFT VC195 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 60000

A digital multimeter displaying 5.099 volts, with various test settings visible. Red and black test probes are placed in front of the device.
Digital multimeter displaying '5.9999' with various settings buttons and dials. Model 'VOLTCRAFT VC 195', AC volts mode active.
Back view of a remote control showing a warning label in multiple languages, battery compartment cover, and regulatory information.
A digital multimeter displaying '07', with buttons labeled for various electrical measurements, used for testing and troubleshooting circuits.

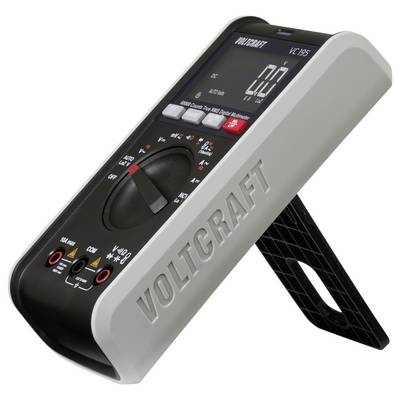

'Voltcraft VC 105' digital multimeter standing on a foldable stand, displaying '0.0' on the screen, with buttons and dial for settings.
A digital multimeter with a display and dial, accompanied by red and black probes used for measuring electrical properties.
A digital multimeter with a black front panel displaying '07' is lying on a surface. An orange cable loop is partially shown in the foreground.
A hand holds a digital multimeter displaying 'L0' near an electrical panel with multiple circuit breakers labeled 'MCB4-125' and 'RCBO40MLH'.

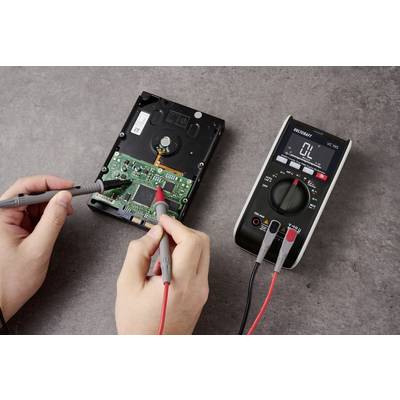

A person uses a multimeter to test an open hard drive, measuring electrical values on the circuit board.
1/9
EAN:
Part number:
Item no:
Currently not available
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 315.00 / piece)
€ 315.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

VC195

  • CAT III 600 V

Technical specifications

Voltage reading range DC (min.)

0.01 mV

Product type

Handheld multimeter

Voltage DC reading range (max.)

600 V

V AC reading range (min.)

0.01 mV

V AC reading range (max.)

600 V

Amperage reading range DC (min.)

0.0001 A

A DC reading range (max.)

10 A

A AC reading range (min.)

0.0001 A

Amperage reading range AC (max.)

10 A

DC resistance

10 MΩ

AC resistance

10 MΩ

Basic accuracy

0.4 %

Measurement type (details)

True RMS

Height

157.5 mm

Width

76.5 mm

Length

40 mm

Weight

289 g

ISO standards

Reading category

CAT III 600 V

Voltage metering

AC/DC

Current reading

AC/DC

Type

VC195

Display

Digital

Display (counts)

60000

Dim

(L x W x H) 40 x 76.5 x 157.5 mm

Features

ISO calibration

Capacitance testing

Screen back-lighting

LoZ

Continuity tester

Plastic free packaging

Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3728807 VOLTCRAFT VC195 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 60000

Warranty Terms

Warranty Terms 3728807 VOLTCRAFT VC195 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 60000
