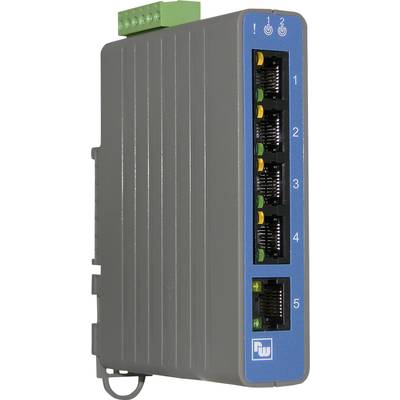

Wachendorff ETHSW50K Ethernet Switch, 5 Ports - ETHSW50K Industrial Ethernet switch 10 / 100 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
Technical specifications
- Product type
Industrial Ethernet switch
- LAN transfer rate
100 MBit/s
- Transfer rate
10 / 100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
5
- 10/100 Mbps ports
5 x
- Width
25 mm
- Height
113 mm
- Depth
97.38 mm
- Type
Ethernet Switch, 5 Ports - ETHSW50K
- Interfaces
RJ45
IP30
- Operating voltage
12 V DC
24 V DC
36 V DC
48 V DC
58 V DC
- Current consumption
30 mA
- Max. operating temperature
60 °C
- Min. operating temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1605370 Wachendorff ETHSW50K Ethernet Switch, 5 Ports - ETHSW50K Industrial Ethernet switch 10 / 100 MBit/s
User & Safety Instructions
User & Safety Instructions 1605370 Wachendorff ETHSW50K Ethernet Switch, 5 Ports - ETHSW50K Industrial Ethernet switch 10 / 100 MBit/s
Description
The ETHSW 50K is a very compact, slim and robust Industrial Ethernet Switch with 5 x 10/100 BaseT(X). Supported 10BaseT, 100BaseTX according to IEEE 802.3u, according to IEEE802.3and Flow Control (Ethernet data flow control) according to IEEE 802.3x. The compact, according to protection class IP30 certified plastic housing, designed for use in harsh and demanding industrial environments, in which large differences in temperature and physical loads must not are unknown.
The ETHSW 50K is a unmanaged and plug-and-play-capable switch with a non-blocking/wire-speed Layer 2 switching engine. Due to the design in the operating mode store and forward is a safe transfer. The switchable function flooding Storm Control protects against unwanted assignment of available transfer rate by through broadcast or multicast data frames.
The switch has a redundant voltage input and a fault relay for the signaling an error. Thus, in the event of the failure of a power supply unit or the power supply of the interference-free operation and a direct error detection ensures
other. By implementing IEEE 802.3az Energy Efficient Ethernet, the power consumption of the ports present inside in idle state be reduced significantly.
This text is machine translated.
The ETHSW 50K is a unmanaged and plug-and-play-capable switch with a non-blocking/wire-speed Layer 2 switching engine. Due to the design in the operating mode store and forward is a safe transfer. The switchable function flooding Storm Control protects against unwanted assignment of available transfer rate by through broadcast or multicast data frames.
The switch has a redundant voltage input and a fault relay for the signaling an error. Thus, in the event of the failure of a power supply unit or the power supply of the interference-free operation and a direct error detection ensures
other. By implementing IEEE 802.3az Energy Efficient Ethernet, the power consumption of the ports present inside in idle state be reduced significantly.
