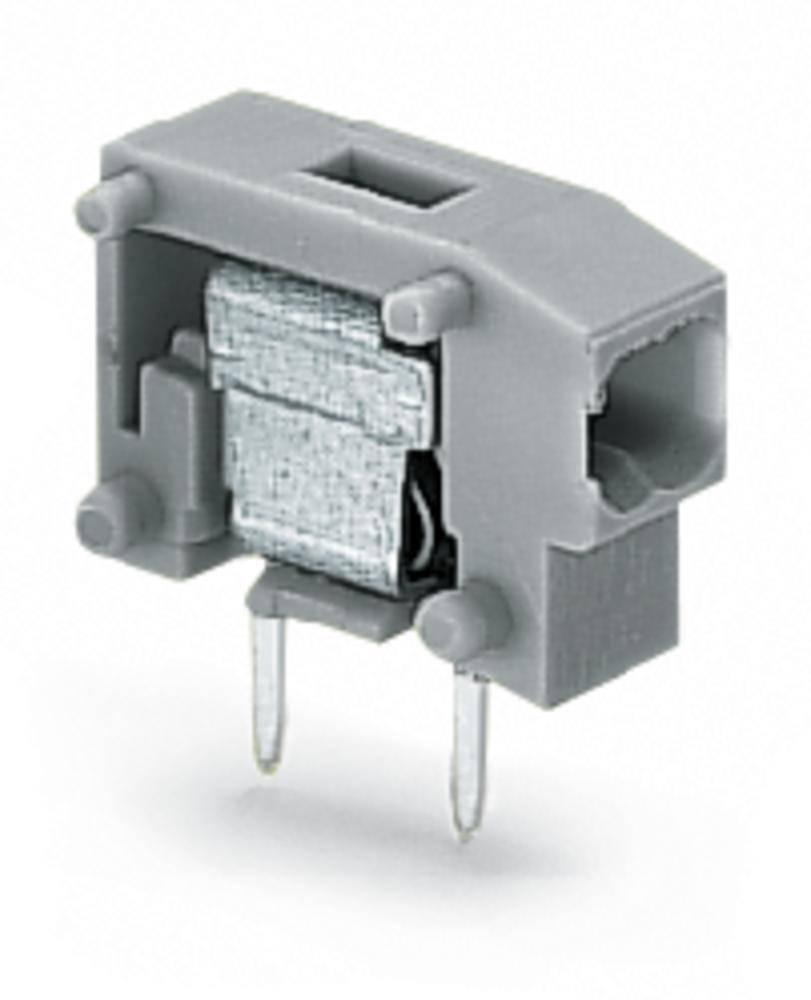

WAGO 235-712 Spring-loaded terminal 0.34 mm² Number of pins 1 Dark grey 800 pc(s)
Product type
Spring-loaded terminal
CS
5 mm
5.08 mm
Pins per row
1
Number of pins
1
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 800 pc(s))
Total (€ 0.32 / piece)
€ 255.00
incl. VAT
14-day return policy included
Technical specifications
- PCB.MOD.T.BLOCK 2X0,75 SQMM D-GREY
- Type
235-712
- Product type
Spring-loaded terminal
- Features
+ PUSH WIRE®
- CS
5 mm
5.08 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Series
235
- Min. stripping length
9 mm
- Stripping length (max.)
6 mm
- Connection
Spring-loaded terminal
Print
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
0.34 mm²
- Cross section (inflexible) (max.)
0.75 mm²
- AWG (min.)
24
- Connector orientation
Parallel (to the PCB)
- AWG max.
18
- Contact material
Cathode copper, tin plated
- Factory colour
Dark grey
- Wire protection
Yes
- Manufacturer part #
235-712
- Industrial packaging
Yes
- Content
800 pc(s)
- Nominal voltage
320 V

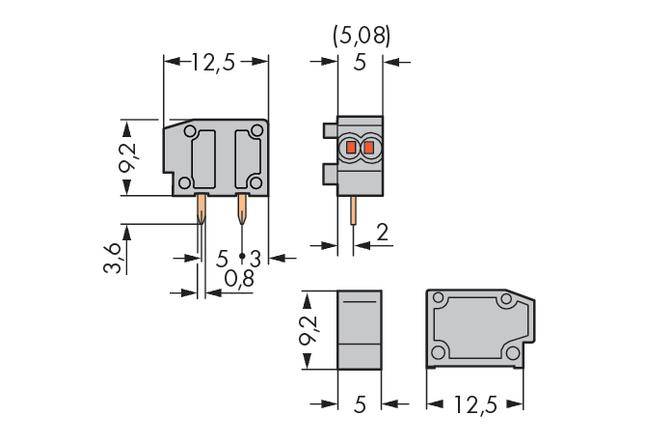

- Width
12.80 mm
- Height
12.50 mm
- Length
6.50 mm
Documents & Downloads
Datasheet
Datasheet 729382 WAGO 235-712 Spring-loaded terminal 0.34 mm² Number of pins 1 Dark grey 800 pc(s)
User & Safety Instructions
User & Safety Instructions 729382 WAGO 235-712 Spring-loaded terminal 0.34 mm² Number of pins 1 Dark grey 800 pc(s)
