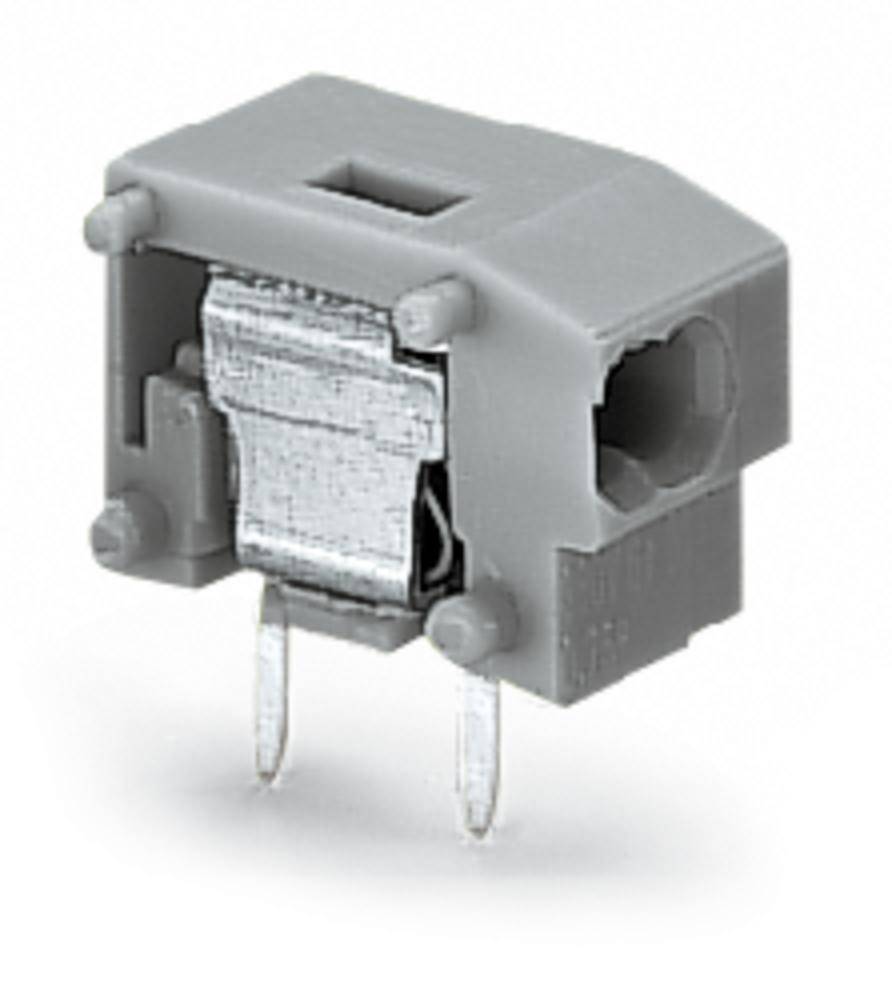

WAGO 235-724 Spring-loaded terminal 0.34 mm² Number of pins 1 Blue 600 pc(s)
Product type
Spring-loaded terminal
CS
7.50 mm
7.62 mm
Pins per row
1
Number of pins
1
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 600 pc(s))
Total (€ 0.39 / piece)
€ 234.99
incl. VAT
14-day return policy included
Highlights & Details
2-conductor PCB terminal block
- Content 600 pc(s)
Technical specifications
- MOD PC SINGLE BLUE
- Type
235-724
- Product type
Spring-loaded terminal
- Features
+ PUSH WIRE®
- CS
7.50 mm
7.62 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Series
235
- Min. stripping length
9 mm
- Stripping length (max.)
10 mm
- Connection
Spring-loaded terminal
Print
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
0.34 mm²
- Cross section (inflexible) (max.)
0.75 mm²
- AWG (min.)
24
- Connector orientation
Parallel (to the PCB)
- AWG max.
18
- Contact material
Cathode copper, tin plated
- Factory colour
Blue
- Wire protection
Yes
- Manufacturer part #
235-724
- Industrial packaging
Yes
- Content
600 pc(s)
- Nominal voltage
630 V
- Width
12.80 mm
- Height
12.50 mm
- Length
9.00 mm
Documents & Downloads
Datasheet
Datasheet 729395 WAGO 235-724 Spring-loaded terminal 0.34 mm² Number of pins 1 Blue 600 pc(s)
User & Safety Instructions
User & Safety Instructions 729395 WAGO 235-724 Spring-loaded terminal 0.34 mm² Number of pins 1 Blue 600 pc(s)
