WAGO 236-305 Spring-loaded terminal 2.50 mm² Number of pins 5 Grey 80 pc(s)

Grey, rectangular electrical terminal block module with multiple connections. Used for secure electrical connections.

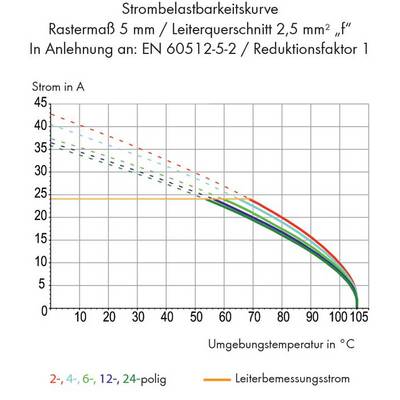

Graph shows current-carrying capacity in amperes at various temperatures (0-105°C) for conductor cross-section 2.5 mm² in accordance with EN 60512-5-2.
Technical drawing of an electrical connector with dimensions: height 13 mm, width 14 mm, pin spacing 10 mm.
1/3
Product type
Spring-loaded terminal
CS
10 mm
10.16 mm
Pins per row
5
Number of pins
5
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 10 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 80 pc(s))
Total (€ 2.00 / piece)
€ 159.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • PCB TERMINAL BLOCK,10MM 5-POLE,GREY
Type

236-305

Product type

Spring-loaded terminal

Features

+ CAGE CLAMP®

CS

10 mm

10.16 mm

No. of rows

1

Pins per row

5

Number of pins

5

Series

236

Min. stripping length

10 mm

Stripping length (max.)

6 mm

Connection

Spring-loaded terminal

Print

Cross section (flexible) (min.)

0.08 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (max.)

2.50 mm²

AWG (min.)

28

Connector orientation

At an angle (to the PCB)

AWG max.

12

Contact material

Cathode copper, tin plated

Factory colour

Grey

Wire protection

Yes

Manufacturer part #

236-305

Industrial packaging

Yes

Content

80 pc(s)

Nominal voltage

1000 V

Width

52.30 mm

Height

17.00 mm

Length

14.00 mm
