WAGO 250-204/000-012 Spring-loaded terminal 1.50 mm² Number of pins 4 Orange 300 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 300 pc(s))
Total (€ 264.71 / piece)
€
Technical specifications
- GDS-KLEMME 4-P. 3,5MM ORANG.ALTERN.
- Features
+ CAGE CLAMP®
- CS
3.50 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Series
250
- Min. stripping length
6 mm
- Stripping length (max.)
9 mm
- Connection
Spring-loaded terminal
Print
- Cross section (flexible) (min.)
0.20 mm²

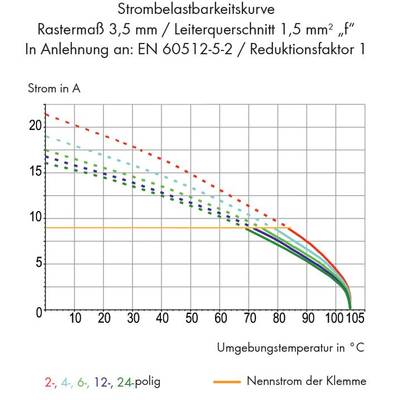

- Nominal current - rounded value
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
24
- Connector orientation
At an angle (to the PCB)
- AWG max.
16
- Factory colour
Orange
- Wire protection
Yes
- Content
300 pc(s)

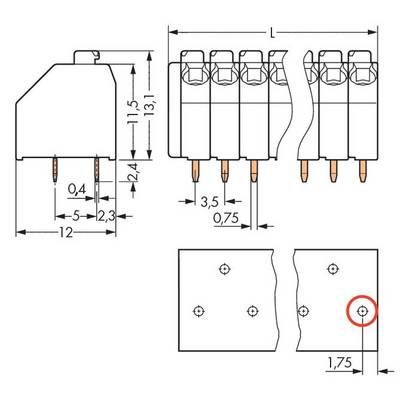

- Height
15.50 mm
- Length
12.00 mm
- Width
16.70 mm
- Industrial packaging
Yes
- Manufacturer part #
250-204/000-012
- Type
250-204/000-012
- Nominal voltage
320 V
- Product type
Spring-loaded terminal
