WAGO 280-875 N terminal 5 mm Pull spring Configuration: L Grey 50 pc(s)

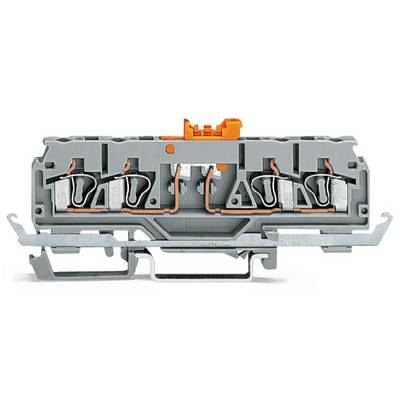

Grey electrical connector component with copper wires and orange components, designed for secure cable connection.
Grey distribution block with five connections; Dimensions: 89 mm (height), 101 mm (width). Provides cable connections.
1/2
Product type
N terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri, 22 Jan 2027
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 5.38 / piece)
€ 269.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

4-conductor disconnect/test terminal block

  • 280-875

Technical specifications

  • 4-L-TRENN-U.MESSKL.GRAU SCHIRMLEITER
Product type

N terminal

Features

+ swivelling cutter

+ test option

Connection

Pull spring

Configuration

L

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

2.50 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5 mm

No. of rows

1

Pins per row

4

Number of pins

4

Factory colour

Grey

Nominal current

16 A

Nominal current - rounded value

16 A

Nominal voltage

250 V

Min. stripping length

8 mm

Stripping length (max.)

9 mm

Manufacturer part #

280-875

Content

50 pc(s)

Industrial packaging

Yes

Type

280-875

Dim

(W x H) 5 mm x 28.50 mm

Width

5 mm

Height

28.50 mm

Contamination level

3

Connector colour

Grey

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 536239 WAGO 280-875 N terminal 5 mm Pull spring Configuration: L Grey 50 pc(s)

User & Safety Instructions

User & Safety Instructions 536239 WAGO 280-875 N terminal 5 mm Pull spring Configuration: L Grey 50 pc(s)

Description

With moving cutting knife, cutting knife holder orange with test hole for test plug Ø 2 mm and Ø 2.3 mm, with shielding conductor, gray.
