WAGO 281-530 Quadport continuity 6 mm Pull spring Configuration: L Grey 50 pc(s) Package

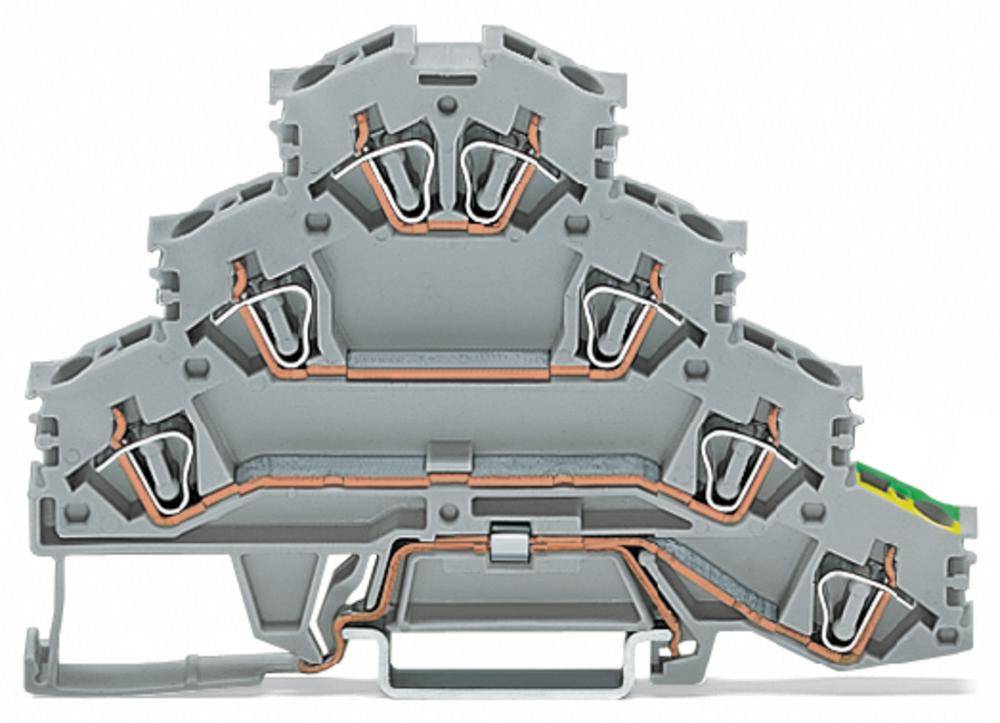

A grey, three-tier terminal block with copper connections visible on the front.

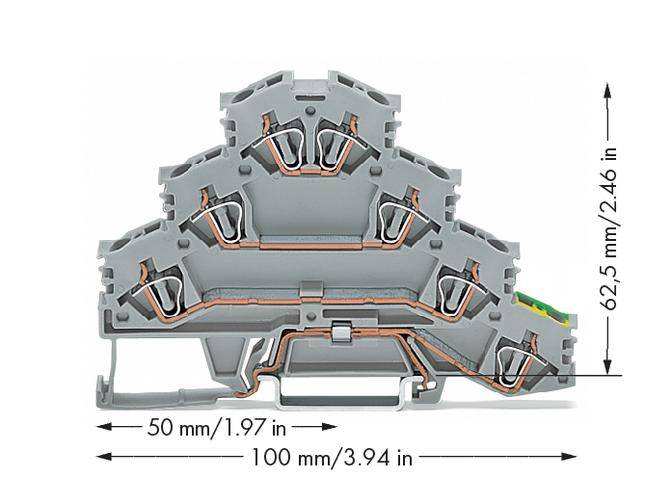

Grey three-tier electrical connector with copper conductors, ideal for space-saving wiring. Dimensions: 50 x 100 x 62.5 mm.
1/2
Packaging type
Package
Product type
Quadport continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 25 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 9.10 / piece)
€ 455.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Quadruple-deck rail-mounted terminal block

  • 281-530
  • Industrial packaging, pack of 50

Technical specifications

  • RAIL MOUNT.QUAD/DECK PE,L,L,L
Packaging type

Package

Product type

Quadport continuity

Connection

Pull spring

Configuration

L

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

4 mm²

AWG (min.)

28

AWG max.

12

Clamp width

6 mm

No. of rows

4

Number of pins

7

Factory colour

Grey

Nominal current

20 A

Nominal current - rounded value

20 A

Nominal voltage

400 V

Min. stripping length

8 mm

Stripping length (max.)

9 mm

Manufacturer part #

281-530

Content

50 pc(s)

Industrial packaging

Yes

Type

281-530

Dim

(W x H) 6 mm x 62.50 mm

Width

6 mm

Height

62.50 mm

Connector colour

Grey

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 536459 WAGO 281-530 Quadport continuity 6 mm Pull spring Configuration: L Grey 50 pc(s) Package

User & Safety Instructions

User & Safety Instructions 536459 WAGO 281-530 Quadport continuity 6 mm Pull spring Configuration: L Grey 50 pc(s) Package

Description

Motor connection terminal block, L1-L2-L3-PE gray.
