WAGO 285-635 Continuity 16 mm Pull spring Configuration: L Grey 15 pc(s)

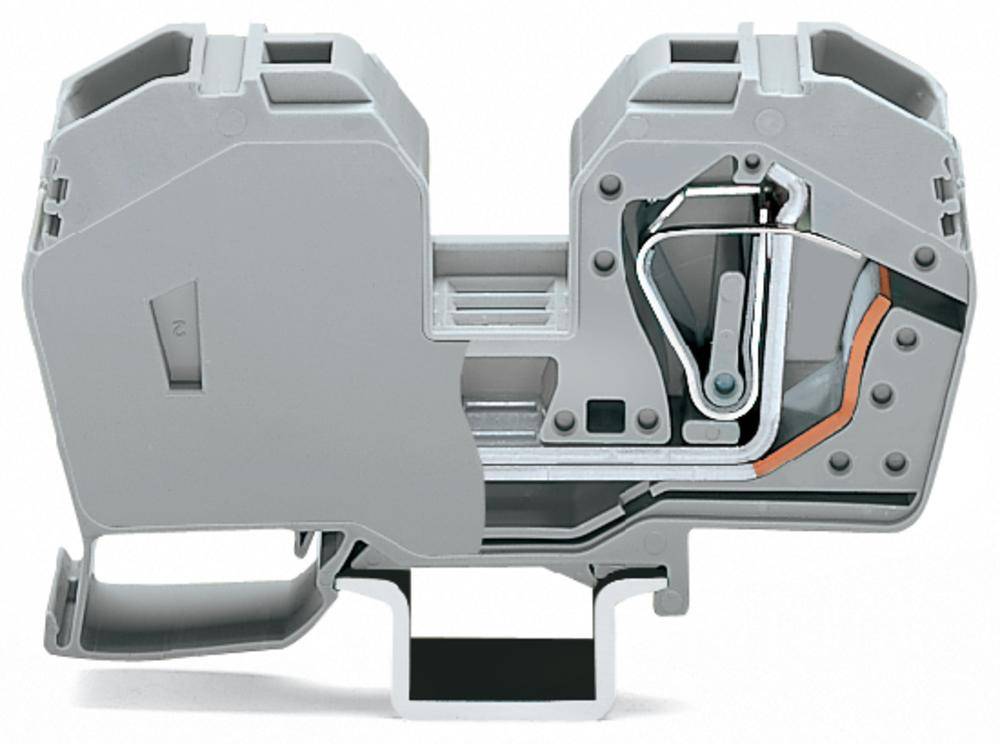

A cross-section of an electrical terminal block with visible internal mechanisms and connections. Suitable for industrial applications.
A grey terminal block with dimensions of 100 mm x 53 mm is shown, highlighting the internal wiring and mechanism.
1/2
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
125 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 10 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 15 pc(s))
Total (€ 13.00 / piece)
€ 194.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

2-conductor through terminal block

  • 285-635
  • Industrial packaging with 15 pieces

Technical specifications

  • THROUGH TERMINAL BLOCK 35MM GREY
Product type

Continuity

Connection

Pull spring

Configuration

L

Cross section (flexible) (min.)

6 mm²

Cross section (flexible) (max.)

35 mm²

Cross section (inflexible) (min.)

6 mm²

Cross section (inflexible) (max.)

35 mm²

AWG (min.)

10

AWG max.

2

Clamp width

16 mm

No. of rows

1

Pins per row

2

Number of pins

2

Factory colour

Grey

Nominal current

125 A

Nominal current - rounded value

125 A

Nominal voltage

1000 V

Stripping length (max.)

23 mm

Manufacturer part #

285-635

Content

15 pc(s)

Industrial packaging

Yes

Type

285-635

Dim

(W x H) 16 mm x 53 mm

Width

16 mm

Height

53 mm

Contamination level

3

Flammability rating

V0

Connector colour

Grey

Insulation material

Thermoplastic material

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 537212 WAGO 285-635 Continuity 16 mm Pull spring Configuration: L Grey 15 pc(s)

User & Safety Instructions

User & Safety Instructions 537212 WAGO 285-635 Continuity 16 mm Pull spring Configuration: L Grey 15 pc(s)

Description

With built in closing plate, gray.

This text is machine translated.
