WAGO 286-344 Plug-in relay 24 V DC 20 A 1 breaker, 3 makers 1 pc(s)
Product type
Plug-in relay
Coil nominal voltage
24 V DC
Contact type
1 breaker
3 makers
Switching voltage (max.)
200 V DC
250 V AC
Switching current (max.)
20 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 124.99 / piece)
€ 155.00
-19 %
€ 124.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Plug-in relay
- Type
286-344
- Coil nominal voltage
24 V DC
- Contact type
1 breaker
3 makers
- Contact material
AuAg 10 coated AgNi 15
- Switching voltage (max.)
200 V DC
250 V AC
- Switching current (max.)
20 A
- Connection
Jack connector
- Response time
9 ms
- Fall time
5 ms
- Durability
1 x 10 5 cycles
- Weight
36.66 g
- Factory colour
Grey
- Width
25 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 503387 WAGO 286-344 Plug-in relay 24 V DC 20 A 1 breaker, 3 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 503387 WAGO 286-344 Plug-in relay 24 V DC 20 A 1 breaker, 3 makers 1 pc(s)
Description

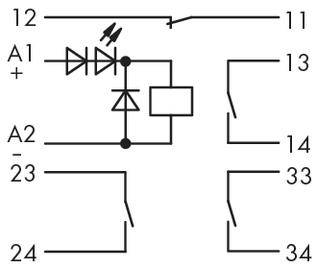

Relay with 1 NC and 3 NO contacts (3a1r), gray.
This text is machine translated.
This text is machine translated.
