Weidmüller 1991810000 PG terminal 8.1 mm Pull spring Green, Yellow 50 pc(s)

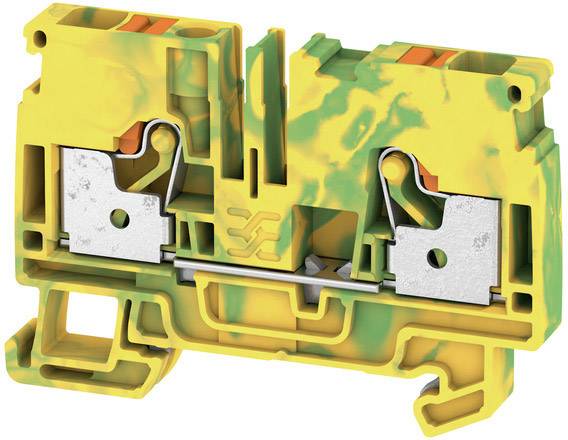

Yellow-green terminal block with two metal contacts, suitable for electrical wiring. Specialised design for secure cable connection.
Image similar
Product type
PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 13 Nov
5 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 4.10 / piece)
€ 204.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Set(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Earth conductor terminal

Our service for you

Technical specifications

Product type

PG terminal

Connection

Pull spring

Cross section (flexible) (min.)

0.5 mm²

Cross section (flexible) (max.)

6 mm²

Cross section (inflexible) (min.)

0.5 mm²

Cross section (inflexible) (max.)

6 mm²

AWG (min.)

22

AWG max.

8

Clamp width

8.1 mm

Number of pins

2

Factory colour

Green

Yellow

Nominal current

41 A

Nominal current - rounded value

41 A

Nominal voltage

800 V

Stripping length (max.)

12 mm

Manufacturer part #

1991810000

Content

50 pc(s)

Industrial packaging

Yes

Type

A2C 6 PE

Dim

(L x W x H) 45.5 x 8.1 x 66.5 mm

Width

8.1 mm

Height

66.5 mm

Length

45.5 mm

RoHS-compliant

Yes

Connector colour

Green

Connections

2

Nominal voltage (details)

800 V

Nominal current (details)

41 A

Documents & Downloads

Datasheet

Datasheet 1514130 Weidmüller 1991810000 PG terminal 8.1 mm Pull spring Green, Yellow 50 pc(s)

User & Safety Instructions

User & Safety Instructions 1514130 Weidmüller 1991810000 PG terminal 8.1 mm Pull spring Green, Yellow 50 pc(s)
