Wiska 10102628 Junction box (L x W x H) 110 x 110 x 66 mm Red IP66/IP67 3 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 3 pc(s))
Total (€ 10.33 / piece)
€ 37.71
-18 %
€ 30.99
incl. VAT
14-day return policy included
Technical specifications
- Max. Conductor cross-section: 6 mm²
- Mounting type: Wall/ceiling mounting
- Introduction from behind: Yes
- Number of introductions: 10
- Type of housing bushing: Thread and sealing membrane
- Cover type: Blind cover, screwed
- Pouring: Yes
- Rated insulation voltage UI: 690 V.
- Weather-resistant: Yes
- Product type
Junction box
- Factory colour
Red
IP66/IP67
- Permanent temperature resistance
-30 °C - +100 °C. °C
- Dim
(L x W x H) 110 x 110 x 66 mm
- Type
square, stackable
- Features
Halogen-free
Sealable
- Content
3 pc(s)
- Material
Plastic
- Width
110 mm
- Height
66 mm
- Length
110 mm
Documents & Downloads
Datasheet
Datasheet 2480063 Wiska 10102628 Junction box (L x W x H) 110 x 110 x 66 mm Red IP66/IP67 3 pc(s)
User & Safety Instructions
User & Safety Instructions 2480063 Wiska 10102628 Junction box (L x W x H) 110 x 110 x 66 mm Red IP66/IP67 3 pc(s)
Description

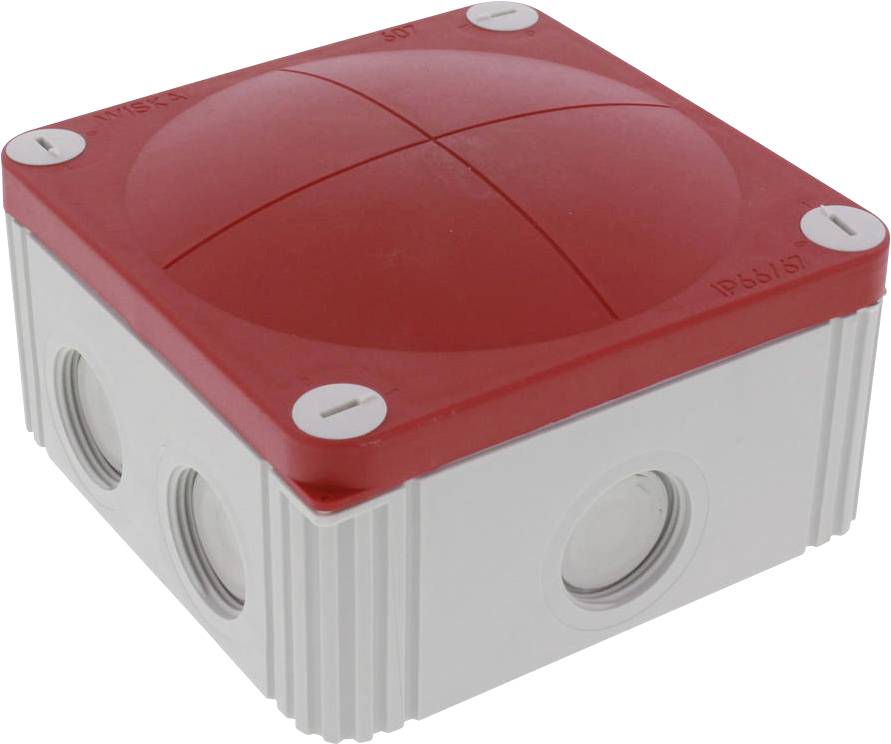

KOMBI Damp room cable junction box made of flame retardant, halogen-free, reinforced thermoplastic, in the 2 component plastic technology combined with puncture membranes made of thermoplastic elastomer.
The box with a high degree of protection is weather and UV-resistant, also shock-proof and break-proof. Ideally suited for extreme stress or installation in indoor and outdoor areas.
High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis as well as alcohol.
Permanently elastic, self-sealing, lateral puncture membranes in combination with integrated thread make direct cable mounting through the membrane as well as the use of cable glands without counter nut possible.
Captive quick-release cap screws, close the box with only a quarter turn.
The box is attached by internal openings outside the sealing area.
This text is machine translated.
The box with a high degree of protection is weather and UV-resistant, also shock-proof and break-proof. Ideally suited for extreme stress or installation in indoor and outdoor areas.
High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis as well as alcohol.
Permanently elastic, self-sealing, lateral puncture membranes in combination with integrated thread make direct cable mounting through the membrane as well as the use of cable glands without counter nut possible.
Captive quick-release cap screws, close the box with only a quarter turn.
The box is attached by internal openings outside the sealing area.
This text is machine translated.
