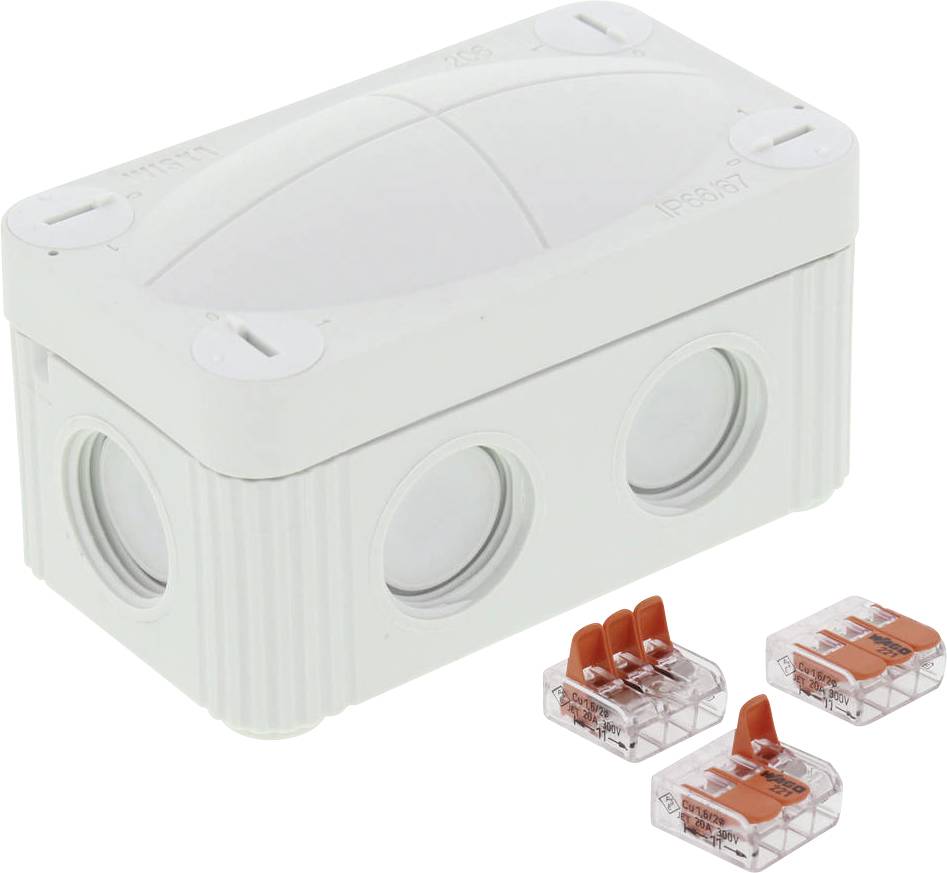

Wiska 10109901 Junction box (L x W x H) 85 x 49 x 51 mm Grey IP66/IP67 10 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 10 pc(s))
Total (€ 7.20 / piece)
€ 91.29
-21 %
€ 71.99
incl. VAT
14-day return policy included
Technical specifications
- Max. Conductor cross-section 1.5 mm²
- Mounting type: universal
- Introduction from behind: Yes
- Number of introductions: 8
- Type of housing bushing: Thread and sealing membrane
- Cover type: Blind cover, screwed
- Pouring: Yes
- Rated insulation voltage UI: 400 V.
- Weather-resistant: Yes
- Product type
Junction box
- Factory colour
Grey
IP66/IP67
- Permanent temperature resistance
-30 °C - +100 °C. °C
- Dim
(L x W x H) 85 x 49 x 51 mm
- Type
rectangular, stackable
- Features
Halogen-free
Sealable
- Content
10 pc(s)
- Material
Plastic
- Width
49 mm
- Height
51 mm
- Length
85 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2480118 Wiska 10109901 Junction box (L x W x H) 85 x 49 x 51 mm Grey IP66/IP67 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2480118 Wiska 10109901 Junction box (L x W x H) 85 x 49 x 51 mm Grey IP66/IP67 10 pc(s)
Description
KOMBI wet room cable junction box made of flame-retardant, halogen-free, glass-fiber reinforced polypropylene, combined in 2 component plastic technology
With puncture membranes made of thermoplastic elastomer. The box with a high degree of protection is weather and UV-resistant, also shock-proof and break-proof.
Ideally suited for installation in indoor and outdoor areas and under extreme stress.
High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis as well as alcohol.
Permanently elastic, self-sealing, lateral puncture membranes
In combination with integrated thread make both direct cable mounting
Through the membrane as well as the use of cable glands without counter nut is possible.
Captive quick-release cap screws, close the box with only a quarter turn.
On the side and in the floor there are permanently elastic, self-sealing punched membranes for tool-free cable entry.
This text is machine translated.
With puncture membranes made of thermoplastic elastomer. The box with a high degree of protection is weather and UV-resistant, also shock-proof and break-proof.
Ideally suited for installation in indoor and outdoor areas and under extreme stress.
High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis as well as alcohol.
Permanently elastic, self-sealing, lateral puncture membranes
In combination with integrated thread make both direct cable mounting
Through the membrane as well as the use of cable glands without counter nut is possible.
Captive quick-release cap screws, close the box with only a quarter turn.
On the side and in the floor there are permanently elastic, self-sealing punched membranes for tool-free cable entry.
This text is machine translated.
