Zamel ASM-02/24V TDR DIN rail 24 V

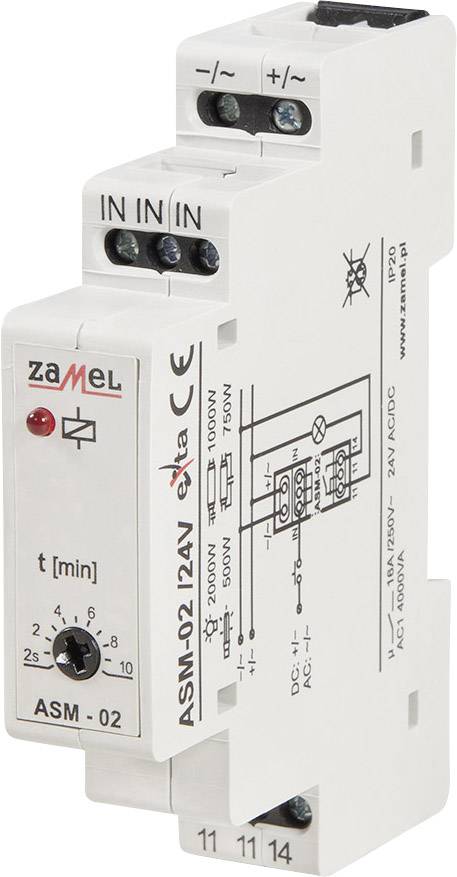

'Zamel ASM-02', a time relay for installation in electrical systems. The input and output are marked at the top and bottom of the module.

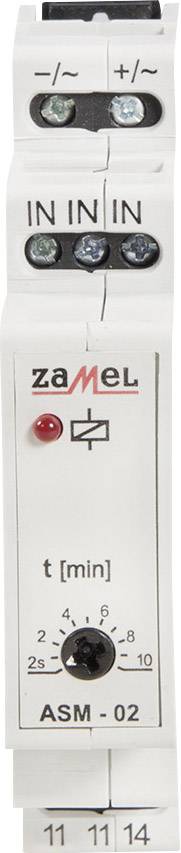

A time relay module from Zamel with a rotary dial for time setting (0.1-10 minutes) and a red LED indicator for operational status.

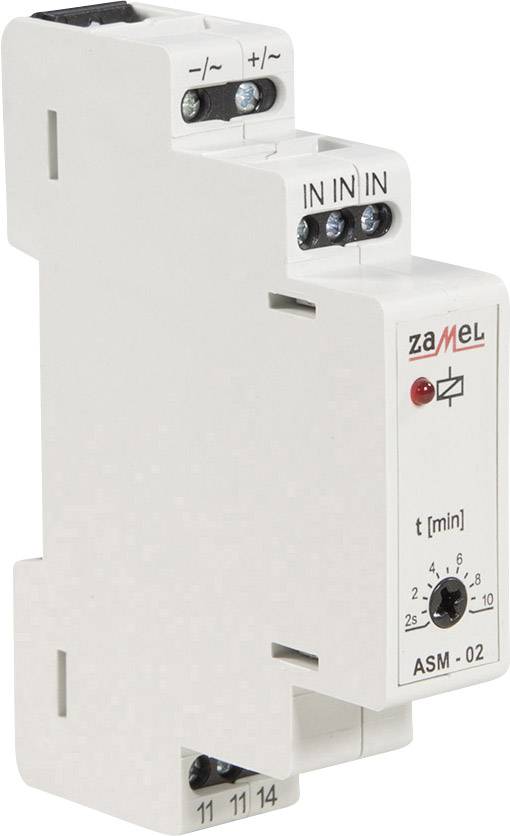

A white ASM-02 stair light switch by Zamel with side and top electrical connections, and a rotary dial for time setting (from 0.5 to 10 minutes).

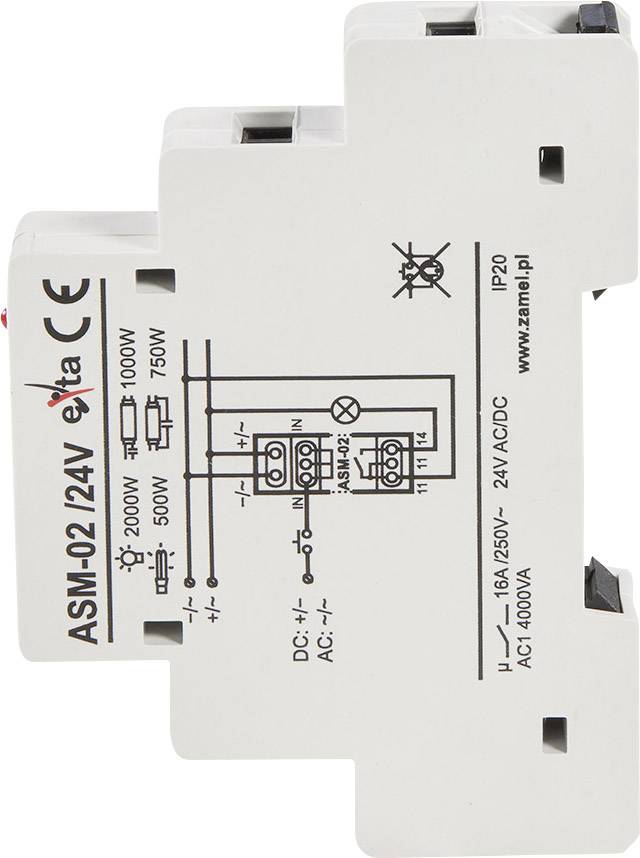

A white electrical relay with technical specifications and circuit diagram printing for connections, voltage, and power rating.
1/4
Product type
TDR
Nominal voltage
24 V
Mounting type
DIN rail
Nominal current
16 A
IP rating
IP20
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 15.99 / piece)
€ 39.99
-60 %
€ 15.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Staircase lighting switch ASM -02/24 V

  • IP20
  • 24 V AC/DC

Technical specifications

  • Time setting range: 2 s - 10 Min.
  • Contact type: 1 closer.
Product type

TDR

Nominal voltage

24 V

Nominal current

16 A

Mounting type

DIN rail

IP20

Dim

(W x H x D) 17.5 x 66 x 90 mm

Width

17.5 mm

Height

66 mm

Depth

90 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1462943 Zamel ASM-02/24V TDR DIN rail 24 V

Description

Switches when pressing the button (illuminated) for the set time the light on. Ideal for e.g. corridor or staircase.
