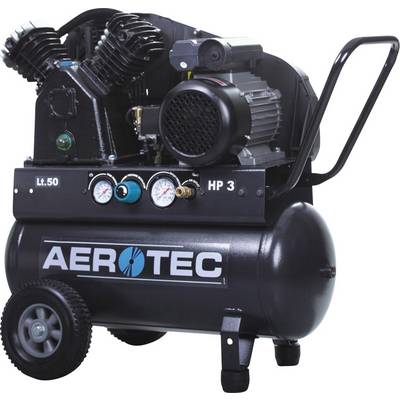

Name: Aerotec Air compressor 450-50 CT 4 50 l 10 bar
Brand: Aerotec
SKU: 431383
Availability: BackOrder

Highlights & Details

Compressor 450-50 CT4

Max. delivery: 290 l/min

Technical specifications

Product type: Air compressor

No. of cylinders: 2

: 2200 W

Vaccum power: 450 l/min

Flow rate: 290 l/min

Operation pressure: 10 bar

Rotational speed (max.): 1200 U/min

Boiler volume: 50 l

Operating voltage: 400 V

Length: 860 mm

Width: 380 mm

Height: 710 mm

Weight: 56 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 431383 Aerotec Air compressor 450-50 CT 4 50 l 10 bar

Information

Information 431383 Aerotec Air compressor 450-50 CT 4 50 l 10 bar

Description

The TECHLINE models have a protected pressure display and control unit. The 63 mm large tank pressure and output pressure gauge are including large handy pressure regulator in the console to store. Thus, the user has all the necessary pressure compact information at a glance, also protects the steel console active against damage.

Features

Wheeled piston compressor in oil-lubricated design
V-belt-operated 2 Cylinder Longlife unit
Including Pressure reducer for exact output pressure setting
load at start-up via Condor Pressure Switch
With large profiled, ball-bearing rubber wheels
the condensate drain takes place by means of ball valve
Delivery including phase inverter plug.

Hints

This text is machine translated.
