ATEN VE802-AT-G HDMI™ Extension via RJ45 network cable 70 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
ATEN VE802-AT-G HDMI™ Extension via RJ45 network cable 70 m

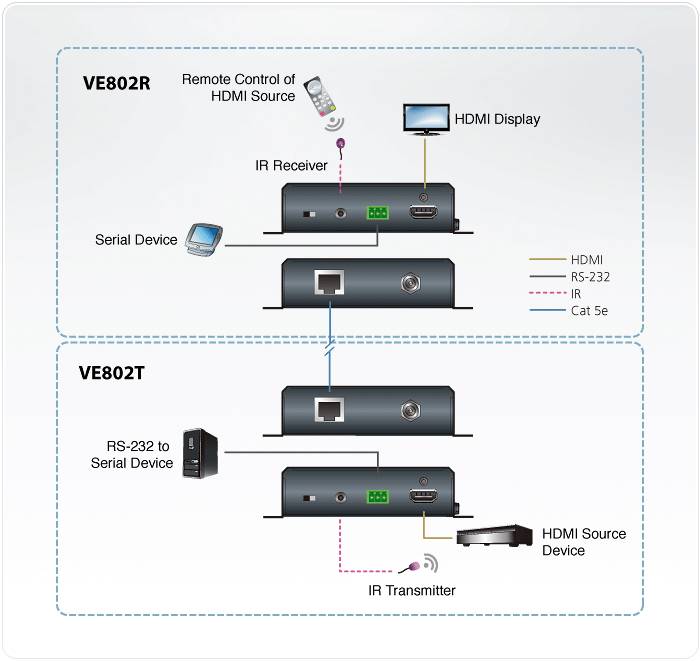

- HDBaseT connectivity – amplifies an HDMI connection via Cat 5e/6/6a cable over a long period of time Distance

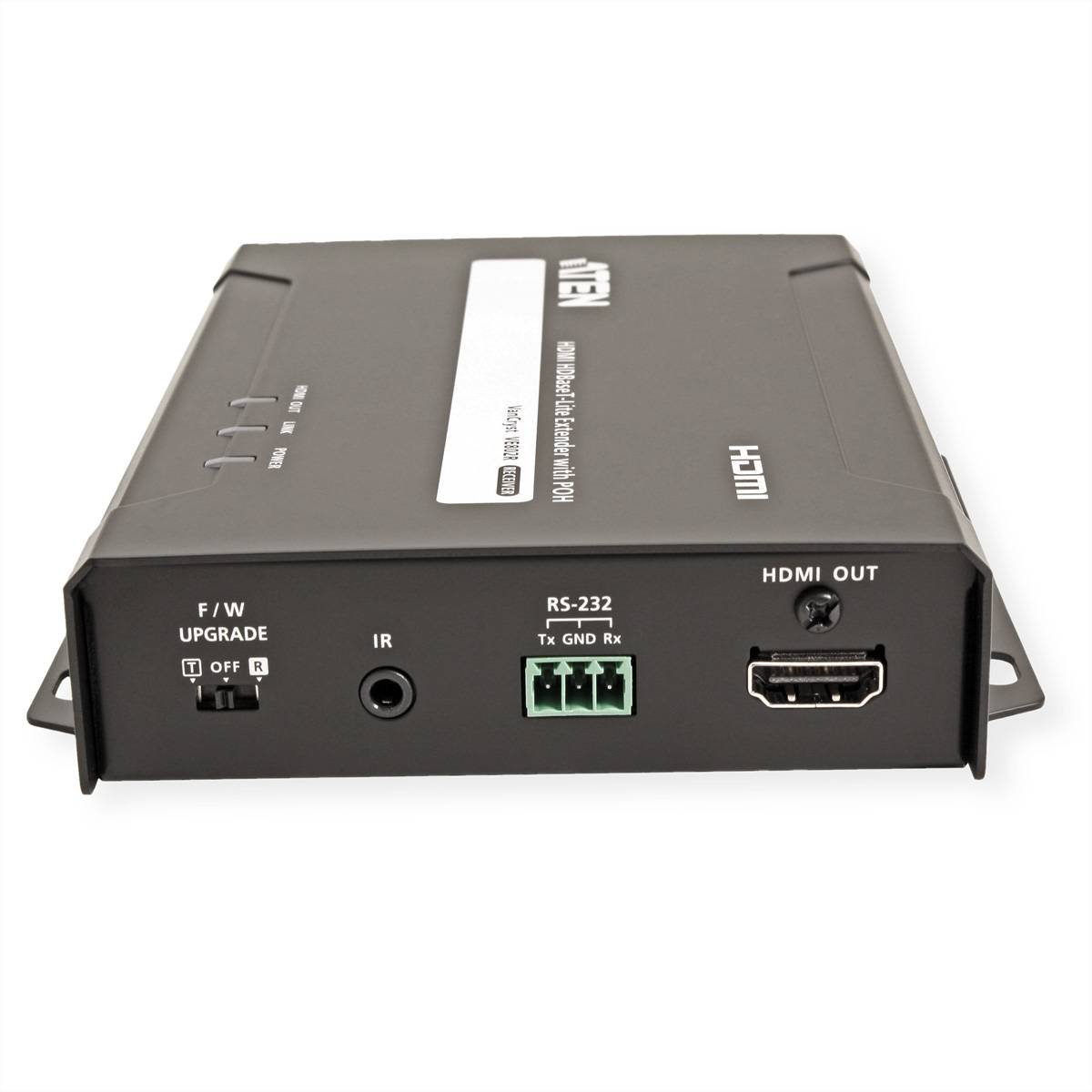

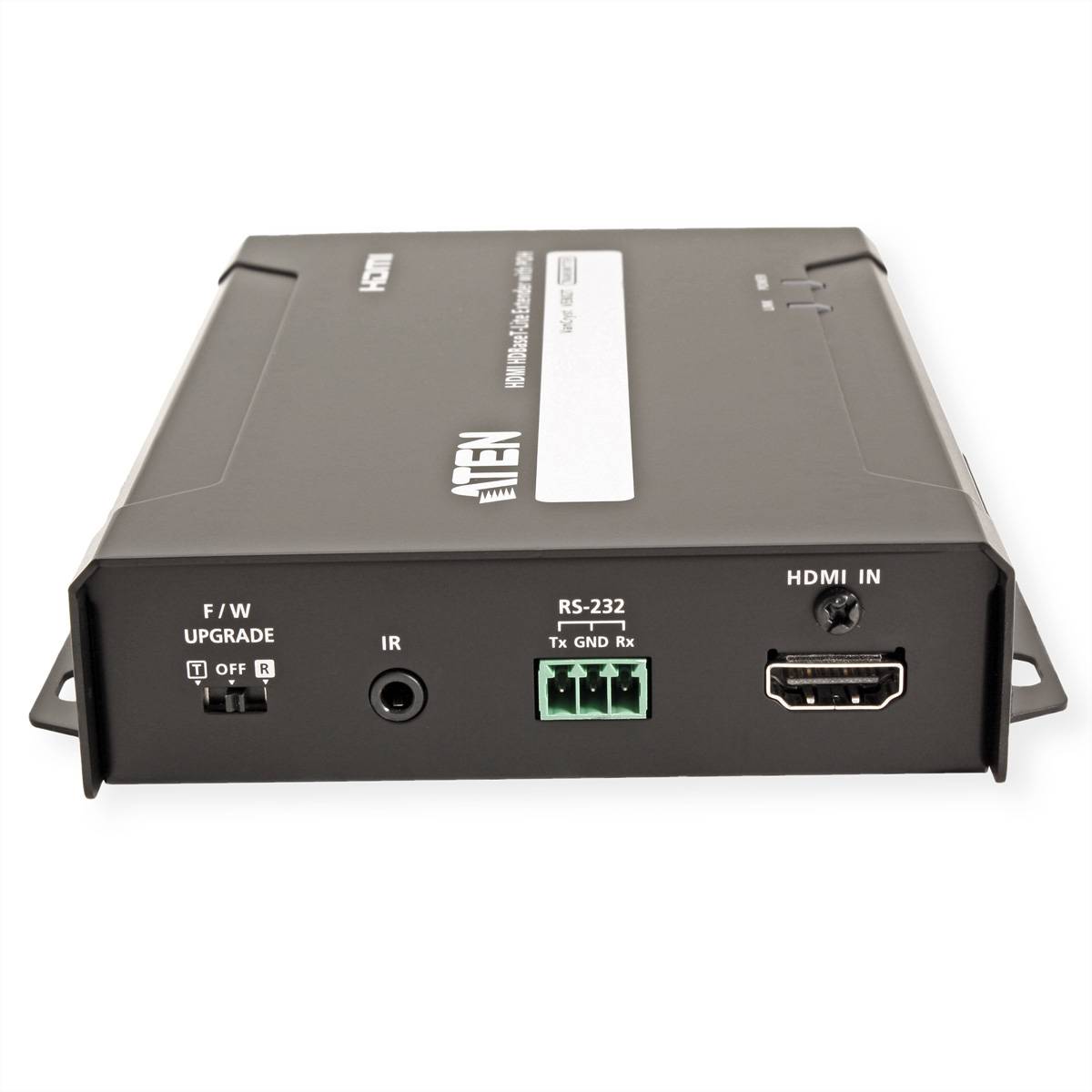

- Bidirectional RS-232 channel – allows you to connect to serial ports or serial devices such as touch screens and bar code scanners
- BI-directional IR channel – IR transmission is always in one direction processed once
- Rack mountable
- This text is machine translated.
Technical specifications
- Maximum resolution 4096 x 2160 pixels
- Supported cable types: CAT5e,Cat6,Cat6a
- Working voltage 5 V
- Power consumption (typical): 7.6 W
- Receiver dimensions (W x D x H): 144.9 x 123 x 30 mm
- Receiver weight 460 g
- Transmitter dimensions (WxDxH) 144.9 x 123 x 30 mm
- Product type
Extension
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Resolution (max.)
4096 x 2160 p
- Range (max.)
70 m
- Factory colour
Black
- Weight
0.92 kg
- Length
14.49 cm
- Width
12.3 cm
- Height
3 cm
- Dim
(L x W x H) 14.49 x 12.3 x 3 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1879733 ATEN VE802-AT-G HDMI™ Extension via RJ45 network cable 70 m
User & Safety Instructions
User & Safety Instructions 1879733 ATEN VE802-AT-G HDMI™ Extension via RJ45 network cable 70 m
Description
Scope of delivery

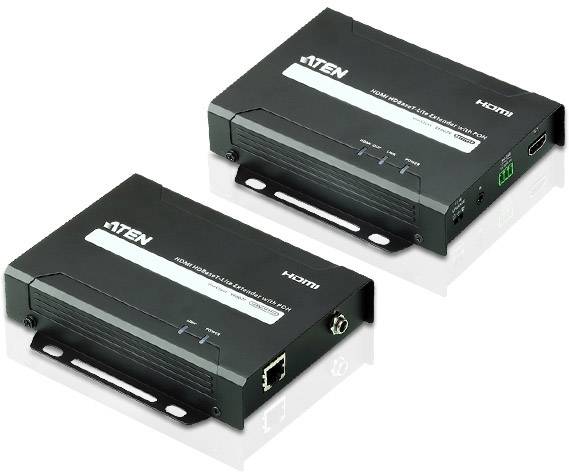

- 1x HDMI-HDBaseT-Lite-Extender VE802T/R with PoH
- 1x 0AD9-1F05-30EG power supply (VE802T)

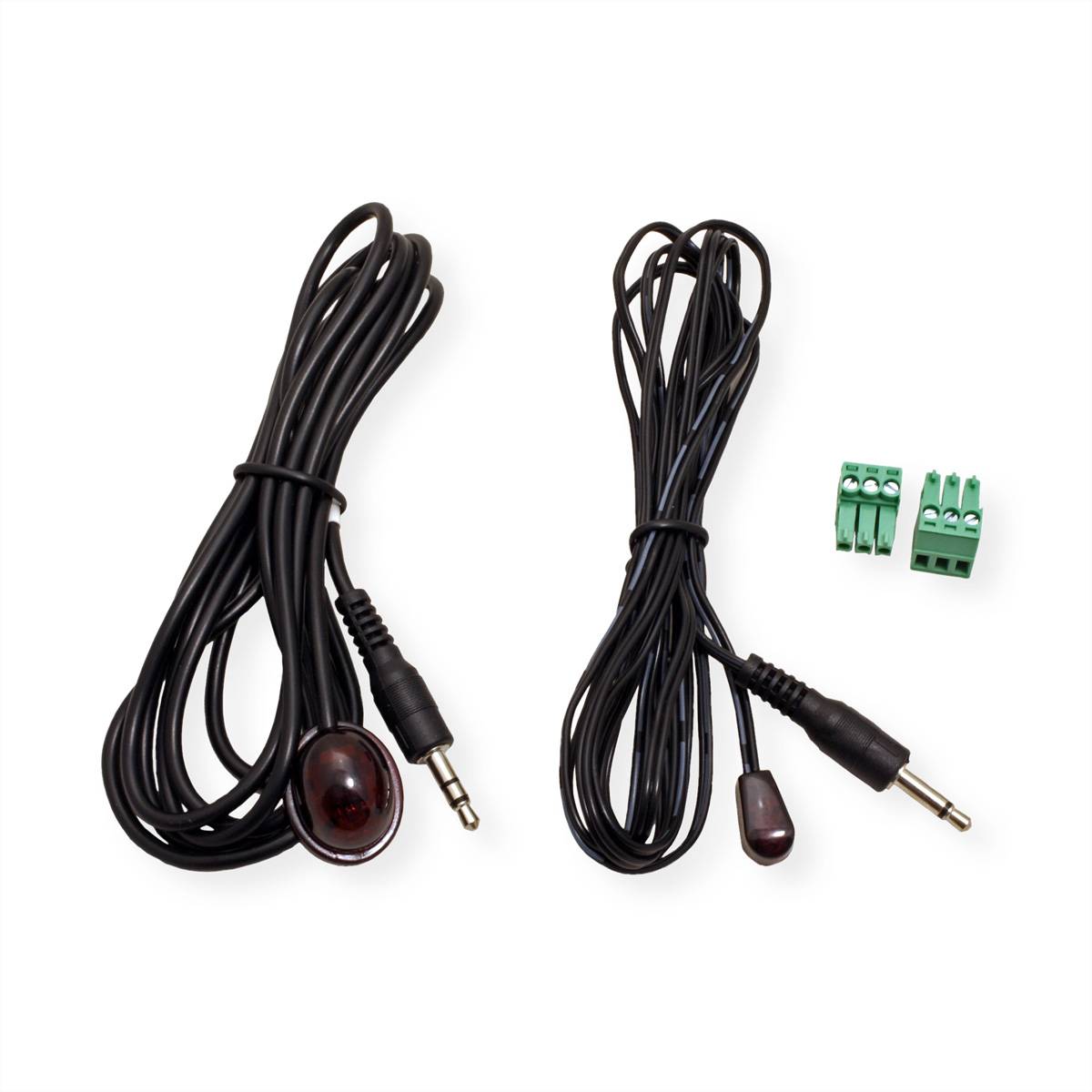

- 1x 2XRT-00004G IR transmitter
- 1x 2XRT-0003G-1 IR receiver
- 2x JCTN-3401-103G connection block
- 1x operating instructions
