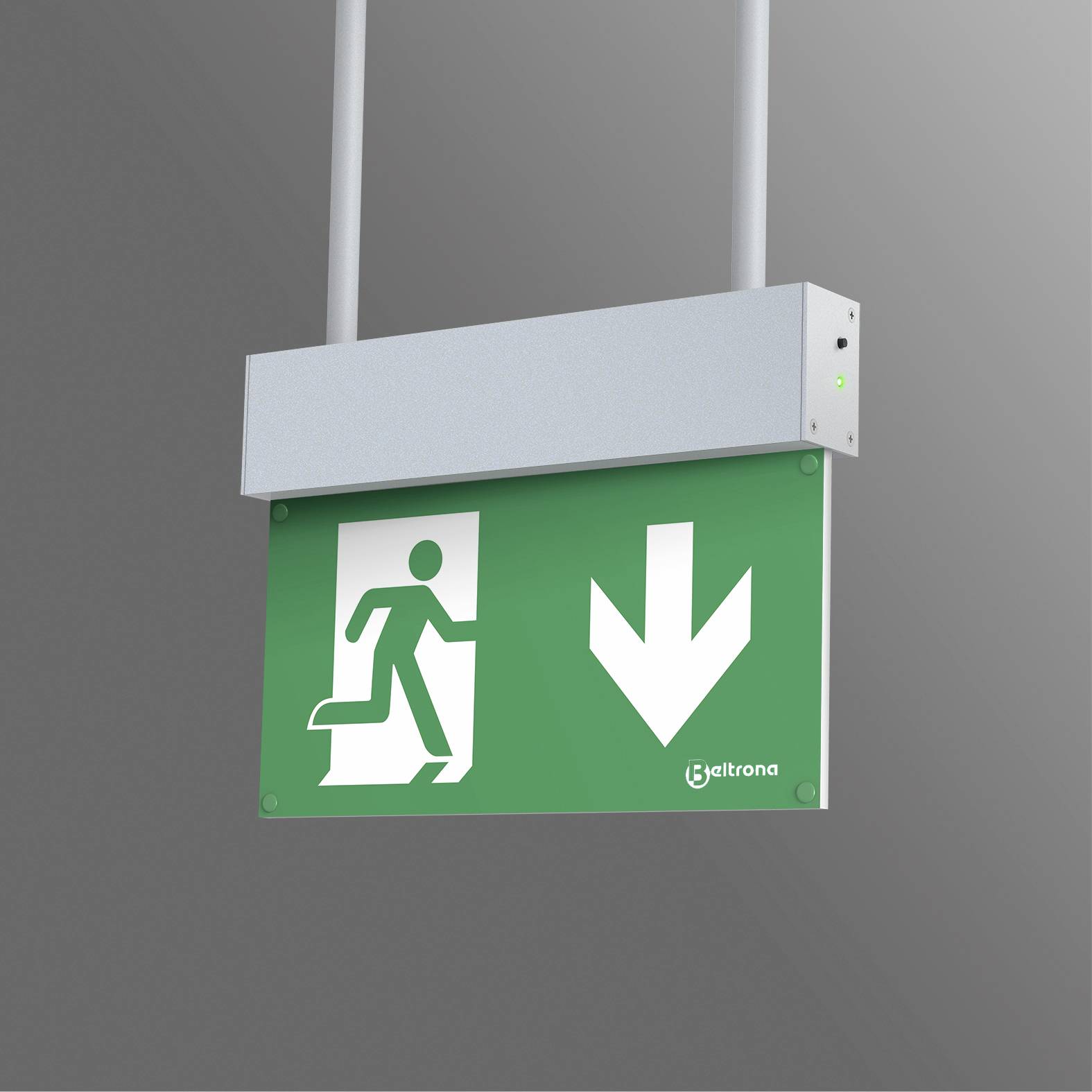

Beltrona MEXM82505ZB LED escape route lighting Suspended (pendant)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Highlights & Details
LED escape route lighting Beltrona M1627CS + M1627PL MEXM82505ZB (Suspended (pendant))
- Aluminium profileLED lighting
Technical specifications
- Colour temperature: 6500 KLuminance: 500 or 50 cd/m², selectable
- Dim
(W x H x D) 274 x 720 x 40 mm
- Product type
LED escape route lighting
- Main battery supply
Yes (optional)
- Backlit
Yes
- Operating voltage
230 V AC
- EN standard
EN 55015:2006+A1:2007+A2:2009
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2013
EN 60598-1
EN 60598-2-22
- Detection range
27 m
3.6 W
- Bulb type
LED (monochrome)
- Material
Aluminium
Polycarbonate (PC)
- Mounting type
Suspended (pendant)
- Width
274 mm
- Height
720 mm
- Depth
40 mm
IP40
Documents & Downloads
Datasheet
Datasheet 2620913 Beltrona MEXM82505ZB LED escape route lighting Suspended (pendant)
User & Safety Instructions
User & Safety Instructions 2620913 Beltrona MEXM82505ZB LED escape route lighting Suspended (pendant)
Description
Modern LED-disc lamps in timeless designThese LED-disc lamps for the identification of escape and rescue routes impress through their flexible application possibilities. Due to their noble design, they are suitable for use in representative facilities. The innovative sheet steel housing enables universal use of the lamp in ceiling or wall mounting and is the long-lasting and energy-saving alternative to emergency lamps with fluorescent tubes. Thanks to the integrated LEDs and the size of the emergency lighting, you can easily recognize them even at a distance of approx. 27 meters. They meet all the required standards at an excellent price-performance ratio. Our lamps are suitable for continuous operation at low power costs. With changeover device from continuous to standby parallel operation. Most of our emergency and escape lights are compatible with the common central monitoring systems.
