Buy Berger & Schröter Winch 31766 Traction (rolling)=3.15 kg Cordless remote control

'ATV winch with remote control and cables. Warning notices on the winch. Black rope on a drum.'

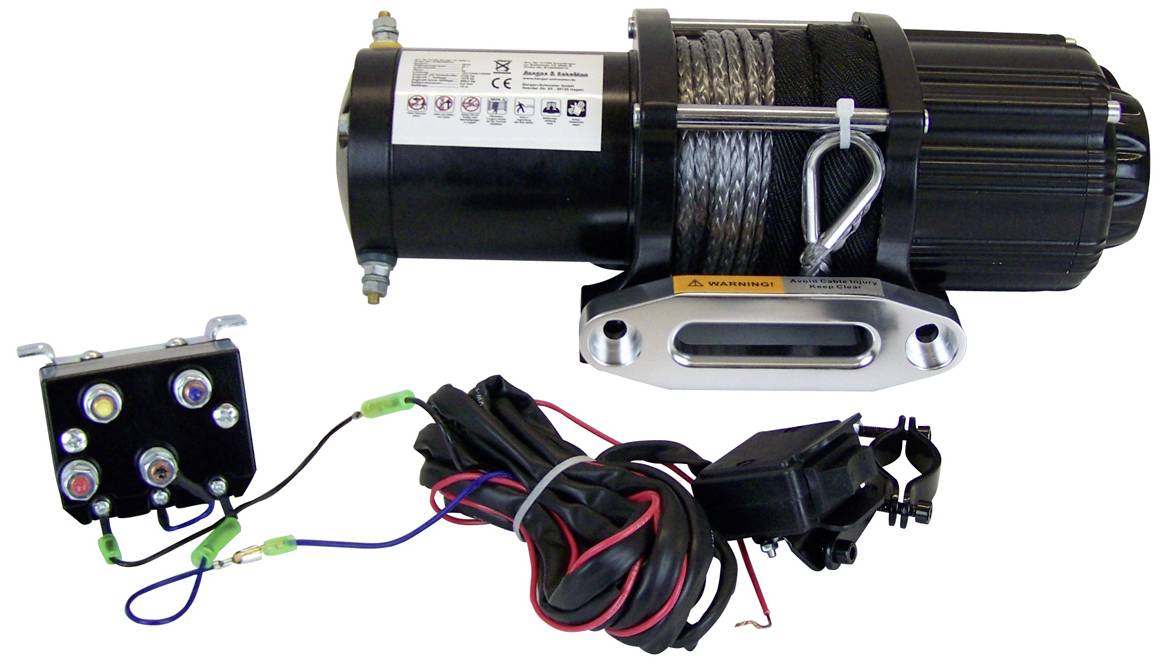

Electric winch with remote control and cable, suitable for off-road vehicles, showing drum with rope and control box.

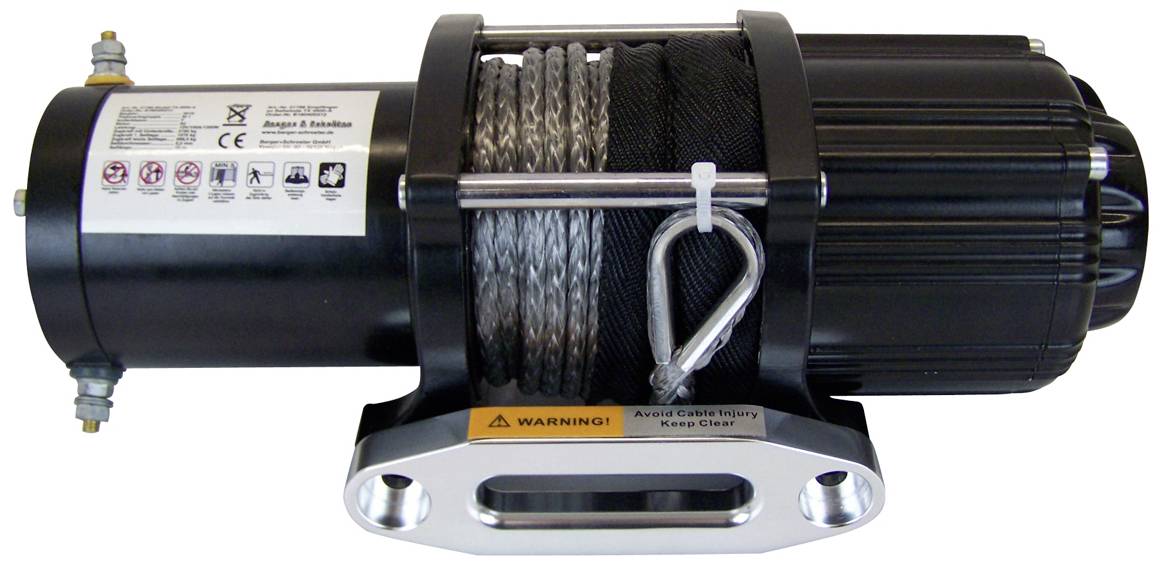

Berger & Schröter Winch 31766 Traction (rolling)=3.15 kg Cordless remote control-2

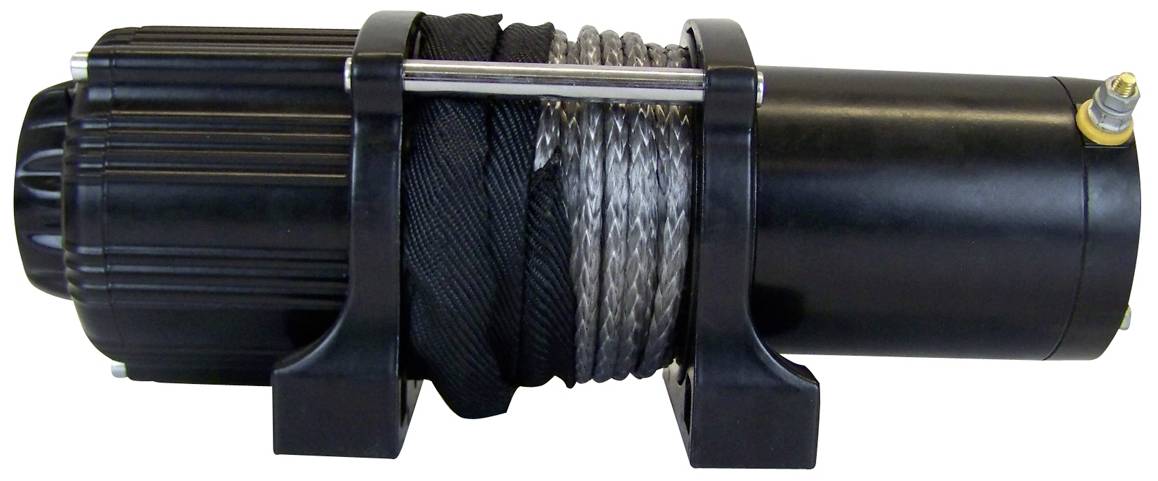

Electric winch with black casing, mounted on a stand. Ideal for off-road applications.

Black, round device with the inscription 'ENGAGED' and 'FREE'. Three screws are visible. Mechanical-technical component.

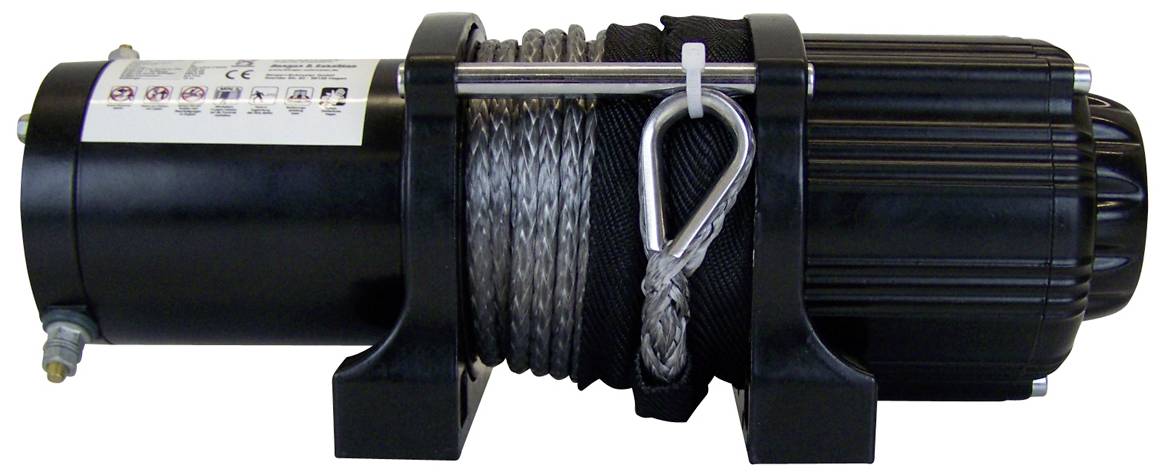

Electric winch with metal cable and hook, mounted on a bracket.

Four cables in black, yellow, red and blue, connected to a remote control device.

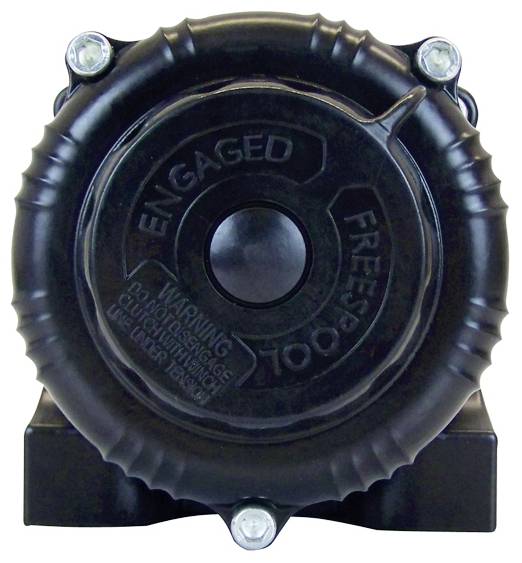

A black mechanical switch with 'ENGAGED' and 'FREE' markings. Screws are visible at the corners.

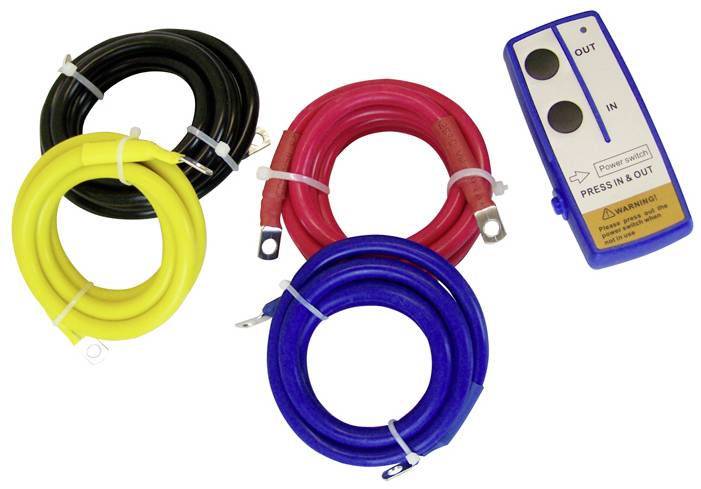

Four cables in black, yellow, red and blue with eyelets at the ends. Beside them a small blue remote control with buttons 'OUT' and 'IN'.

Electric winch with robust casing, steel cable and hook. Suitable for applications such as vehicle recovery and heavy loads.

'Circuit diagram of a winch system with radio remote control: Shows wiring between motor, magnetic switch, remote control and car battery.'

1/11

Fast track dispatch on Tue, 29 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 176.46 / piece)

€ 176.46

plus VAT.

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Winch 12V 3150 kg Synthetic rope

Synthetic rope 15 m
Radio remote control
Cable remote control
Tractive output 3150 kg rolling load

Technical specifications

Electronic forward and rewind, load consumption approx. 11 A at start-up to 100 A at full load, drum dimensions: 38 mm Diameter Width 73 mm

Product type: Winch

Fastening method: Fixed mount

Operating voltage: 12 V

Weight: 11 kg

Width: 33.5 cm

Height: 12 cm

Depth: 11.4 cm

Cable speed (with load): 2.4 m/min

Rope length: 15 m

Rope diameter: 5.5 mm

Features: Cordless remote control

Transmission ratio: 153:1

Traction (rolling): 3.15 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1665618 Berger & Schröter Winch 31766 Traction (rolling)=3.15 kg Cordless remote control

Description

12 V Motor rope winch with Synthetic rope, draft up to 3150 kg.
For car or particularly suitable for the cultivation to quad bikes, ATV (4x4) and commercial vehicles. Electronic and return via the cable remote control or remote control. Manual free run and automatic braking in case of power failure. Important: Never completely unroll the rope, only up to the red marking on the cable! 3-way planetary gear and Alu-Seilfenster. The train speed 680 kg - 2.4 m/min. With detailed assembly instructions.
Technical specifications:
Tension 3150 kg when using a pulley (not included)
Load consumption approx. 11 A at start-up to 100 A at full load
Gear ratio 153:1
Motor 12V DC 1.2 KW
Dimensions: 335 x 114 x 120 mm
Drum dimensions: 38 mm Diameter Width 73 mm
Synthetic rope 15 m long, 5.5 mm diameter.
Mounting plate: 124 x 76 mm.
Weight 11 kg.

This text is machine translated.
