Buy Berger & Schröter Winch 31778 Traction (rolling)=2.722 kg Cordless remote control

Electric winch with remote control and cable, mounted on a plate. Contains a red hook with black rope.

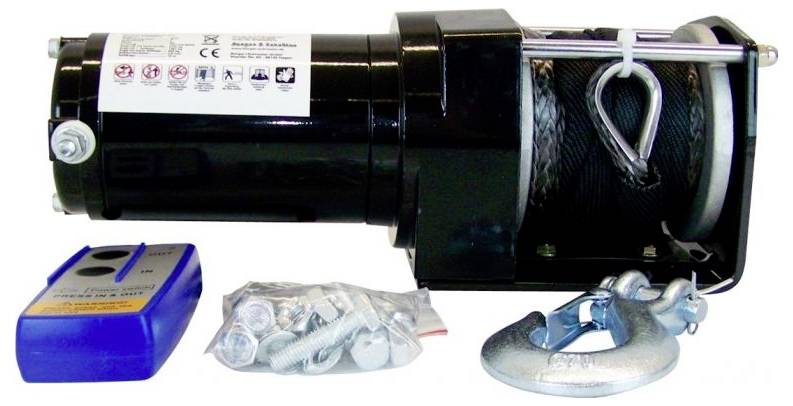

Electric winch kit with remote control, cable, hook, and mounting hardware shown on a white background.

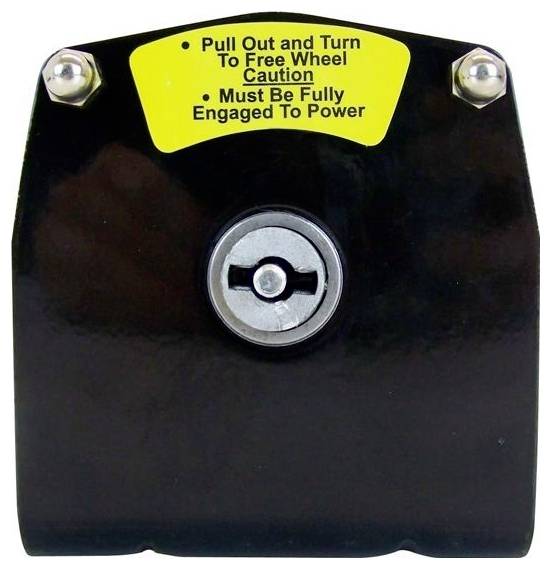

Black electrical switch panel with keyhole and yellow label reading 'Pull Out and Turn To Free Wheel' and 'Must Be Fully Engaged To Power'.

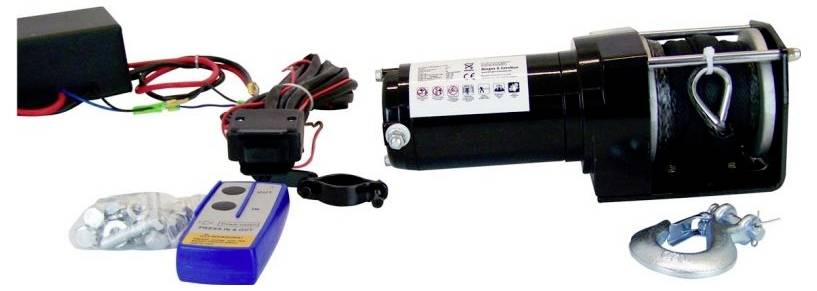

Electric winch kit with motor, wiring, switch controller, mounting hardware, and cable hook laid out on a white background.

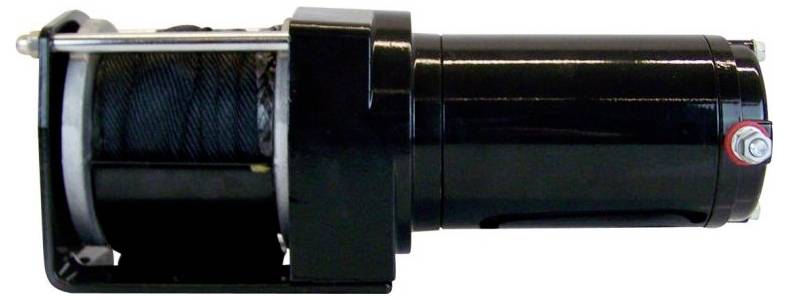

Black electric winch motor with cable drum and mounting bracket, shown on a white background.

1/5

Fast track dispatch on Tue, 29 Sep

39 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 113.44 / piece)

€ 134.45

-16 %

€ 113.44

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Winch 12V 2700 kg Synthetic rope

12 m Synthetic rope
Tractive output 2722 kg rolling load
Radio remote control
Cable remote control

Technical specifications

Electronic forward and rewind, Power: 900 W/75 A, drum dimensions: 31.5 mm Diameter Width 73 mm,

Product type: Winch

Fastening method: Fixed mount

Operating voltage: 12 V

Weight: 7.5 kg

Width: 30 cm

Height: 11 cm

Depth: 10.5 cm

Cable speed (with load): 2.4 m/min

Rope length: 12 m

Rope diameter: 4.8 mm

Features: Cordless remote control

Transmission ratio: 153:1

Traction (rolling): 2.722 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1665616 Berger & Schröter Winch 31778 Traction (rolling)=2.722 kg Cordless remote control

Conformity certificate

Conformity certificate 1665616 Berger & Schröter Winch 31778 Traction (rolling)=2.722 kg Cordless remote control

Description

12 V Motor rope winch with Synthetic rope, draft up to 2722 kg for car or particularly suitable for the cultivation to quad bikes, ATV (4x4) and commercial vehicles. Electronic and return via the cable remote control or remote control. Manual free run and automatic braking in case of power failure. Important: Never completely unroll the rope, only up to the red marking on the cable! 3-way planetary gear and Alu-Seilfenster. The train speed 680 kg - 2.4 m/min. With detailed assembly instructions.
Technical specifications:
Tension 2722 kg when using a pulley (not included)
Power: 900 W/75A
Gear ratio 153:1
Motor 12V DC 1.2 KW
Dimensions: 300 x 110 x 105 mm
Drum dimensions: 31.5 mm Diameter Width 73 mm
Synthetic rope 12 m long, 4.8 mm diameter.
Mounting plate: 124 x 76 mm.
Weight 8 kg.

This text is machine translated.
