Buy Degson DG240-2.54-03P-15-00AH-100 Spring-loaded terminal 0.51 mm² Number of pins 3 Orange 100 pc(s)

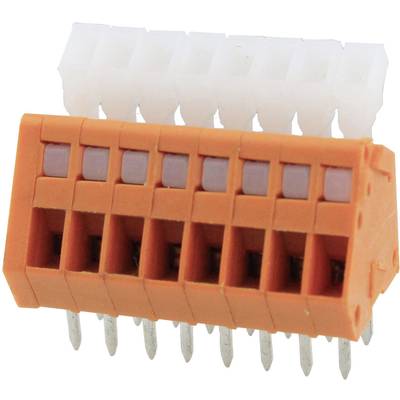

'Orange connector with white levers and silver pin contacts, suitable for electronic connections.'

Image similar

Product type

Spring-loaded terminal

2.54 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Dispatches on Wed, 4 Nov

Sales and shipping:

Conrad Electronic Terms & Conditions

Packaging units

Number (Package size 100 pc(s))

Set(s)

Total (€ 0.52 / piece)

€ 52.09

plus VAT.

Report legal concerns

Highlights & Details

Spring-loaded terminal

Our service for you

Technical specifications

Type: DG240-2.54-03P-15-00AH-100

Product type: Spring-loaded terminal

Features: + actuator

CS: 2.54 mm

No. of rows: 1

Pins per row: 3

Number of pins: 3

Series: DG240

Min. stripping length: 5 mm

Stripping length (max.): 6 mm

Connection: Spring-loaded terminal
Print

Nominal current: 4 A

Cross section (flexible) (min.): 0.08 mm²

Nominal current - rounded value: 4 A

Cross section (inflexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 0.51 mm²

Cross section (inflexible) (max.): 0.51 mm²

AWG (min.): 28

Connector orientation: At an angle (to the PCB)

AWG max.: 20

Contact material: Phosphorus bronze tin plated

Enclosure material: Polyamide 6.6

Factory colour: Orange

Wire protection: Yes

Actuation direction: At an angle (to the PCB)

Weight: 1.30 g

Manufacturer part #: DG240-2.54-03P-15-00AH-100

Industrial packaging: Yes

Content: 100 pc(s)

Nominal voltage: 150 V

Width: 7.62 mm

Height: 20.89 mm

Length: 12.35 mm

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Type

Pins per row

Connection

Number of pins

Connector orientation

Degson DG240-2.54-03P-15-00AH-100 Spring-loaded terminal 0.51 mm² Number of pins 3 Orange 100 pc(s)

Item no:1595192

This article

4 A

DG240-2.54-03P-15-00AH-100

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG240-2.54-05P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 5 Orange 1 pc(s)

Item no:1327272

4 A

DG240-2.54-05P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG240-2.54-06P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 6 Orange 1 pc(s)

Item no:1327273

4 A

DG240-2.54-06P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG240-2.54-10P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 10 Orange 1 pc(s)

Item no:1327274

4 A

DG240-2.54-10P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG243-5.0-02P-11-00AH-1 Spring-loaded terminal 3.31 mm² Number of pins 2 Grey 1 pc(s)

Item no:1327278

15 A

DG243-5.0-02P-11-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

5 mm

Degson DG243-5.0-03P-11-00AH-1 Spring-loaded terminal 3.31 mm² Number of pins 3 Grey 1 pc(s)

Item no:1327322

15 A

DG243-5.0-03P-11-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

5 mm

Degson DG240-2.54-03P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 3 Orange 1 pc(s)

Item no:1327376

4 A

DG240-2.54-03P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG240-2.54-08P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 8 Orange 1 pc(s)

Item no:1327377

4 A

DG240-2.54-08P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG240-2.54-04P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 4 Orange 1 pc(s)

Item no:1327390

4 A

DG240-2.54-04P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Degson DG240-2.54-02P-15-00AH-1 Spring-loaded terminal 0.51 mm² Number of pins 2 Orange 1 pc(s)

Item no:1327404

4 A

DG240-2.54-02P-15-00AH

Spring-loaded terminalPrint

At an angle (to the PCB)

2.54 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1595192 Degson DG240-2.54-03P-15-00AH-100 Spring-loaded terminal 0.51 mm² Number of pins 3 Orange 100 pc(s)
