Disconnect terminal block URTK/SS BU 3024407 Phoenix Contact

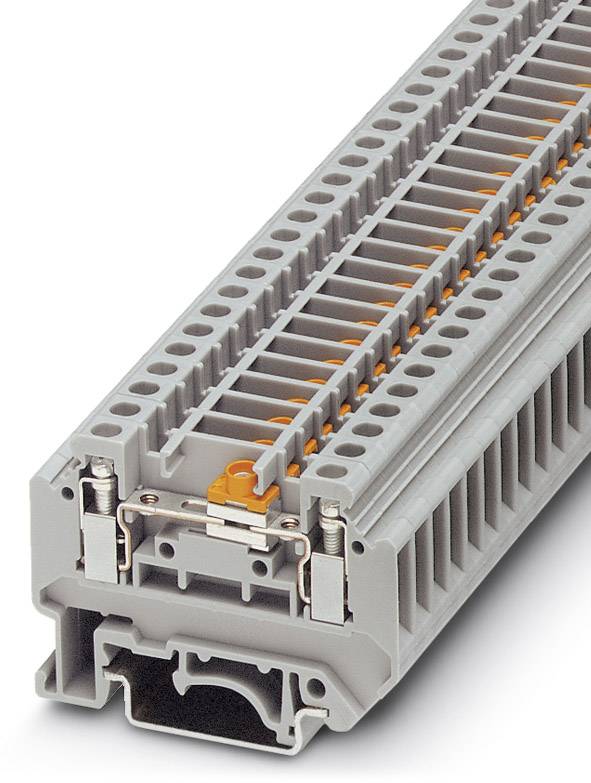

A grey terminal block with multiple connection points and orange activation elements, suitable for electrical connections.
Image similar
Packaging type
Piece
Product type
N terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 3 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 9.30 / piece)
€ 465.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

N terminal

Connection

Screws

Cross section (flexible) (min.)

0.2 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.2 mm²

Cross section (inflexible) (max.)

4 mm²

AWG (min.)

24

AWG max.

12

Clamp width

6.2 mm

No. of rows

1

Number of pins

2

Factory colour

Blue

Nominal current

26 A

Nominal current - rounded value

26 A

Nominal voltage

400 V

Stripping length (max.)

7 mm

Manufacturer part #

3024407

Content

50 pc(s)

Industrial packaging

Yes

Type

URTK/SS BU

Dim

(L x W x H) 56.5 x 6.2 x 40 mm

Width

6.2 mm

Height

40 mm

Length

56.5 mm

Flammability rating

V0

Connector colour

Blue

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 565448 Disconnect terminal block URTK/SS BU 3024407 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565448 Disconnect terminal block URTK/SS BU 3024407 Phoenix Contact

Description

Disconnect terminal block, Connection method: Screw connection, Cross section: 0.2 mm² -4 mm² , AWG: 24 - 12, Width: 6.2 mm, Mounting type: NS 35/7,5, NS 35/15, NS 32, Color: blue

Hints

Special order, no right of withdrawal.
