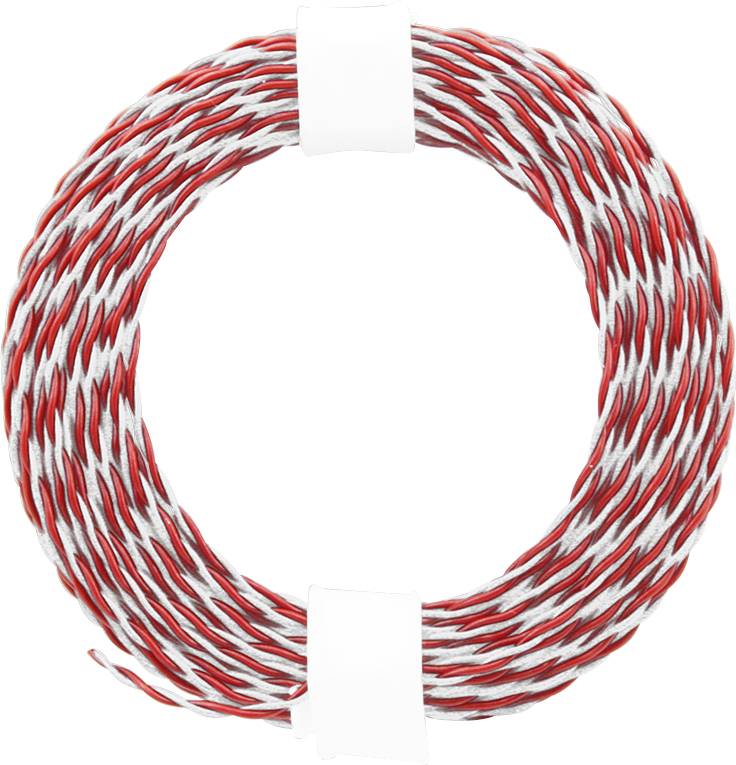

Donau Elektronik 210-05 Strand 2 x 0.04 mm² + 2 x 0.04 mm² Red, White 10 m
EAN:
Part number:
Item no:
Product type
Strand
No. of leads
2 x
Cross section (each core)
0.04 mm²
No. of leads (part 2)
2 x
Cross section (each core) (part 2)
0.04 mm²
Quantity (Set(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 0.92
€ 9.24
3
1 M = € 0.87
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 0.92)
€ 9.24
plus VAT.
14-day return policy included
Highlights & Details
Copper wire
Technical specifications
- Product type
Strand
- No. of leads
2 x
- Cross section (each core)
0.04 mm²
- No. of leads (part 2)
2 x
- Cross section (each core) (part 2)
0.04 mm²
- Cross section
2 x 0.04 mm² + 2 x 0.04 mm²
- Cable features
Flat
Flexible
- Factory colour
Red
White
- Content
10 m
- Nominal voltage
500 V
- Test voltage
1200 V
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Manufacturer part #
210-05
- Insulation material
PVC
- Core layout
2 x 5 x 0.1
- Core layout
5 x 0.1 mm
- Material (details)
Copper
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
85 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
85 °C
- Max. length sold by the metre
10 m
- Type
210-05
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1437321 Donau Elektronik 210-05 Strand 2 x 0.04 mm² + 2 x 0.04 mm² Red, White 10 m
Description
2-wire - red-white - 2x 0.04 mm ² (5 x 0.1 mm) - plastic insulated - 10 meters - very well suited for connecting LEDs.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 Meter Ring
